  #13
Old 05-07-2012, 05:42 PM
Member

Join Date: Apr 2012
Posts: 86
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 939
Turmoil is on a distinguished road
Re: Update on MOPAR CAI for V6 Pentastar

Boba
How about the tourqe ? Is it much better ?
__________________

__________________
Reply With Quote
  #14
Old 05-07-2012, 05:57 PM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,850
Thanks: 833
Thanked 824 Times in 635 Posts
Rep Power: 7717434
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: Update on MOPAR CAI for V6 Pentastar

Quote:
Originally Posted by Boba10320 View Post
Got in my AFE CAI today and installed it. Installation was OK...instructions were a little lacking but I figured it out...at least I hope so. Seems to run well.

Attachment 13776Attachment 13777Attachment 13778

that looks nice
__________________

__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2013 JKU 10th anniversary-white
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #15
Old 05-07-2012, 09:09 PM
JeepMonster's Avatar
Member
My Jeep: 2012 3.6L WK2

Join Date: Apr 2012
Location: Fairfax, VA
Posts: 316
Thanks: 4
Thanked 0 Times in 0 Posts
Rep Power: 163426
JeepMonster has a reputation beyond reputeJeepMonster has a reputation beyond reputeJeepMonster has a reputation beyond reputeJeepMonster has a reputation beyond reputeJeepMonster has a reputation beyond reputeJeepMonster has a reputation beyond reputeJeepMonster has a reputation beyond reputeJeepMonster has a reputation beyond reputeJeepMonster has a reputation beyond reputeJeepMonster has a reputation beyond reputeJeepMonster has a reputation beyond repute
Re: Update on MOPAR CAI for V6 Pentastar

Have you noticed any increase in sound or power with the AFE CAI?

Quote:
Originally Posted by Boba10320 View Post
Got in my AFE CAI today and installed it. Installation was OK...instructions were a little lacking but I figured it out...at least I hope so. Seems to run well.

Attachment 13776Attachment 13777Attachment 13778
__________________
2012 WK2 4x4 Laredo X (QT1) in Maximum Steel w/ Panoramic Sunroof and 430N Nav
Reply With Quote
  #16
Old 05-08-2012, 09:37 PM
padgett's Avatar
Premium Member

Join Date: Feb 2012
Location: Orlando
Posts: 1,497
Thanks: 0
Thanked 20 Times in 17 Posts
Rep Power: 80066
padgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond repute
Re: Update on MOPAR CAI for V6 Pentastar

Am seeing quite high IAT on mine (over 120F on 80F day) but then the "hose" has gotten quite complicated over what Allpar showed for the 2011:

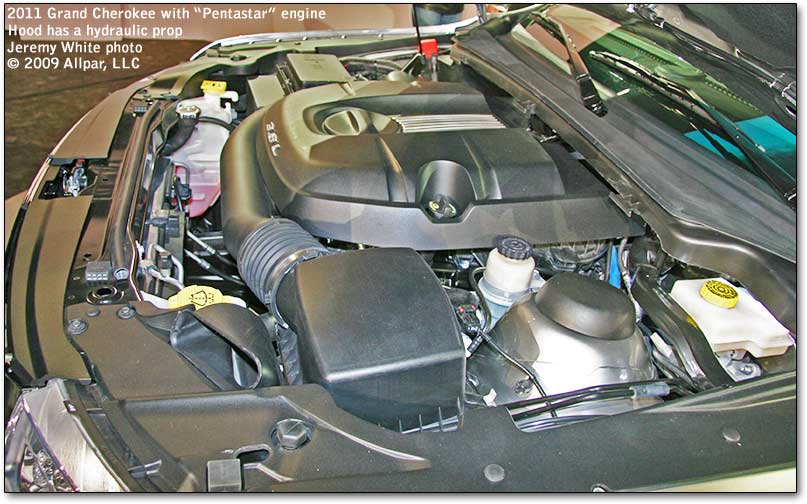

2011 Intake from pentastrs web site.

In counterpoint, my 2012 seems to have acquired several "chambers" right in hot air areas.


2012 Pentastar

Will begin by using a plain 3" tube from air cleaner to throttle body without the furnaces and will see if any difference. For stage 2 I may wrap the tube with exhaust tape.

My opinion is that 3" may be overkill for a 222 cid 6 but the TB is 74 mm ( 2.9") so will use that & monitor IMAP.

Do think the stock air cleaner and snorkle is adequate (same used for Hemi) so will see what just replacing the hose does.

Will mention that just replacing parts without recording IMAP and IAT values before and after will not tell you much.
Reply With Quote
  #17
Old 05-09-2012, 08:31 AM
Boba10320's Avatar
Member
My Jeep: 2012 3.6L WK2

Join Date: Jan 2012
Location: Wake Forest NC
Posts: 74
Thanks: 10
Thanked 3 Times in 3 Posts
Rep Power: 989
Boba10320 is on a distinguished road
Send a message via AIM to Boba10320
Re: Update on MOPAR CAI for V6 Pentastar

Quote:
Originally Posted by jeepmonster View Post
Have you noticed any increase in sound or power with the AFE CAI?
I have noticed definite increase in sound......not sure on the power. It sounds like it would have more power but hard to tell if it really does or not. Waiting to see if it improves MPG.
__________________
Bob

[SIGPIC][/SIGPIC]
Reply With Quote
  #18
Old 05-09-2012, 08:33 AM
Boba10320's Avatar
Member
My Jeep: 2012 3.6L WK2

Join Date: Jan 2012
Location: Wake Forest NC
Posts: 74
Thanks: 10
Thanked 3 Times in 3 Posts
Rep Power: 989
Boba10320 is on a distinguished road
Send a message via AIM to Boba10320
Re: Update on MOPAR CAI for V6 Pentastar

Quote:
Originally Posted by Turmoil View Post
Boba
How about the tourqe ? Is it much better ?
Not really sure....I think it is a little better but that could be because it sounds so much better.
__________________
Bob

[SIGPIC][/SIGPIC]
Reply With Quote
  #19
Old 05-09-2012, 09:12 AM
padgett's Avatar
Premium Member

Join Date: Feb 2012
Location: Orlando
Posts: 1,497
Thanks: 0
Thanked 20 Times in 17 Posts
Rep Power: 80066
padgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond repute
Re: Update on MOPAR CAI for V6 Pentastar

Just some quick noodling (and boring math in Excel) but if the IAT could be reduced by 60F (from 150F to 90F) then you would see about a 9% increase in compressed air density in the chamber and a concurrent increase in fuel trim (richer) to compensate.

More likely would be a 20F drop from 120 to 100 & a 3% change. That plus a 15F reduction in coolant temp might give a 5% increase in charge density. I would not expect any more.

Things to monitor before and after are IAT, coolant temp, IMAP, short and long term fuel trim, throttle position, and load values for steady state. Really would need a dyno for accuracy but all are available on the OBD-II feed (all that is needed is a notebook/netbook/laptop and a $30 thingie from Amazon).

The HEMI CAI thread has a lot of good info but for me, I want to know the IAT as close to the throttle body as possible.
Reply With Quote
  #20
Old 05-09-2012, 05:49 PM
xJoshxx's Avatar
Premium Member
My Jeep: 2012 6.4L WK2

Join Date: Mar 2011
Location: Burlington,KY
Posts: 805
Thanks: 27
Thanked 20 Times in 20 Posts
Rep Power: 72451
xJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond repute
Re: Update on MOPAR CAI for V6 Pentastar

you guy's haven't seen high IAT temps till you have checked a 4.0L WJ, 80 degree day with stock box. was 180-192F the Header literally sits underneath the intake.
__________________
Reply With Quote
  #21
Old 05-09-2012, 10:03 PM
padgett's Avatar
Premium Member

Join Date: Feb 2012
Location: Orlando
Posts: 1,497
Thanks: 0
Thanked 20 Times in 17 Posts
Rep Power: 80066
padgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond repute
Re: Update on MOPAR CAI for V6 Pentastar

I saw 180F IAT reading after a hot soak but came down to about 125F on the road.

Have got a pilot assembled but when spread to avoid the cam cover bulge, the top cover (with 3.6 VVT) does not fit. Stock "hose" has a major dent there to provide clearance. Not an issue since is just for testing.

Has anyone ever seen a smooth "hose" like the one in ithe Allpar 2009 photo ? Idf so does it have the furnace by the throttle body (cannot tell from photo).
Reply With Quote
  #22
Old 07-09-2012, 08:03 AM
New Member

Join Date: Jan 2011
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
cain5000 is on a distinguished road
Re: Update on MOPAR CAI for V6 Pentastar

The Mopar (AEM) CAI for the Pentastar passed California emissions in Dec 2011. I don't understand why it hasn't made it to market by now.

http://arb.ca.gov/msprog/aftermkt/de...o/D-265-37.pdf
__________________
Reply With Quote
  #23
Old 07-10-2012, 11:34 AM
Premium Member

Join Date: Apr 2012
Posts: 99
Thanks: 2
Thanked 1 Time in 1 Post
Rep Power: 942
mzimand is on a distinguished road
Re: Update on MOPAR CAI for V6 Pentastar

How would one check their IAT on the 2012 Grand Cherokee? Is it displayed in the EVIC?
__________________
Reply With Quote
  #24
Old 07-22-2012, 03:46 PM
padgett's Avatar
Premium Member

Join Date: Feb 2012
Location: Orlando
Posts: 1,497
Thanks: 0
Thanked 20 Times in 17 Posts
Rep Power: 80066
padgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond repute
Re: Update on MOPAR CAI for V6 Pentastar

You need an OBD-II reader. At the moment I am using a 7" tablet mounted under the a/c control but this picture gives you an idea what can be displayed.

My IAT normally runs between 20F and 40F above the ambient air temperature and the computer is all in by 100F so that is where I want to lock it on a 90+F day.

__________________
