Re: jlewissystem's Build Thread

Is there even a more fun part of this "MOAR FUN PART"? Yes - relays, fuse and wire management....

First up - fuse block! For whatever dumb-luck reason....both of the nuts stripped on the main battery leads on the fuse block, when test fitting. I had to drill them out and use similar machine screws/nuts to replace. I found a neat little spot next to the OEM fuse blocks and drilled a screw into the bottom right mounting hole, on the fuse block. This is more of a "finished" pic(with cover on), but you get the idea...


Knowing i needed 5 relays, i tried to think of a decent place to display, access and manage them. I picked the spot next to the battery. behind the driver's side headlight:

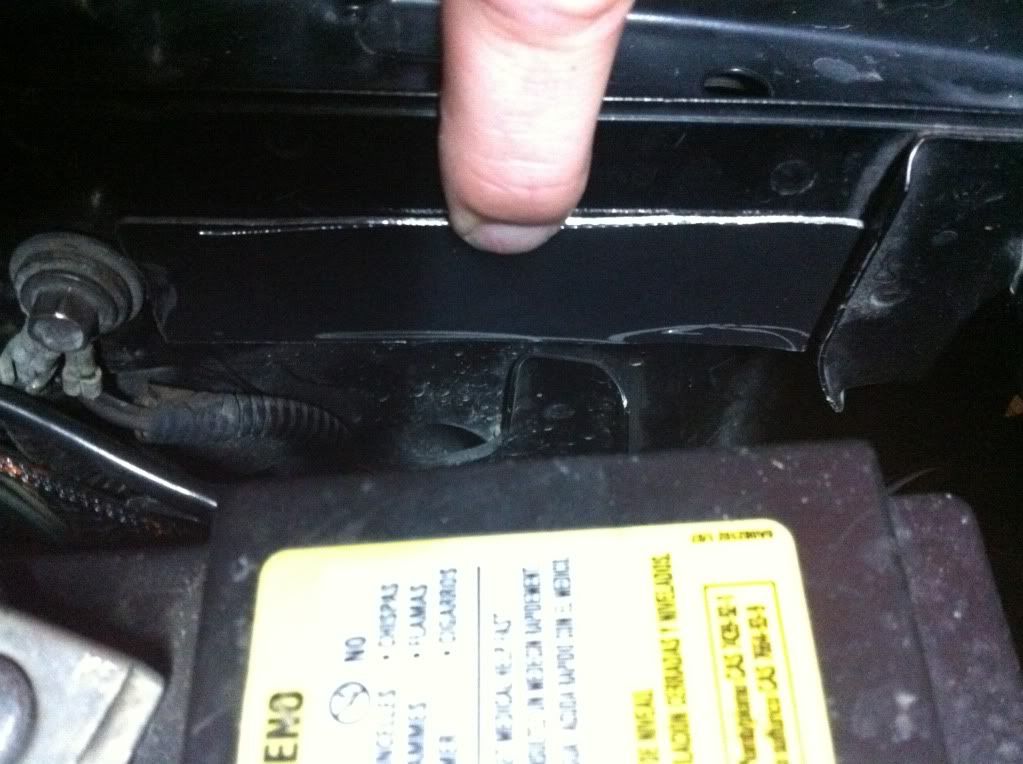

I cut some metal off of an old FIPK heat shield to use as a "relay mounting panel":


I cleaned up the edges, drilled mounting holes, touched up with bed-liner and attached the relays:

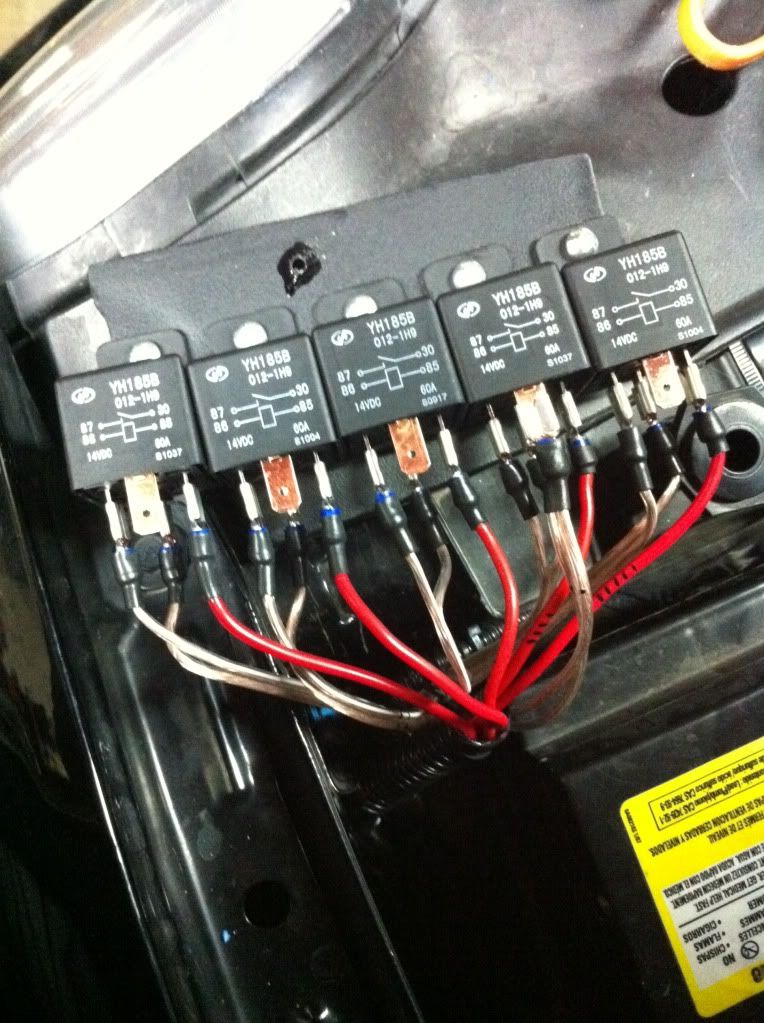

Sweet! It even kind of looked 1/2 good I was happy with it....now to get some wires on those things......here are the switch wires(red) and the power wires from the fuse block. Again, everything is labeled for different amperage(fuses) and devices....only need to do devices...


That being said....i need MOAR devices.....on to light mounting and wiring!
Knowing i wanted to have 4 devices up top, i needed 4 sets of wires. I've seen people take their wires through the weather stripping, but I needed some consideration:
I have 2 devices that will require less watts - D2's and XMAS lights - so i can use less gauge - 18awg
I have 2 devices that will use 55W each, so 110W for each wire - 16awg

Putting these together makes for a hefty run, so i split them up. First i ran both sets to the same place under the hood to the driver corner:

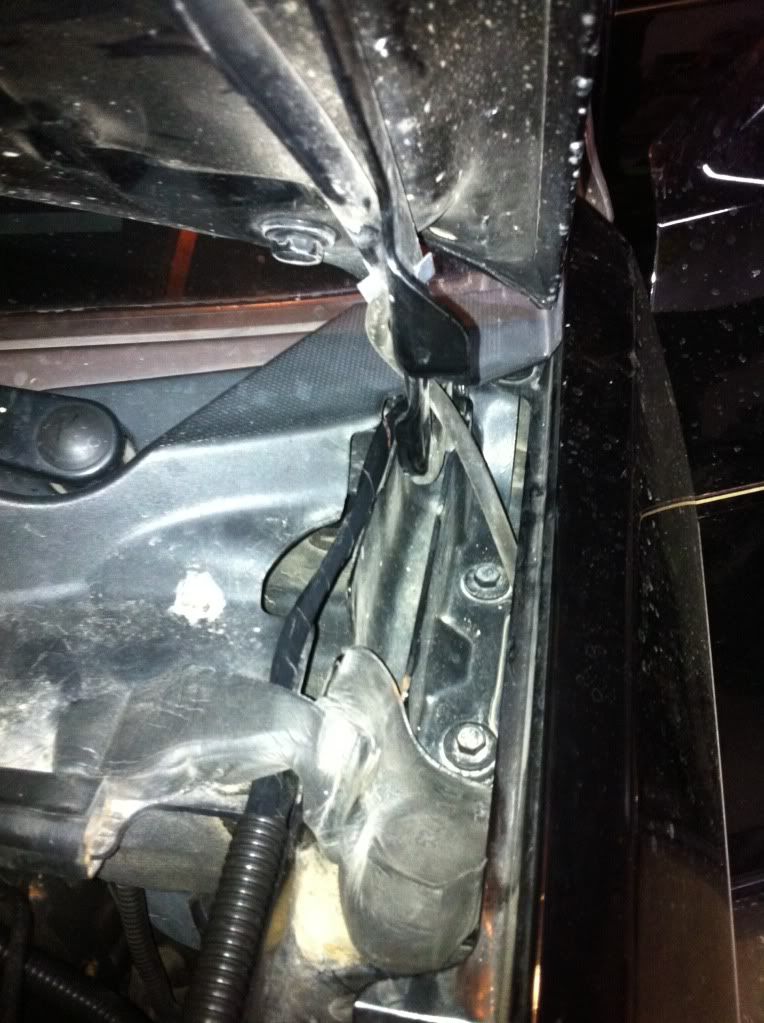

This is where they split. i took the 18awg to the left, under the "cabin filter cover" and ran it up UNDER the UNDERNEATH of the weather stripping. i see other guys putting it on the top portion of the weather stripping, but i didnt want any chance of future leaks, so i went for "the under"

I would run this the full length of both doors and come up through the factory hole int the corner:

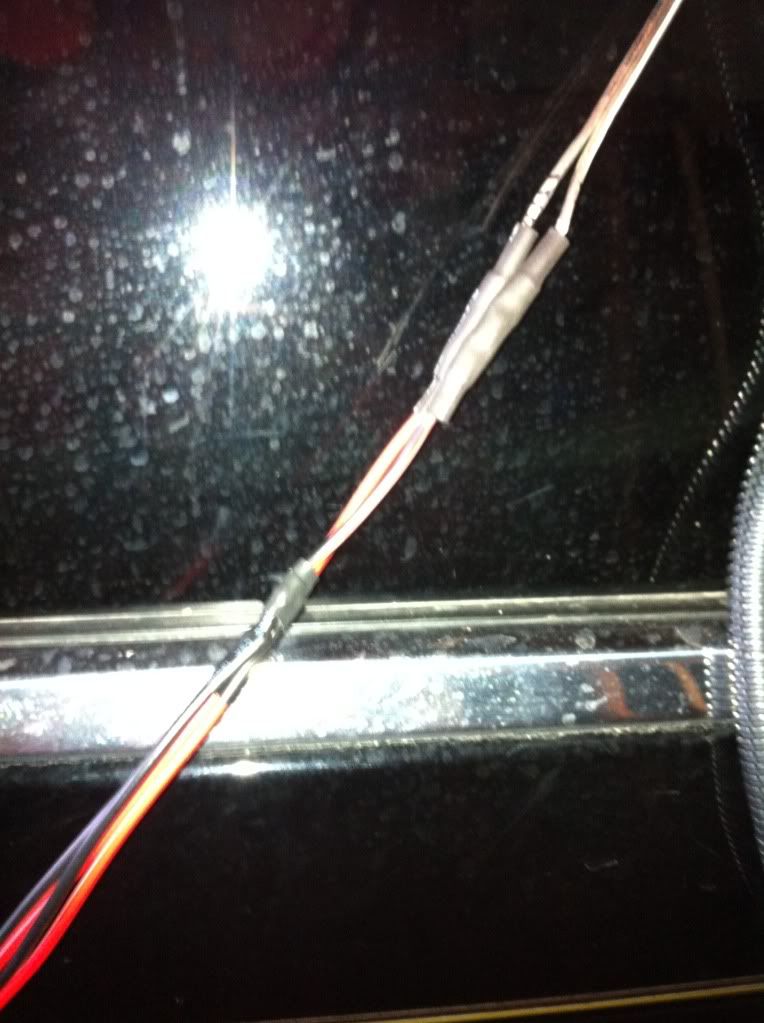

I grabbed these wires, measured and tapped into the D2 harness:

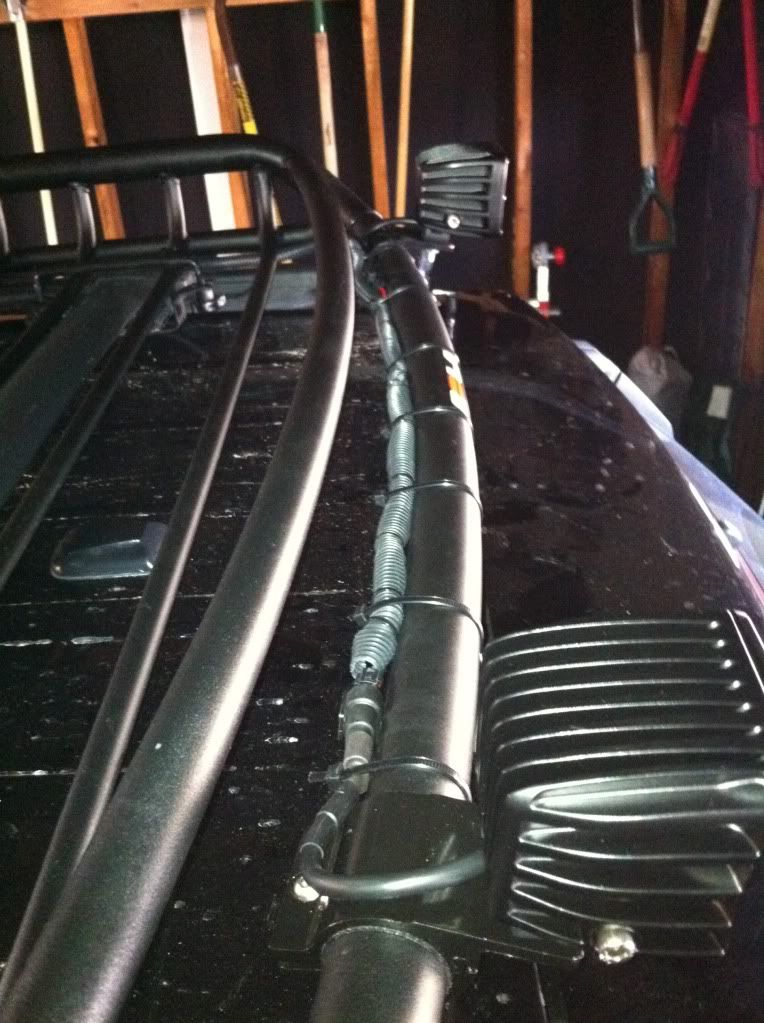

Ran them to the lights, put on conduit/electric tape and ziptied it up:



Pay no attention to the extra piece of conduit laying up there....looks horrible..



I just left the extra wire lead up in the conduit to attach at a later time....i did the same thing on the other side....exactly.....only difference is that i had to check for CLEARANCE!!!

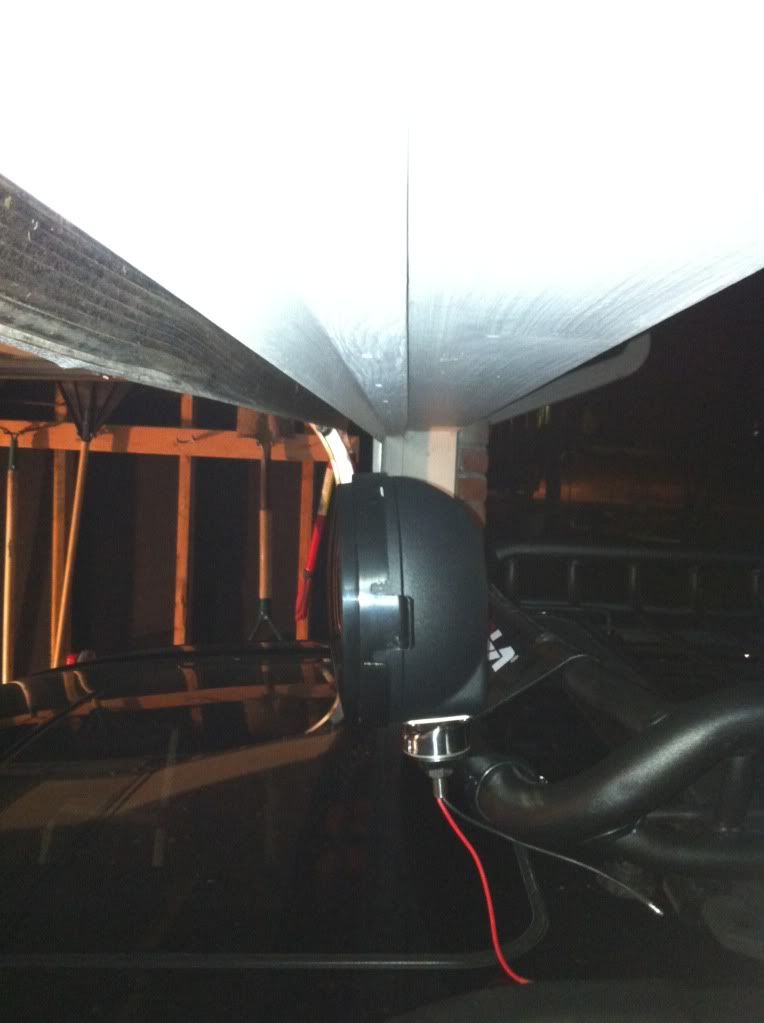

LIKE A GLOVE!


Now that we know they fit, i can actually wire them up



Back to the HOOD!
All devices are now present and accounted for - all positive wires are run to the relays and all grounds go back to the fuse block:

Finalized the relay panel with electric tape, even painted the screws, mounted (screwed into (just under) pinch weld) and labeled relays accordingly (matching the fuse block).

__________________

__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
The Following User Says Thank You to jlewissystem For This Useful Post:
  #14
Old 01-18-2012, 01:31 PM
JeepCoop's Avatar
Senior Member
My Jeep: 2007 5.7L WK

Join Date: Oct 2010
Location: Los Angeles, CA
Posts: 6,745
Thanks: 360
Thanked 74 Times in 71 Posts
Rep Power: 1892518
JeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond repute
MOAR LYTES!!! Love it. This thread is awesome.
__________________

__________________
[SIGPIC][/SIGPIC]
|Build Thread

Reply With Quote
  #15
Old 01-18-2012, 01:43 PM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,465
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278238
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

Finished organizing and ziptying everything together (testing along the way) and hooked up the battery leads.....nice N pretty I'm REALLY happy with how all this turned out.




OH MAN am I excited - MOAR LYTES at the power of my fingertips

Rock lights:


Front upper HID's (roof lights)


With lows and fogs and rock lights:


My lows are XenonDepot's 5000 kit - pure white - i love them!
My fogs are some eBay HID's i bought early - i actually dont mind them....they're a little more blue, which i prefer to yellow for fog, so it works out.
My highs are OEM!!!! WTF!??!?! Coop, where are these new HIGH's? They'll be coming shortly....cant have any "yellow'ish" light in there.....GOD!!

I'll get some better light output and general light pics, but I'm VERY impressed with all roof lights! The EagleEyes shine out to 500yds!!! I can see tree detail a 340yds, which impressed me....and I'm putting 2 MOAR of these suckers on it - i think we can insert a BOOYA here. It's not a Rigid 30, but i def like them. There's always room to add
This pic is concentrated at about 30-40yds:

BRIGHT!!!!

This one is 340yds. This pic doesnt do it justice....in the pics, you can barely see the trees, but in person you can. I also didnt have them adjusted.....i pointed them up a little more to get the sweet spot at about 200-330yds, to view nature of course


With fogs on:


The rear D2's are AWESOME! It's an instant (LED) pure WHITE light, which goes over 100yds. The below pic is ranged out to 84yds. Again, doesnt do it justice:


Another one in the neighborhood:



More pics to come for sure!!! Enjoy and support MOAR LYTES!!!

Up next for me is:
*2 MOAR LYTES
*SRT Pedals (Spring)
*Tinted tails (spring) possible new LED
*Red header wrap for intake (spring)
*New filters for intake
*Extended rear bumpstops (purchased)
*Maybe 1" spacers on lift....
*FlyingRyan PCM tune(SOON)

I'm currently rocking the canned 91 with FlyinRyan's TCM and throttle body

A few of the latest shots:


__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #16
Old 01-20-2012, 12:24 AM
Jvenrick's Avatar
Member
My Jeep: 2007 4.7L WK

Join Date: Mar 2011
Location: Denver, CO.
Posts: 240
Thanks: 0
Thanked 13 Times in 13 Posts
Rep Power: 9362
Jvenrick has a reputation beyond reputeJvenrick has a reputation beyond reputeJvenrick has a reputation beyond reputeJvenrick has a reputation beyond reputeJvenrick has a reputation beyond reputeJvenrick has a reputation beyond reputeJvenrick has a reputation beyond reputeJvenrick has a reputation beyond reputeJvenrick has a reputation beyond reputeJvenrick has a reputation beyond reputeJvenrick has a reputation beyond repute
Re: jlewissystem's Build Thread

Wow dude looks great. Very clean set up you got there. Great job!!!
__________________
2007 Jeep Grand Cherokee: Laredo, Rocky Mountain Edition, 4.7L V8, QTII trans, green, tow hooks, Rough Country 2in lift, 1in wheel spacers up front, 265/70-17 Cooper Discoverer AT3's, Rola Roof Basket W/Commander extension, F-150 Monroe Load Levelers, Putco Window Air Shades.

Build Tread: See it come together!!

http://www.jeepgarage.org/f14/jvenricks-build-thread-33455.html
Reply With Quote
  #17
Old 01-20-2012, 10:09 AM
jp07blkE85's Avatar
Premium Member
My Jeep: 2013 3.6L JK

Join Date: Mar 2011
Location: Durham, NC
Posts: 192
Thanks: 24
Thanked 7 Times in 5 Posts
Rep Power: 99359
jp07blkE85 has a reputation beyond reputejp07blkE85 has a reputation beyond reputejp07blkE85 has a reputation beyond reputejp07blkE85 has a reputation beyond reputejp07blkE85 has a reputation beyond reputejp07blkE85 has a reputation beyond reputejp07blkE85 has a reputation beyond reputejp07blkE85 has a reputation beyond reputejp07blkE85 has a reputation beyond reputejp07blkE85 has a reputation beyond reputejp07blkE85 has a reputation beyond repute
Re: jlewissystem's Build Thread

Awesome! and such a clean install too!
__________________
2013 JKU sport true blue: heated seats, 315s, Fuel Trophy wheels, Teraflex 2.5 spring lift+ .5 rear spacer, brake lines, exhaust, track bar, tire carrier, Fox resevoir shocks, Evo c gussets, Smittybilt src side steps, Rigid A pillar spot, SPOD, Trucklite headlights.
RIP black: 07WKlimitedE85, 05WKlimitedHEMI, 03WJOverlandHO, 00WJLaredoX, 97TJ
WK parts for sale: http://www.jeepgarage.org/f12/wk-par...tml#post749038
Reply With Quote
  #18
Old 01-20-2012, 11:15 AM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,465
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278238
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

Quote:
Originally Posted by JeepCoop View Post
MOAR LYTES!!! Love it. This thread is awesome.
Thanks Coop! You're the cause of 1/2 of this , but thanks

Quote:
Originally Posted by Jvenrick View Post
Wow dude looks great. Very clean set up you got there. Great job!!!
Thank you sir!
Quote:
Originally Posted by jp07blkE85 View Post
Awesome! and such a clean install too!
And you you too sir!
__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #19
Old 01-22-2012, 11:45 AM
JeepCoop's Avatar
Senior Member
My Jeep: 2007 5.7L WK

Join Date: Oct 2010
Location: Los Angeles, CA
Posts: 6,745
Thanks: 360
Thanked 74 Times in 71 Posts
Rep Power: 1892518
JeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond repute
Haha rock on!!
__________________
[SIGPIC][/SIGPIC]
|Build Thread

Reply With Quote
  #20
Old 01-23-2012, 08:39 AM
*BabyGirlJJ*'s Avatar
Love me or Hate me! Either or your thinking of me!

My Jeep: 2010 3.7L WK

Join Date: Jan 2011
Location: St. Charles, MO
Posts: 1,506
Thanks: 49
Thanked 25 Times in 25 Posts
Rep Power: 2713443
*BabyGirlJJ* has a reputation beyond repute*BabyGirlJJ* has a reputation beyond repute*BabyGirlJJ* has a reputation beyond repute*BabyGirlJJ* has a reputation beyond repute*BabyGirlJJ* has a reputation beyond repute*BabyGirlJJ* has a reputation beyond repute*BabyGirlJJ* has a reputation beyond repute*BabyGirlJJ* has a reputation beyond repute*BabyGirlJJ* has a reputation beyond repute*BabyGirlJJ* has a reputation beyond repute*BabyGirlJJ* has a reputation beyond repute
Re: jlewissystem's Build Thread

Your Jeep is looking d@mn sexy ~J~!!! Very nice, clean installs!!! Looking forward to the future continuation of the mod list
__________________

2010 3.7 WK |
Reply With Quote
  #21
Old 01-23-2012, 10:21 AM
JeepCoop's Avatar
Senior Member
My Jeep: 2007 5.7L WK

Join Date: Oct 2010
Location: Los Angeles, CA
Posts: 6,745
Thanks: 360
Thanked 74 Times in 71 Posts
Rep Power: 1892518
JeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond repute
Re: jlewissystem's Build Thread

Rock on to you JJ!!
__________________
[SIGPIC][/SIGPIC]
|Build Thread

Reply With Quote
  #22
Old 01-23-2012, 10:32 AM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,465
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278238
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

Quote:
Originally Posted by *BabyGirlJJ* View Post
Your Jeep is looking d@mn sexy ~J~!!! Very nice, clean installs!!! Looking forward to the future continuation of the mod list
Thanks JJ!! and thanks for helping in the garage
__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #23
Old 01-23-2012, 10:33 AM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,465
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278238
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

Soon to be ORT club
__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #24
Old 01-23-2012, 10:37 AM
JeepCoop's Avatar
Senior Member
My Jeep: 2007 5.7L WK

Join Date: Oct 2010
Location: Los Angeles, CA
Posts: 6,745
Thanks: 360
Thanked 74 Times in 71 Posts
Rep Power: 1892518
JeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond repute
Re: jlewissystem's Build Thread

Woot woot
__________________

__________________
[SIGPIC][/SIGPIC]
|Build Thread

Reply With Quote
