Re: jlewissystem's Build Thread

SIDE PROJECT!!

Before i even did any MODS - way at the beginning of this thread, i added some garage LYTES: i gathered all of the supplies to make a cool garage sign and never even started it. I finally got to it. I still have a little to do, but i think this is a unique idea. I'll have MOAR build pics on this alone (as it's my 1st sign and you can make fun of it ), but here's a teaser:
__________________

__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #74
Old 02-11-2012, 10:03 AM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,465
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278242
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

Extended my bumpstops last night:

Cut 2" PVC sections and gave them 2 sprays of bedliner:


Compared to stock (side by side):


With cup:


For assembly-had to put it all in the spring, then assemble - luckily, i didnt have to find that out the hard way :


Installed:


Sitting on the ground:
__________________

__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #75
Old 02-11-2012, 10:12 AM
JeepCoop's Avatar
Senior Member
My Jeep: 2007 5.7L WK

Join Date: Oct 2010
Location: Los Angeles, CA
Posts: 6,745
Thanks: 360
Thanked 75 Times in 72 Posts
Rep Power: 1892522
JeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond repute
Re: jlewissystem's Build Thread

Nice Jay!!! Make me a Jeep light for my Mancave wet bar!
__________________
[SIGPIC][/SIGPIC]
|Build Thread

Reply With Quote
  #76
Old 02-17-2012, 03:13 PM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,465
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278242
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

Spacers are in!!


True 1/4" - we'll start with 1 and see what happens
__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #77
Old 02-18-2012, 02:38 PM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,465
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278242
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

So.....my new front strut spacers are sweet - they defy mathematics:

They are 1/4" spacers, but apparently i got .75" out of it - ummmm, not sure how that happened, but I'll take it!! I measured in 3 different places and took the average, thinking i was drinking too early - and we are!

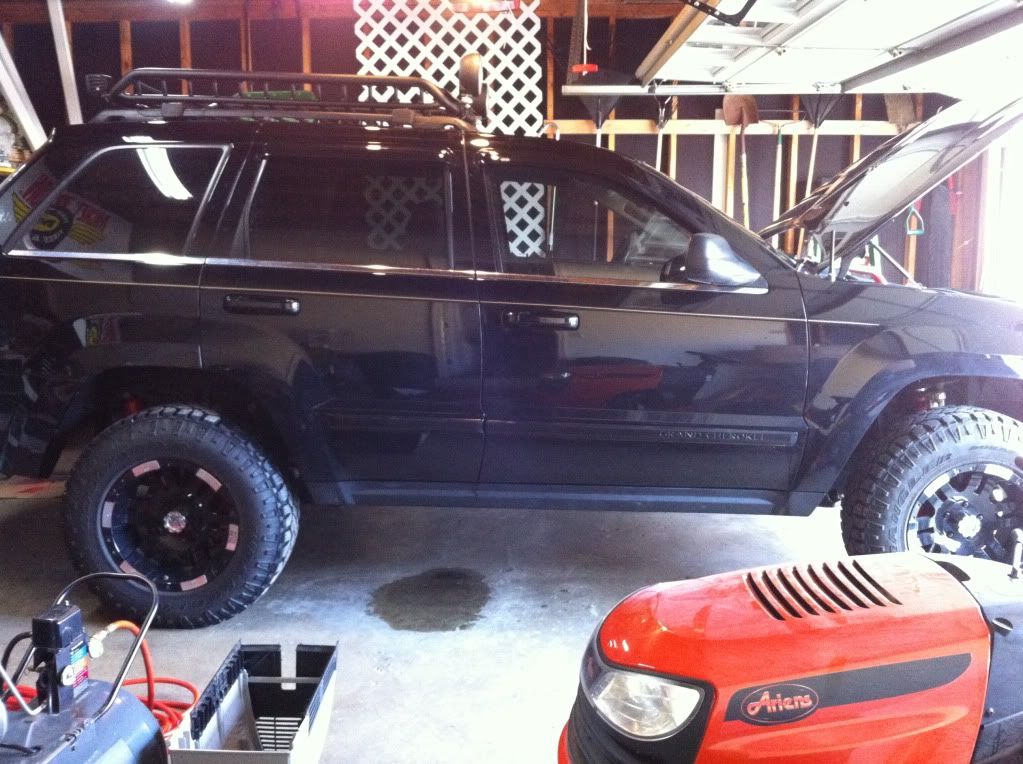

Before - close:


After - close:


Before:

After:


Info from lift:

Stock
Front: 32.25
Back: 33.00

OME HD and tires
Front: 36.25
Back: 37.00

Front Spacers
Front: 37.00
Back: 37.00
Gunna have to look for some JBA's and upgraded sway links soon
__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #78
Old 02-19-2012, 08:39 PM
wkthursty's Avatar
Member
My Jeep: 2005 3.7L WK

Join Date: Sep 2010
Location: High Ridge, MO
Posts: 451
Thanks: 0
Thanked 9 Times in 9 Posts
Rep Power: 84306
wkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond repute
Garage
Re: jlewissystem's Build Thread

nice man. cant wait to see her up close and personal pretty soon. Still odd you got so much lift out of 1/4" spacers. And the ORT badges????
__________________
6cylinder ownerJG 3.7L squad midwestjeep owner
'05 3.7L ORT 4X4
Bilstein HD shock 'n struts w/ 2" Daystar Lift,
1.5" wheel spacers and Sahara wheels w/ Falken Wild Peak A/T 265/70-18,Plasti dip grille-custom shorty antennae-badges, K&N drop in filter w/air box mod,
[SIGPIC][/SIGPIC]
Reply With Quote
  #79
Old 02-19-2012, 08:42 PM
wkthursty's Avatar
Member
My Jeep: 2005 3.7L WK

Join Date: Sep 2010
Location: High Ridge, MO
Posts: 451
Thanks: 0
Thanked 9 Times in 9 Posts
Rep Power: 84306
wkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond repute
Garage
Re: jlewissystem's Build Thread

Quote:
Originally Posted by *BabyGirlJJ* View Post
Look damn sexy!!!
Were you looking at him when you wrote this...if so...come on if not right on.
__________________
6cylinder ownerJG 3.7L squad midwestjeep owner
'05 3.7L ORT 4X4
Bilstein HD shock 'n struts w/ 2" Daystar Lift,
1.5" wheel spacers and Sahara wheels w/ Falken Wild Peak A/T 265/70-18,Plasti dip grille-custom shorty antennae-badges, K&N drop in filter w/air box mod,
[SIGPIC][/SIGPIC]
Reply With Quote
  #80
Old 02-19-2012, 08:51 PM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,465
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278242
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

Thanks Sean!! Your Jeep is looking good too man - cant wait to meet up at the car show! I still dont understand those spacers. Omelet said you'll get a "little" more - i must be drinking too much in the garage again or measured incorrectly. I think it's more like (at or just under) 1/2". Either way - i'll take it

Oh - you guys doing your own lifts and getting a "popping" noise - i ran into that same friend again today Here's my full-proof method to fixing it (at least for me):
Every time it does the noise - it's the front sway bar/links. I always tighten one side tight, then do the other side. Before you tighten the sway/links - center your sway bar, then put the bolts in, hand-tightening them evenly. Then tighten one side a little and work both sides evenly - only 2 passes. It works every time for me - happy lifting!
__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #81
Old 02-21-2012, 10:04 PM
wkthursty's Avatar
Member
My Jeep: 2005 3.7L WK

Join Date: Sep 2010
Location: High Ridge, MO
Posts: 451
Thanks: 0
Thanked 9 Times in 9 Posts
Rep Power: 84306
wkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond repute
Garage
Re: jlewissystem's Build Thread

Hmmmmm guess your 'popping' doesn't want to hang out with me.... Or i did something right first time
__________________
6cylinder ownerJG 3.7L squad midwestjeep owner
'05 3.7L ORT 4X4
Bilstein HD shock 'n struts w/ 2" Daystar Lift,
1.5" wheel spacers and Sahara wheels w/ Falken Wild Peak A/T 265/70-18,Plasti dip grille-custom shorty antennae-badges, K&N drop in filter w/air box mod,
[SIGPIC][/SIGPIC]
Reply With Quote
  #82
Old 02-21-2012, 10:11 PM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,465
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278242
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

I'm sure i did something wrong
__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #83
Old 02-22-2012, 07:18 PM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,465
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278242
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

If there's a bandwagon - make room for me!! All aboard the TB ground bandwagon!!!
Attached my ground and bent it back a little, then tapped into factory sleeve:


When factory didnt go where i wanted, i added my own:


Ran it along the fuse panels and behind to my fuse block, trying to keep it "low profile":


Behind fuse panels:


And into my fuse block - wah-la :
__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #84
Old 02-22-2012, 07:24 PM
JeepCoop's Avatar
Senior Member
My Jeep: 2007 5.7L WK

Join Date: Oct 2010
Location: Los Angeles, CA
Posts: 6,745
Thanks: 360
Thanked 75 Times in 72 Posts
Rep Power: 1892522
JeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond repute
Siiiiiiiiiiiic. Works great huh?! Love the extra kick from it.
