jlewissystem's Build Thread

Had to join in the fun here, but try to keep up with these sweet Jeeps at the same time. For all of you ADHD ppl out there - you're going to like this thread....there's not really a nice flowing story line here.....just a bunch of "hey I want to do this" ideas that become reality I want to take a quick sec to thank everyone on this forum: this is a great place for ideas, trials/errors experience - 1/2 of this stuff would not have been possible for you guys. At the same time - that's where i place all of the blame for the MOD BUG

In the past I've owned a TJ, ZJ and now this WK. I've loved all of the past flavors and figured i wanted to try the ZJ's grandson - new and improved, with HEMI.

This Jeep started off a 2006 5.7 Limited. I had a great experience acquiring this Jeep:
At the time the only thing i new is that I wanted a JGC, BLACK, HEMI with lower miles....dont care about anything else. After searching nationwide for about 2 months, my Mom calls me up saying that she passed one where she lives (Chicago). I live in STL. Got the background on it (35K miles - 1 leaser) clean past. At the time my ZJ was on it's last leg - 210K (not all from me). The day before XMAS eve (2 years) ago, i got to Chicago to check out this Jeep. It looked great and i took it out for a spin (it was a Chicago winter): test drove in ice/sleet. I floored it all over and this thing grabbed and didnt loose control. I bought it right there.

After the purchase, i drove to my Mom's house to get her luggage, cuz we were due in Detroit for XMAS. The beauty was that we took this Jeep (first ride ever) through a 5 hour ice/snow storm up to Detroit and back through a different storm. I had no idea on expectations and with all stock equip, had no issues there or back - i was SO impressed. So impressed, i couldnt wait to see what this thing could do all MODDED up Let's get to work:

Before i get to "modding" i need proper lighting - at least something better than what was in my garage - so a few garage LYTES to setup shop:

I really dont have any "before" pics, so i'll have to start with this one - only mods showing are window visors, painted calipers and brush guard and rear tail light guards:


Speaking of - the 1st mod on this thing was a brush guard. The only reason why this is the 1st one is because i hit a deer with my ZJ. That wasnt it's ultimate demise. Crappy story too - I'll make it short - was coming home from a buddy's house (in a rural neighborhood) (going 20mph) a deer popped out of a street and tucked into someone's shrubs. As i slowed down to look where it jumped in, it jumped out in front of me. I hit it doing about 12-15mph. It bounced off my grille, hit the ground and popped back up like WTF. WTF to you deer - i have 2 guns on me and can't use them! Anyway - that cost me about $200 for new header panel, grille and headlight.

Not to be made a victim like that again (and soon to take my revenge on deer in Missouri) i put the Aries brush guard on and took some time to do a grille mesh (JJ helped and added the same mesh to her KJ ). We took gutter guard, cut it, plasti-dipped it, cut it to grille hole length, bent them a little for better fit and glued the edges with Gorilla Glue. At the same time, i did the rear Aries tail light guards.






After some light protection on the outside, i took it inside: i could not handle the stock radio! Did a little upgrade: ordered the DVD NAV bezel - $75 eBay, i think and a Pioneer AVH-4200. It's a double-din with DVD, SD card...AUX inputs, camera - yadda, yadda. When i put all this in, i also wanted to watch movies when i drove (of course), so referenced link for the DVD override.
Stock:

Relay:

New:


At the time of radio installation, i ran an input (for iPhone) through the center console and up along side of the drivers seat. I also ran a video/red/white wire into the glove box, in case we need a console system on a long drive

While i've been liking the driving experience, i wanted to give it a little better sound than stock, so researched and ended up going with the MagnaFlow 16631 cat-back. Here's a comparison to the stock - i believe same diameter piping:
Side by side:

Tip comparison



__________________

__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #2
Old 01-16-2012, 06:55 PM
JeepCoop's Avatar
Senior Member
My Jeep: 2007 5.7L WK

Join Date: Oct 2010
Location: Los Angeles, CA
Posts: 6,750
Thanks: 360
Thanked 75 Times in 72 Posts
Rep Power: 1892686
JeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond repute
Re: jlewissystem's Build Thread

Very nice J!!! Can't wait to see more!
__________________

__________________
[SIGPIC][/SIGPIC]
|Build Thread

Reply With Quote
  #3
Old 01-16-2012, 06:57 PM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,469
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278406
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

Stock exhaust sound

MagnaFlow

After exhaust, i added a Airaid MIT tube to compliment. Further intake customization to follow..... At the same time, i did my BTT catch can. With Jeepy breathing harder, i wanted to keep that excess oil outta there AND IT DOES HELP! This is the only pic i have of this, which also has my painted strut bar - SPOILER!


Ok, we have better driver experience with radio,exhaust and a little protection outside....took it in the dirt and my antenna was getting whipped around. i asked JR (forum supplier) for a custom shorty:
Stock:

JR's:

That thing is great! It looks awesome and i barely loose any radio signal.

Next - JJ got me a bday gift - SRT shift knob! Def improvement! Thank you
Stock:

SRT:


A D D GO! On to the brakes for some reason....i wanted to spruce up the look against black (have a little contrast) so i went with G2 RED caliper paint - great stuff! Did the front and rears - 3 coats each. So far, it has help up real well!
Front:

Rear:



Next - first BIG project - lift (with wheels and tires):
I went with the OME HD, Moto Metal 951 wheels and DuraTrac 265/70/17's. First, i'm sure like a bunch of you - i didnt like the yellow shocks/struts. I sanded those down to prep for paint (painting red to match the calipers):

Did 3 coats of spray RED caliper paint, from Autozone and 2 coats of spray clear. They came out pretty good and have held up very well so far:

Also painted the strut bar at the same time, to add some contrast under the hood:


Out with the old!


My friend helping - poor guy helped cuz he misses his old Jeep:


Rear shot:

Complete!

Fresh with the wheels/tires (and JJ ):
__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #4
Old 01-17-2012, 12:19 AM
wkthursty's Avatar
Member
My Jeep: 2005 3.7L WK

Join Date: Sep 2010
Location: High Ridge, MO
Posts: 451
Thanks: 0
Thanked 9 Times in 9 Posts
Rep Power: 84466
wkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond reputewkthursty has a reputation beyond repute
Garage
Re: jlewissystem's Build Thread

ah ha yeah Jason. Looks better in person guys. trust me. Well have to get a few guys together and go out. mabye when it snows better?? You forgot the 4xguard skid and leds.
__________________
6cylinder ownerJG 3.7L squad midwestjeep owner
'05 3.7L ORT 4X4
Bilstein HD shock 'n struts w/ 2" Daystar Lift,
1.5" wheel spacers and Sahara wheels w/ Falken Wild Peak A/T 265/70-18,Plasti dip grille-custom shorty antennae-badges, K&N drop in filter w/air box mod,
[SIGPIC][/SIGPIC]
Reply With Quote
  #5
Old 01-17-2012, 10:04 AM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,469
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278406
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

Quote:
Originally Posted by wkthursty View Post
ah ha yeah Jason. Looks better in person guys. trust me. Well have to get a few guys together and go out. mabye when it snows better?? You forgot the 4xguard skid and leds.
Waddup Sean! Thanks man - i havent completed this thread yet, just didnt want to take up my whole night last night And to continue the fun.......

At this point i LOVED the new lifted BLACK look, so wanted to compliment it:
I followed another procedure on the forum to take my chrome door moldings to BLACK:


Since i'm getting closer to the leve of ALL BLACK i require , i cleaned it up a little: added a few stickers, de-badged and did my 1st claybar, polish and wax If you havent claybar'd, you must







Shortly after doing this stuff (in the spring) i obtained another "off-road" vehicle and branded it


Okie dokie - things are looking clean on the outside, let's try to spruce up under the hood: starting with intake. At this point, i had the Airaid MIT tube ONLY. I butchered some old K&N FIPK system to use the K&N filter, but i didnt like the sound that was created at WOT, so i tried doing something a little different. Typically, when i do that, it will need to be adjusted in the future, which it will be. SO - here's the start to the custom Frakenstein intake:
As it stood from the last MIT:


Here's the "pieced" together intake:


And installed:


Like i said, i didnt like the sound at WOT, so i decided to try a different filter - something outta some ricer forum, but i liked how the filter was black. I'm currently using this filter (along with a matching breather filter) but i will be replacing these, come this Spring. At the same time, i wanted to jazz-up the tube as well, so thought about matching the red with the strut bar. I'm going to change this around too - going with a red header wrap, as the paint has ultimately cracked. I wanted to preserve the "cold-air" so i wrapped the tube in 2 layers of heat foil and smashed it with a spoon, to try and make it smooth:


Hit it with some primer and smashed it again:


Primer'd and smoothed:

On to a few coats of the RED - like many:
__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #6
Old 01-17-2012, 10:16 AM
JeepCoop's Avatar
Senior Member
My Jeep: 2007 5.7L WK

Join Date: Oct 2010
Location: Los Angeles, CA
Posts: 6,750
Thanks: 360
Thanked 75 Times in 72 Posts
Rep Power: 1892686
JeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond repute
Re: jlewissystem's Build Thread

Loving all the red bra!! SO smooth

How'd ya install the tail light guards? Mine should be in this week!
__________________
[SIGPIC][/SIGPIC]
|Build Thread

Reply With Quote
  #7
Old 01-17-2012, 10:32 AM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,469
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278406
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

Y thank you sir! Figured red would "pop" against the black I didn't take any install pics of those, but they're super easy. I like how Omelet move his closer in to the body, but I didn't mind them sticking out. To install, open liftgate and unscrew 2 rear lens screw. Put in 2 screw mounts on top of existing screw holes. The other side of the guard mount is only double-sided tape. So, just pull your lens out slightly (optional) and stick it in there
__________________

2006 5.7 WK ORT | DiabloSport Predator | FlyinRyan Custom TCM Tune & Ported Throttle Body | (Painted Red) OME HD | Moto Metal 951's | 265/70/17 Duratrac's | Custom SEGUARO Front Bumper | Magnaflow Cat Back 16631 | Airaid Intake | Jet 180 T-Stat | BTT Catch Can | XenonDepot 5000 HID Lows | LED Fogs | JR's Custom Shorty Antenna | De-badged | Rola Roof Rack | MOAR LYTES: Eagle Eye HID Spots | Rigid D2's (Rear) | 7" LED SYDE Lights | 4xGuard Front Skid | Aries Rear Tail Light Guards | FULL Interior LED's | Interior VINYL Wrap | (Painted Red) Strut Bar | Pioneer AVH-4200 | Custom Rear Camera | (Painted Red) Calipers | Gorilla Black Locking "System" | SRT8 Shift Knob | (BUILD THREAD)
Reply With Quote
  #8
Old 01-17-2012, 10:56 AM
JeepCoop's Avatar
Senior Member
My Jeep: 2007 5.7L WK

Join Date: Oct 2010
Location: Los Angeles, CA
Posts: 6,750
Thanks: 360
Thanked 75 Times in 72 Posts
Rep Power: 1892686
JeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond reputeJeepCoop has a reputation beyond repute
Re: jlewissystem's Build Thread

Nasty and fun! Thanks maing!!
__________________
[SIGPIC][/SIGPIC]
|Build Thread

Reply With Quote
  #9
Old 01-17-2012, 12:04 PM
jlewissystem's Avatar
Fo sheezy my neezy
My Jeep: 2006 5.7L WK

Join Date: Oct 2010
Location: STL, MO
Posts: 1,469
Thanks: 37
Thanked 67 Times in 61 Posts
Rep Power: 1278406
jlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond reputejlewissystem has a reputation beyond repute
Re: jlewissystem's Build Thread

It looked decent at first glance:

It looked so great, i decided to go to a few car shows (not expecting to win) but just to show-off and have some fun. I met up with SweetJeep99 (if he's still on here). He has the blue WK to my left. (And YES, i did clean my engine bay It was spotless after following this thread) Sorry - not the best pics here...not a scratch or piece of dirt



After going to a few car shows, i picked up on an idea that can add to my engine bay-"spruce-up": Hose Sleeving and Clamps. I got all of them from Amazon and had to send about 4 different ones back - LOL - damn trial and error
I did the following hoses:
*Coolant reservoir
*Upper radiator
*Catch can lines
*Breather filter hose
*Power Steering line


At the same time, i decided to revisit the intake, adding a heat shield: from the same FIPK that i already murdered. I also used a piece of PVC to angle the intake filter:


Here's where you can see some of the painted seams coming apart - to be covered by red header wrap later.




OK - the "hood-work" had me feeling like i didnt want to work under the hood for a while - i need to do some external MOD - WHERE'S THE BEEF!? In the front skid of course - BEEF up that front end. Ordered the last "4XGuard" front skid, before they were bought.....took off the air-dam (about time) and simply applied the front skid. BTW - it does not interfere with OIL changes at all.





A-D-D moment again: somewhere along the way, JJ got me a backup CAM for my AVH-4200DVD. I mounted the cam under the external liftgate molding (to the left of the handle) and ran the wires through the liftgate, rubber connecting liftgate to Jeep and all the way up to the front. It wasnt a big job, but totally cool MOD!
Looking up at the inside of the open liftgate, with the inside "liner" removed

I bent a few tabs back to allow for mounting screws:

Drilled a few holes in the liftgate handle mount:

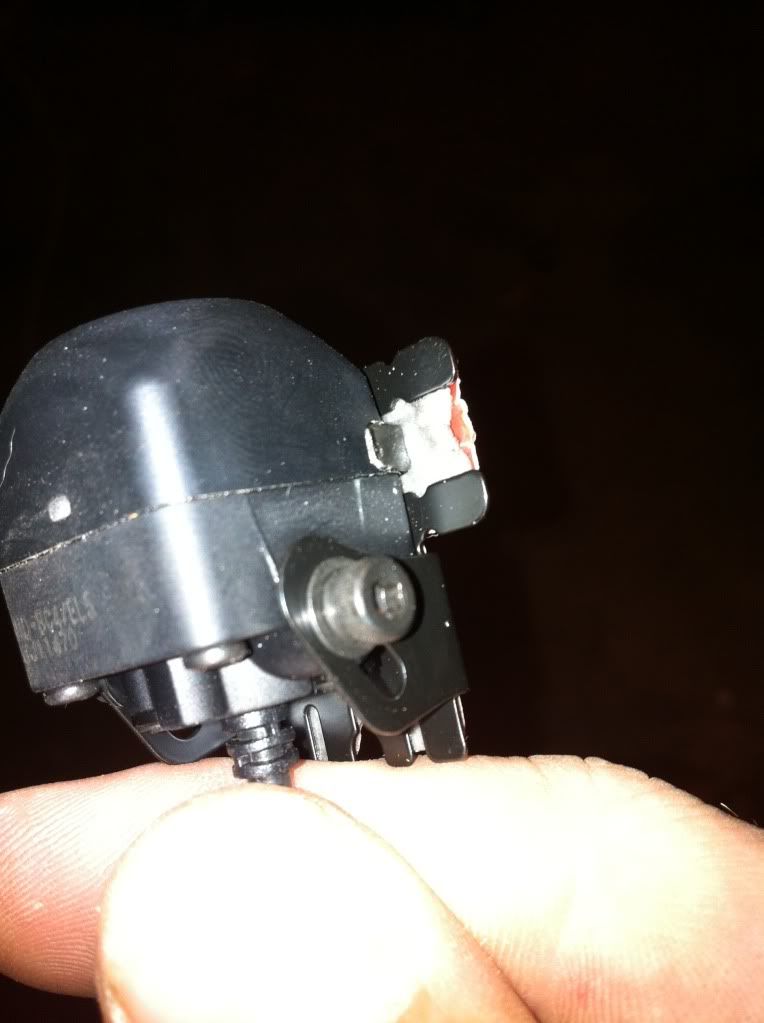

Mounted this sucker up and ran the wire:
