Re: CUSTOM UPPER CONTROL ARMS 4 SRT8s

Quote:
Originally Posted by muellge View Post
I bought a set - they arrived today. Certanly sturdy and well made. Will photo when they go in.
if you can take a comparison pic, side by side would be great.
__________________

Reply With Quote
  #14
Old 01-30-2011, 09:53 PM
Member

Join Date: Jul 2010
Posts: 50
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 1582
nomad is on a distinguished road
Re: CUSTOM UPPER CONTROL ARMS 4 SRT8s

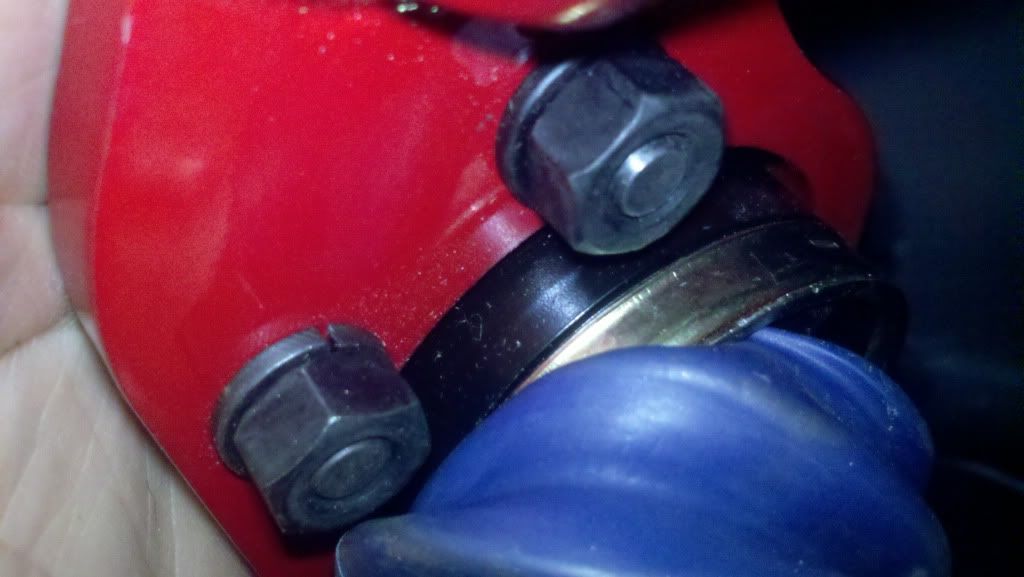

I have set of the new updated upper control arms with the new balljoint. I'm having one hell of a time. The boot on the balljoint keeps popping out from under the snap ring. I dont like the thought of the BJ grease all over the place. If any of you have yours on and have a good photo of them, could you please look to see if your boot is coming off. It's on the inside of the bj. This photo is with no wheel on and no pressure on the suspension at all. As you can see the blue boot is popping out from the snapring in the back.

Thanks damon
__________________

__________________
Reply With Quote
  #15
Old 02-13-2011, 11:38 AM
Member

Join Date: Feb 2011
Posts: 141
Thanks: 0
Thanked 3 Times in 2 Posts
Rep Power: 1460
Rose City GC SRT8 is on a distinguished road
Re: CUSTOM UPPER CONTROL ARMS 4 SRT8s

Quote:
Originally Posted by nomad View Post
I have set of the new updated upper control arms with the new balljoint. I'm having one hell of a time. The boot on the balljoint keeps popping out from under the snap ring. I dont like the thought of the BJ grease all over the place. If any of you have yours on and have a good photo of them, could you please look to see if your boot is coming off. It's on the inside of the bj. This photo is with no wheel on and no pressure on the suspension at all. As you can see the blue boot is popping out from the snapring in the back.

Thanks damon
Hi, guys! Damon's problem was with the BJs. Marlin sent out new ones to him. He stands by his product.

I was one of the two prototype testers for this new UCA. The GY RSA run-flat tires have inner tire wear problems that become magnified after lowering. The factory stuff runs out of adjustability, and in many cases does not allow even stock camber settings to be achieved.

If you desire to lessen inner tire wear by reducing negative camber, there was no option until these new UCAs were produced. They are also much beefier than the stock stuff and the BJ is bolt-in.

With this UCA you can now go to Zero camber if you want! Forget about premature inner tire wear on your lowered rig.
__________________
Reply With Quote
  #16
Old 02-13-2011, 12:03 PM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 49,248
Thanks: 867
Thanked 977 Times in 691 Posts
Rep Power: 7717885
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: CUSTOM UPPER CONTROL ARMS 4 SRT8s

can you guys get vendor here?
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED\BlackOps CFR Edition" 1 of 1
2013 JKU Wrangler 10A-stormtrooper'ed, JW Speaker and more!
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #17
Old 02-14-2011, 10:59 AM
Member

Join Date: Jul 2010
Posts: 50
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 1582
nomad is on a distinguished road
Re: CUSTOM UPPER CONTROL ARMS 4 SRT8s

The new Ball joints that Marlin sent out worked great. Things came out just as planed. I will post some pics soon. Love the look. Just need to finish up a few things up front and im all good. Thanks for your help Rose city.
__________________
Reply With Quote
  #18
Old 02-14-2011, 12:20 PM
Member
My Jeep: 2008 6.1L SRT8

Join Date: Jul 2009
Location: Far Northern, IL
Posts: 393
Thanks: 0
Thanked 3 Times in 3 Posts
Rep Power: 2318
DCSpecial has much to be proud of
Re: CUSTOM UPPER CONTROL ARMS 4 SRT8s

Good to hear that you got it sorted out.
__________________
Dan C
08 GC SRT8 Bright Silver Metallic....not stock

Reply With Quote
  #19
Old 02-14-2011, 01:59 PM
soontobesrt's Avatar
I drive a modern day Woody
My Jeep: 2005 3.7L WK

Join Date: Jan 2010
Location: Philadelphia,PA ----> Trenton, NJ
Posts: 1,602
Thanks: 31
Thanked 14 Times in 14 Posts
Rep Power: 3396
soontobesrt has a reputation beyond reputesoontobesrt has a reputation beyond reputesoontobesrt has a reputation beyond reputesoontobesrt has a reputation beyond repute
Re: CUSTOM UPPER CONTROL ARMS 4 SRT8s

Its weird, Im slammed all the way and my camber is very near spec. It may be a little bit out but its certainly a solid help in the handling aspect. I dont see $45 being justified in my case and Im sure for many others but it def would be a cool option for guys who have issue with the stock goodyears or anyone else who is noticing uneven tire wear.

Are there any other known issue an negative out of spec camber can cause as far as the front suspension goes? I dont see where as mine out like .3-.4 degrees maybe?
__________________

Mods: A Bunch



Reply With Quote
  #20
Old 02-14-2011, 03:45 PM
Member
My Jeep: 2008 6.1L SRT8

Join Date: Jul 2009
Location: Far Northern, IL
Posts: 393
Thanks: 0
Thanked 3 Times in 3 Posts
Rep Power: 2318
DCSpecial has much to be proud of
Re: CUSTOM UPPER CONTROL ARMS 4 SRT8s

I'm maxed out with factory adjustment and at -0.7* to -0.9* on each side. Still technically within spec though.

Also, my upper ball joints are at a pretty extreme angle.....already toasted one when it had 15,000 miles on it. It only had play at the angle of ride height, straightened out it had zero play. So the angle may not be helping.
I may change out to these if/when I kill another ball joint.
__________________
Dan C
08 GC SRT8 Bright Silver Metallic....not stock

Reply With Quote
  #21
Old 02-14-2011, 03:46 PM
Long Live the Graphite Ghost


Join Date: May 2009
Posts: 13,418
Thanks: 55
Thanked 132 Times in 114 Posts
Rep Power: 542636
robpp has disabled reputation
Re: CUSTOM UPPER CONTROL ARMS 4 SRT8s

thats it anthony, they can get it close. they want it IN. they seemto have an issue with INNER front tire wear that causes premature tread seperation.

somewhere around 20-30 K miles on the stock goodyears they seem to see this. so its not REAL bad where the tires are ruined in 2 thousadn miles/
__________________
Reply With Quote
  #22
Old 02-15-2011, 11:36 AM
Member

Join Date: Feb 2011
Posts: 141
Thanks: 0
Thanked 3 Times in 2 Posts
Rep Power: 1460
Rose City GC SRT8 is on a distinguished road
Re: CUSTOM UPPER CONTROL ARMS 4 SRT8s

Quote:
Originally Posted by DCSpecial View Post
I'm maxed out with factory adjustment and at -0.7* to -0.9* on each side. Still technically within spec though.

Also, my upper ball joints are at a pretty extreme angle.....already toasted one when it had 15,000 miles on it. It only had play at the angle of ride height, straightened out it had zero play. So the angle may not be helping.
I may change out to these if/when I kill another ball joint.
This may be a better reason to go with these UCAs. The ball joint is beefier and is angled to compensate for the angulation of the A-arm after lowering.

That being said, inner tire wear may be accentuated with run-flat tires. Someone on another forum postulated that the stiffness of the sidewalls may not allow the tire to flex and adapt to the road like a normal radial, which puts the wear on the inside edge. Makes sense to me, but I can't say whether it's true or not.
__________________
Reply With Quote
  #23
Old 02-15-2011, 01:21 PM
Member
My Jeep: 2008 6.1L SRT8

Join Date: Jul 2009
Location: Far Northern, IL
Posts: 393
Thanks: 0
Thanked 3 Times in 3 Posts
Rep Power: 2318
DCSpecial has much to be proud of
Re: CUSTOM UPPER CONTROL ARMS 4 SRT8s

Yes, I am not a fan of runflats.....and feel the RSAs are the wrong tire for the Jeep. LOL.


My Vreds are wearing evenly....albeit they don't have many miles yet since they came off for the winter. But they appear to have more wear on the outer edge from hard cornering vs. the inner edge from camber.


The beefier ball joint at a better angle is why I will most likely eventually have the new UCAs
__________________
Dan C
08 GC SRT8 Bright Silver Metallic....not stock

Reply With Quote
  #24
Old 02-15-2011, 05:48 PM
Member

Join Date: Feb 2010
Location: Chicago
Posts: 65
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 1751
Knuckles is on a distinguished road
Re: CUSTOM UPPER CONTROL ARMS 4 SRT8s

Good thread and I want to hear more info as guys get more miles on them....
__________________

__________________
Jose
2008 Jeep SRT 8 SBM w/ OPT. 1 and 2
Mods: Volant CAI w Twin Snorkel mod/CORSA Exhaust/SW 1.875" headers/Trinity /Innovate XD-16 with LC-1 wideband/Toona CMR Tune/DashHawk/Custom A Pillar/Jet 180* T-Stat/18lb Stant Cap/BT Titanium Catch Can/BT Titanium Underhood Kit/Debadged/R1 Cross/Drill Rotors w/FRT Hawk Pads & Rear CTS-V pads/Toyo Proxe ST II 275/315 tires/Eibach Springs/Rear Fog Harness/MHP Shorty Antenna/Gun Metal Grey Wheels
