Install of Factory Rear View Camera 2011 WK2

So I have now completed the install of the factory rear view camera in my 2011 WK2 and today had the dealer reflash the vin, and seems to work perfectly.

For reference I have (had) a base Laredo with Uconnect, added a used 430n, then the camera.

I used this pdf for reference, it was also included with the camera:
http://site.justforjeeps.com/guide/82212110.pdf

I had a little trouble digesting page 5, the wiring.
Here is a picture of my C3 connector when I removed it, it turns out there were already wires there, I figure I may not have had to run the wire, it may just have been plug and play, I may try someday, but for now I used the extension wire included. I removed the wires and installed the bare wire ends of the Radio to power source harness and connector using the number placement from page 5 and the numbers stamped on the back of the C3 connector. In this picture I am showing the supplied C3 connector beside mine, I'm not sure in which case you may need it.

I got power from the ashtray, and found a ground just below the radio. I attached the wires from the radio to power source connector here:

So that takes care of the 5 wires from the Radio to Power source connector, I then ran the plug end down to the drivers side footwell, beside where the trailer brake plugs in.
Now onto the rear. (Routing the extension wire along door sills and below the spare compartment is easy, won't show any of that)

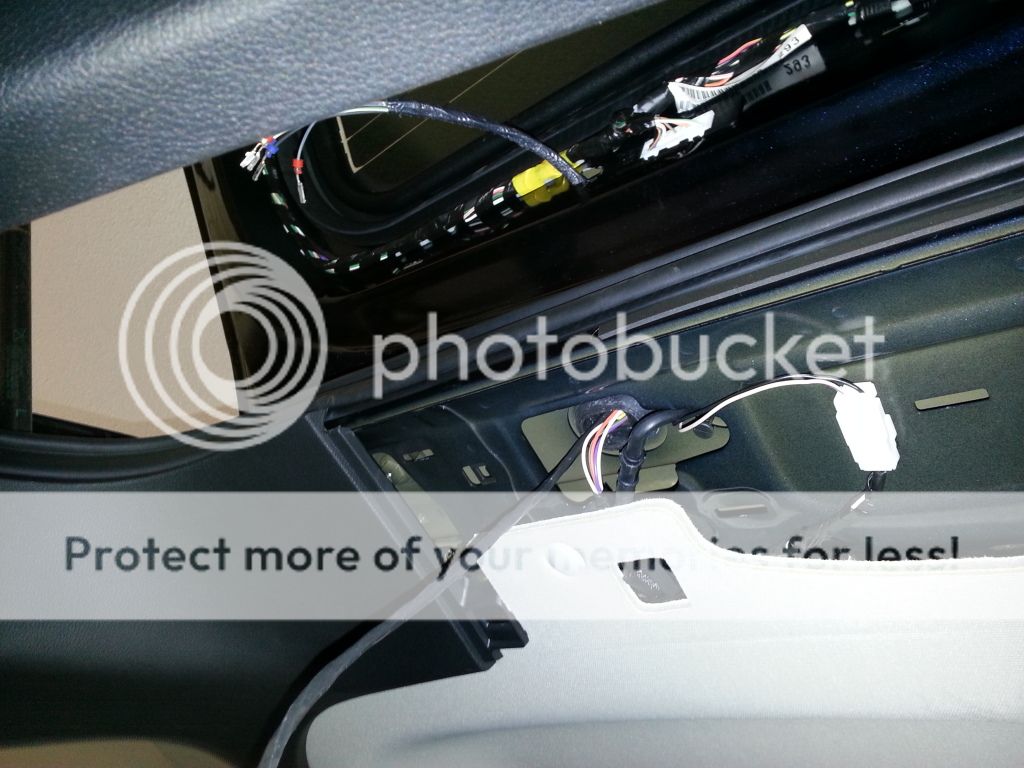

Removing the liftgate panels is pretty easy, so is removing the brow. Only challenging part is routing the camera extension harness connector. I removed the upper liftgate trim panel and ran the wire through the grommet, it does not look the same as the in the pdf instructions. I pulled the wire through one of the cutouts for the trim panel. I broke the tab off the trim panel so it would not interfere. I could not tell where the pdf intended the wire to exit the liftgate after going through the grommet.

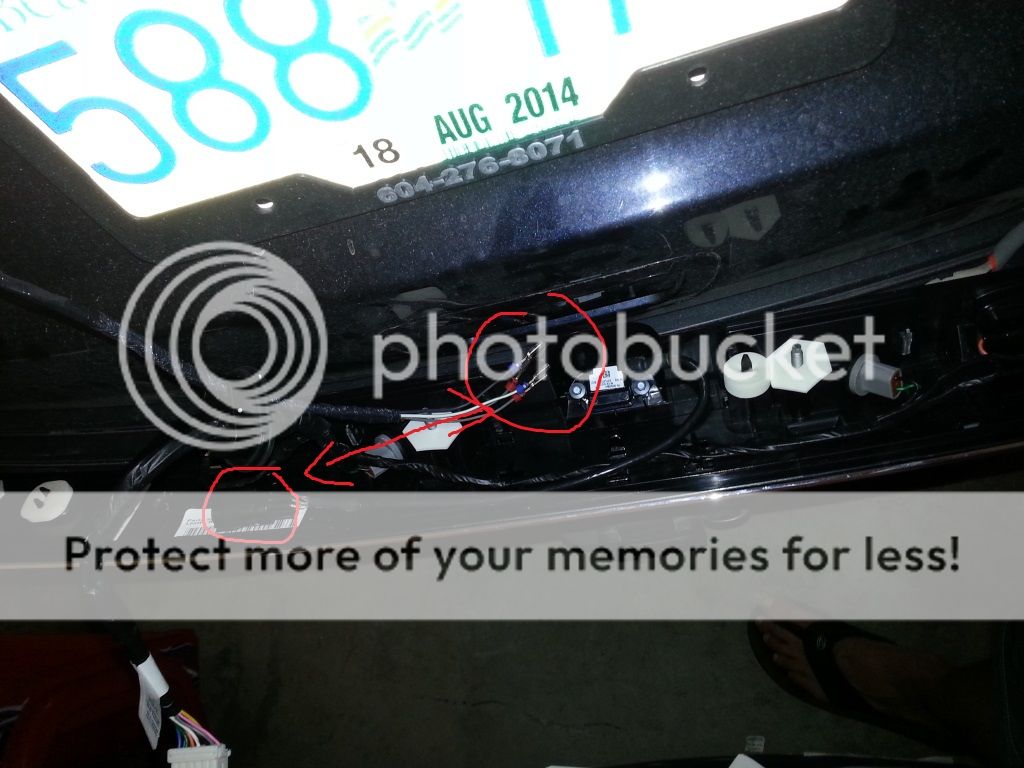

I then routed the wire along the side of the liftgate, ziptying it. It has to pass through the grommet supplying power to the brow. You then have to attach the supplied connector and plug it directly into the wire coming from the camera.

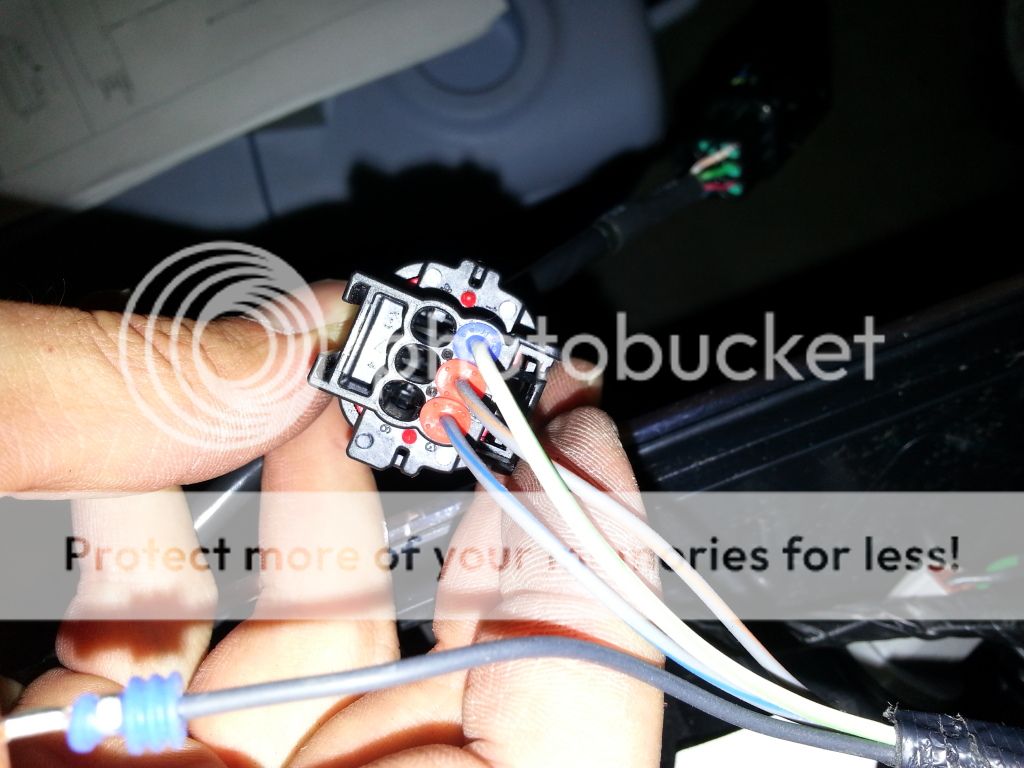

Here is a picture of the placement of wires into the connector using the numbers provided on page 5 of the pdf- I hadn’t installed the ground yet when I took the picture.

Here's a pic of the rear brow when I opened the box for reference:

I then had the dealer reflash the vin, and everything worked great!


So it’s a relatively easy install, hopefully this writeup and pictures help, in particular the placement of the bare wires in their connectors at the stereo and camera end.
__________________

__________________
Reply With Quote
The Following User Says Thank You to WickedXJ For This Useful Post:
  #2
Old 12-25-2013, 10:18 AM
archcat74's Avatar
Member
My Jeep: 2014 3.0L WK2

Join Date: Dec 2013
Location: Geelong, Victoria, Australia
Posts: 62
Thanks: 7
Thanked 0 Times in 0 Posts
Rep Power: 366
archcat74 is on a distinguished road
Re: Install of Factory Rear View Camera 2011 WK2

Great write up there. Thanks for the info.
__________________

__________________
Internet forums - CB radio for the 21st century!!!
Reply With Quote
  #3
Old 04-01-2014, 10:36 PM
New Member

Join Date: Jul 2013
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
dal04c is on a distinguished road
Re: Install of Factory Rear View Camera 2011 WK2

Great writeup! I am currently installing a rear view camera on my JGC 2012! However, I have ran into a problem. I cannot connect the wires into the connector of page 5 to plug into the camera. Is there a special way? I think my connector came with out a "lock clip" on it because the wires will not stay in the connector. Thanks for your help!!
__________________
Reply With Quote
  #4
Old 04-02-2014, 06:35 PM
RageOfFury's Avatar
Premium Member
My Jeep: 2011 3.6L WK2

Join Date: Feb 2011
Location: Ottawa, Canada
Posts: 1,372
Thanks: 97
Thanked 28 Times in 26 Posts
Rep Power: 11251
RageOfFury has a reputation beyond reputeRageOfFury has a reputation beyond reputeRageOfFury has a reputation beyond reputeRageOfFury has a reputation beyond reputeRageOfFury has a reputation beyond reputeRageOfFury has a reputation beyond reputeRageOfFury has a reputation beyond reputeRageOfFury has a reputation beyond reputeRageOfFury has a reputation beyond reputeRageOfFury has a reputation beyond reputeRageOfFury has a reputation beyond repute
Re: Install of Factory Rear View Camera 2011 WK2

Well done sir!
