Lightbulb How to add Auto HVAC to your WK2!

I ordered Item # 55111916AP (2011-2013 without Heated or Ventilated Seats)

From Just for Jeeps!!

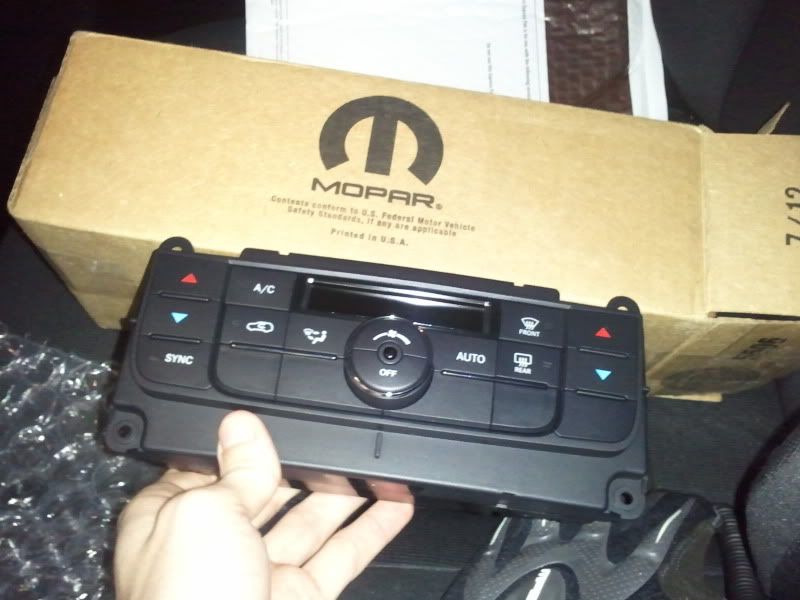

Step #1 Unbox and awe at the beauty of it.

Step #2 say good bye to manual HVAC

Step #3
Use the bottom lip of the trim and pull with 2 hands equally * mine took some force*

Almost there!!! I found it easier to start pulling and wiggling near the drivers vent!

***** Caution There are wires attached to the panel*****
Step #5 it's out!



Step #6 Requires a #15 Torx bit (at least that's what worked for me)
4x torx and the old HVAC will fall out!


Take your new Auto Hvac put it in place of the old put the screws back in.

Step #7 Trim the HVAC Harness Connector ** I used a razor blade to trim it **



Step #8 Plug your connectors back into the panels before putting the trim back in place and get it a good push to pop all the clips back in.


Step #9 Enjoy!!


Hope this helps!
__________________

__________________
Reply With Quote
The Following User Says Thank You to xJoshxx For This Useful Post:
  #2
Old 09-25-2012, 07:24 PM
Member

Join Date: Dec 2011
Posts: 40
Thanks: 0
Thanked 1 Time in 1 Post
Rep Power: 909
thall is on a distinguished road
Re: How to add Auto HVAC to your WK2!

great writeup, but could you have shown the 'after' image of the modified connector?

are they trimmed completely flush for the length? It is the two 'outside' projections, correct?

general question.. what is the SYNC button's purpose?
__________________

__________________
Reply With Quote
  #3
Old 09-25-2012, 08:09 PM
xJoshxx's Avatar
Premium Member
My Jeep: 2012 6.4L WK2

Join Date: Mar 2011
Location: Burlington,KY
Posts: 767
Thanks: 24
Thanked 16 Times in 16 Posts
Rep Power: 72308
xJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond repute
Re: How to add Auto HVAC to your WK2!

Quote:
Originally Posted by thall View Post
great writeup, but could you have shown the 'after' image of the modified connector?

are they trimmed completely flush for the length? It is the two 'outside' projections, correct?

general question.. what is the SYNC button's purpose?
Yea, I slacked a little bit I forgot to take a picture of the finished product.

I trimmed it back i did not make it flush, Only the outer fins need to be trimmed back

The sync button makes the Driver and Passenger side the same temp.
__________________
Reply With Quote
  #4
Old 09-25-2012, 08:16 PM
BobsWK2's Avatar
Premium Member

Join Date: Aug 2010
Posts: 1,484
Thanks: 3
Thanked 23 Times in 21 Posts
Rep Power: 49371
BobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond repute
Re: How to add Auto HVAC to your WK2!

Looks great. I still get a laugh anytime I see the manual hvac controls in a WK2. Those 3 large knobs just look like something that JC Whitney or Pep Boys would sell. I'm sure the Jeep designers could have come up with better looking manual hvac controls than those 3 ugly cheap looking knobs.
__________________
2014 Summit 4X4, V8
Reply With Quote
  #5
Old 09-25-2012, 08:30 PM
Juan's Avatar
Member
My Jeep: 2011 3.6L WK2

Join Date: Jan 2011
Location: Hawaii Kihei & Waikiki
Posts: 411
Thanks: 0
Thanked 2 Times in 2 Posts
Rep Power: 1610
Juan is on a distinguished road
Nice job Josh! I hate the manual control on mine.
__________________
[SIGPIC][/SIGPIC]
2011 Grand Cherokee 4x4

-V-6 Pentastar Black on Black / Debadged / color matched grille / tinted tails
-Trailer Tow Group
-Security & Convenience Group
-Off-Road Adventure l Package
1994 Wrangler
-4.0L Inline 6 Dark Blue
-Rubicon Express 4.5 Lift SYE & extended drive shaft
-32's with 17 inch rims Borla Headers & Catback
Reply With Quote
  #6
Old 09-26-2012, 09:08 AM
padgett's Avatar
Premium Member

Join Date: Feb 2012
Location: Orlando
Posts: 1,475
Thanks: 0
Thanked 20 Times in 17 Posts
Rep Power: 79938
padgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond repute
Re: How to add Auto HVAC to your WK2!

You never heard of the "ugly designer" ? The person employed to make "base" models look cheap ? The one who designs radio and clock delete plates (like the row of non-buttons under the HVAC on a 2WD V6 that screams "something else is supposed to be here").

Buick used to have one when styling was in three year phases: the last year would be what the designers envisioned origionally and the first two "uglied" so that the third year would still garner sales.

Just look at the 63-4 Riviera and then the 65, the 68-9 Skylark and then the 70.
__________________
Web home. Notary Sojac Y'all
One of these is a diesel:
Reply With Quote
  #7
Old 09-26-2012, 06:06 PM
BobsWK2's Avatar
Premium Member

Join Date: Aug 2010
Posts: 1,484
Thanks: 3
Thanked 23 Times in 21 Posts
Rep Power: 49371
BobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond reputeBobsWK2 has a reputation beyond repute
Re: How to add Auto HVAC to your WK2!

Quote:
Originally Posted by padgett View Post
You never heard of the "ugly designer" ? The person employed to make "base" models look cheap ? The one who designs radio and clock delete plates (like the row of non-buttons under the HVAC on a 2WD V6 that screams "something else is supposed to be here").

Buick used to have one when styling was in three year phases: the last year would be what the designers envisioned origionally and the first two "uglied" so that the third year would still garner sales.

Just look at the 63-4 Riviera and then the 65, the 68-9 Skylark and then the 70.
Never did like any of the GM A body cars of 68-69. That's why I bought a 1970 Buick GSX Stage 1 in Saturn Yellow. Boy, I kind of wish I still had that car.
__________________
2014 Summit 4X4, V8
Reply With Quote
  #8
Old 09-28-2012, 06:14 PM
xJoshxx's Avatar
Premium Member
My Jeep: 2012 6.4L WK2

Join Date: Mar 2011
Location: Burlington,KY
Posts: 767
Thanks: 24
Thanked 16 Times in 16 Posts
Rep Power: 72308
xJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond repute
Re: How to add Auto HVAC to your WK2!

Update!

I've left it on auto all week and it works perfectly even blow the front defrost in the morning then switches to the other vents later on.

Great Add on!
__________________
Reply With Quote
  #9
Old 09-30-2012, 02:00 PM
WickedXJ's Avatar
Member
My Jeep: 2011 3.6L WK2

Join Date: Sep 2012
Location: North Vancouver, BC Canada
Posts: 60
Thanks: 0
Thanked 2 Times in 2 Posts
Rep Power: 2859
WickedXJ has a reputation beyond reputeWickedXJ has a reputation beyond reputeWickedXJ has a reputation beyond reputeWickedXJ has a reputation beyond reputeWickedXJ has a reputation beyond reputeWickedXJ has a reputation beyond reputeWickedXJ has a reputation beyond reputeWickedXJ has a reputation beyond reputeWickedXJ has a reputation beyond reputeWickedXJ has a reputation beyond reputeWickedXJ has a reputation beyond repute
Re: How to add Auto HVAC to your WK2!

Thanks OP for the write-up, great relatively cheap mod to get rid of the ugly controls now.

Can someone confirm that the farenheit/celcius changes when changed in the evic? Or is there a canadian climate control?

Thanks
__________________
Reply With Quote
  #10
Old 09-30-2012, 11:09 PM
xJoshxx's Avatar
Premium Member
My Jeep: 2012 6.4L WK2

Join Date: Mar 2011
Location: Burlington,KY
Posts: 767
Thanks: 24
Thanked 16 Times in 16 Posts
Rep Power: 72308
xJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond reputexJoshxx has a reputation beyond repute
Re: How to add Auto HVAC to your WK2!

Quote:
Originally Posted by WickedXJ View Post
Thanks OP for the write-up, great relatively cheap mod to get rid of the ugly controls now.

Can someone confirm that the farenheit/celcius changes when changed in the evic? Or is there a canadian climate control?

Thanks
I believe there is a Canadian version
__________________
Reply With Quote
  #11
Old 10-11-2012, 09:03 AM
Member

Join Date: Oct 2012
Posts: 50
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 606
brjp1 is on a distinguished road
Re: How to add Auto HVAC to your WK2!

Excellent! My next mod for sure! Hate the manual knobs.
__________________
Reply With Quote
  #12
Old 10-12-2012, 03:12 AM
Member
My Jeep: 2012 WK2

Join Date: May 2012
Location: Perth australia
Posts: 32
Thanks: 9
Thanked 0 Times in 0 Posts
Rep Power: 746
Tressels is on a distinguished road
Re: How to add Auto HVAC to your WK2!

Quote:
Originally Posted by WickedXJ View Post
Thanks OP for the write-up, great relatively cheap mod to get rid of the ugly controls now.

Can someone confirm that the farenheit/celcius changes when changed in the evic? Or is there a canadian climate control?

Thanks
I would also like to know if its a simple change in the evic?
