Re: LED Liftgate Reverse and Tail Light Install w/pics

Looks fantastic! I gotta do this.
I see you have listed what LED bulb you used for the liftgate reverse lights but what about the other 2 reverse lights on the body of the car? Do they require a different LED bulb or the same? Any help is greatly appreciated.

__________________
'11 Laredo / Bright Silver Metallic / V6 / QT1
40% windshield tint, 20% front sides, 255/70/17 GY Wrangler AT Adventures, 5000k LED interior and reverse lights, K&N drop in filter
Audio: Pioneer AVH-X1500, Alpine MRX-M55, Rockford P3-12"
Reply With Quote
Sponsored Links
Advertisement

  #26
Old 09-16-2012, 01:48 PM
JMP8562's Avatar
Member
My Jeep: 2012 5.7L WK2

Join Date: Mar 2012
Location: Mokena Il
Posts: 446
Thanks: 3
Thanked 12 Times in 11 Posts
Rep Power: 24220
JMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond repute
Garage
Re: LED Liftgate Reverse and Tail Light Install w/pics

has anyone replaced the DRLs with LEDs ?
__________________
89 Modified wrangler to 95 Modified cherokee to 01 GC modified to 07 JK 4 DOOR X And now starting All Over Again with a stock 12 JGC WK2 limited
Reply With Quote
  #27
Old 09-16-2012, 01:51 PM
Mongoose9400's Avatar
Member
My Jeep: 2012 6.4L WK2

Join Date: Feb 2012
Location: Rio Rancho, NM
Posts: 829
Thanks: 0
Thanked 55 Times in 45 Posts
Rep Power: 0
Mongoose9400 is an unknown quantity at this point
Quote:
Originally Posted by JMP8562 View Post
has anyone replaced the DRLs with LEDs ?
I have on my WK2 SRT8


Sent from my iPhone 4S
Reply With Quote
  #28
Old 09-17-2012, 07:41 AM
JMP8562's Avatar
Member
My Jeep: 2012 5.7L WK2

Join Date: Mar 2012
Location: Mokena Il
Posts: 446
Thanks: 3
Thanked 12 Times in 11 Posts
Rep Power: 24220
JMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond reputeJMP8562 has a reputation beyond repute
Garage
Re: LED Liftgate Reverse and Tail Light Install w/pics

Quote:
Originally Posted by Mongoose9400 View Post
I have on my WK2 SRT8


Sent from my iPhone 4S
dO YOU HAVE A PART #
__________________
89 Modified wrangler to 95 Modified cherokee to 01 GC modified to 07 JK 4 DOOR X And now starting All Over Again with a stock 12 JGC WK2 limited
Reply With Quote
  #29
Old 09-17-2012, 10:01 AM
Mongoose9400's Avatar
Member
My Jeep: 2012 6.4L WK2

Join Date: Feb 2012
Location: Rio Rancho, NM
Posts: 829
Thanks: 0
Thanked 55 Times in 45 Posts
Rep Power: 0
Mongoose9400 is an unknown quantity at this point
Quote:
Originally Posted by JMP8562 View Post
dO YOU HAVE A PART #
<b>Time:</b><br />
1-2 hours<br />
<br />
<b>Parts:</b><br />
<br />
<br />
<br />
<br />
<b>Tools:</b><br />
Soldering Iron<br />
Solder<br />
Electrical Tape<br />
Wire Loom<br />
Heat Shrink <br />
Lighter<br />
Wire Strippers<br />
Diagonal Cutters<br />
Digital Multimeter<br />
Test Light<br />
Wire<br />
<br />
<b>Steps:</b><br />
First I just plugged the LED bulbs in and it was a no go. I rotated the bulbs in the socket and still a no go. <br />
<br />
I checked to make sure the LED bulbs worked. Using some spare wire I connected to the + and - studs under the hood to test the bulbs. I discovered my + and - connections on the bulb noted by the red and black mark.<br />
<br />
<br />
<br />
Now here is the problem. When testing the socket the + and - connection are in the wrong spot. Hence why my bulbs didn't work when I plugged them in.<br />
<br />
<br />

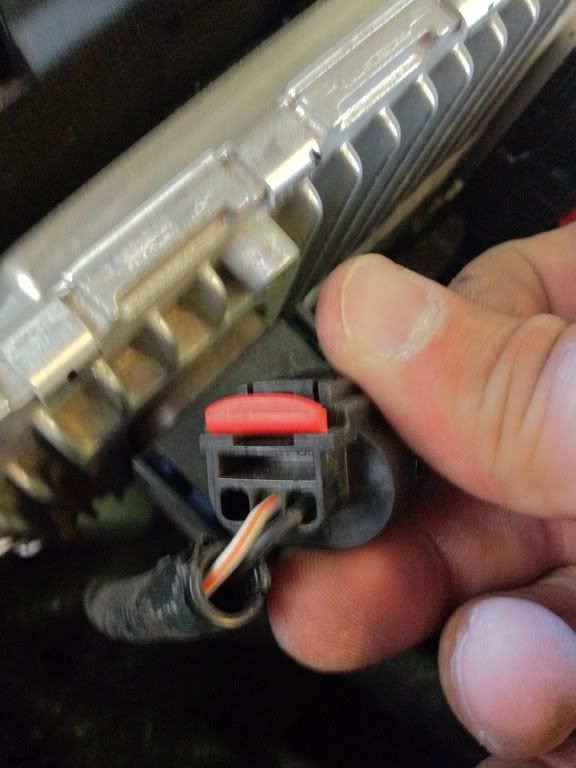

The problem with the factory connecter is the positive wire is in the wrong port on the OEM plug. As seen in the pics below the white wire in the middle needs to be moved to the free port. I didn't have the tools to rearrange the wires so I bought new connectors.<br />
<br />
<br />
<br />
Cut off the factory connector and strip the wire leads back. Grab the new connector and strip the brown and black wires back. Slide a piece of heat shrink over the stripped wires on the connector. Solder the BROWN from the connector to the OEM BLACK. Solder the BLACK from the connector to the OEM WHITE. Once done slide the heat shrink down and use a lighter to shrink. Extend the factory wire loom with new and use electrical tape on the ends. <br />
<font color="Red"><b>NOTE:</b> The OEM WHITE wire has a stripe on it, red or orange I don't remember. I'll just refer to it as the OEM WHITE wire.</font><br />
<br />
<br />
Test the connection.<br />
<br />
<br />
Repeat for the other side.<br />
<br />
Final Product.<br />
<br />
<br />
<br />
<br />
<br />



Sent from my iPhone 4S
Reply With Quote
  #30
Old 10-04-2016, 05:05 PM
Member

Join Date: May 2013
Posts: 421
Thanks: 0
Thanked 13 Times in 13 Posts
Rep Power: 1727
botlfed98 is on a distinguished road
Re: LED Liftgate Reverse and Tail Light Install w/pics

Quote:
Originally Posted by padgett View Post
BTW for instructions on removing the tailgate trim panel see the rear view camera .pdf. Steps 1-5 on page 2.

thanks for this write-up guys...going to attempt this tonite!
