First of all...I suggest using the XenonDepot D1S(12-13's) D3S (14+)HID bulbs! They are the only bulbs I will ever use! Top quality and excellent customer service!

http://www.kbcarstuff.com/D1S-Xtreme...b-p/xt-d1s.htm

The initial step...is to remove and isolate the negative battery cable. This can be done by moving the passenger seat all the way forward, lifting up the carpeted cover and pulling it out. Loosen the nut on the negative cable and remove the cable.

DRIVERS SIDE BULB

First step for the drivers side is to remove the airbox and accordian tube. First I unplugged the sensor on the accordian tube.

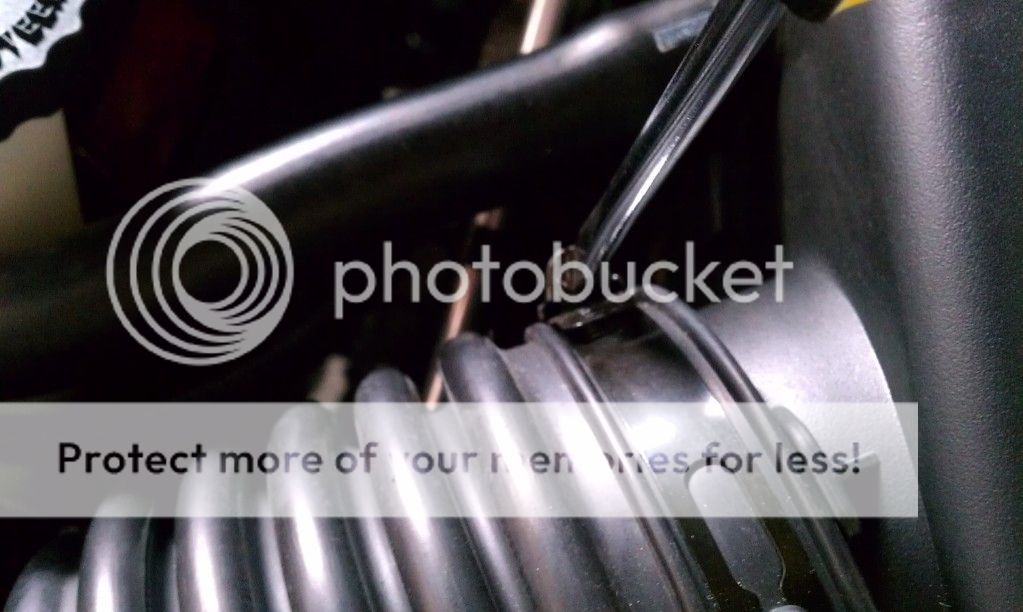

Second...I loosened the screws on each end of the tube and pulled the tube out.

Third...I unclamped the clamps on both ends of the airbox(the end towards the fender. I then lifted the airbox lid and moved it away from the area without disconnecting anything.....just move it out of the way.

Next.....I removed the lower airbox....by just pulling it out. Its not bolted down at all.

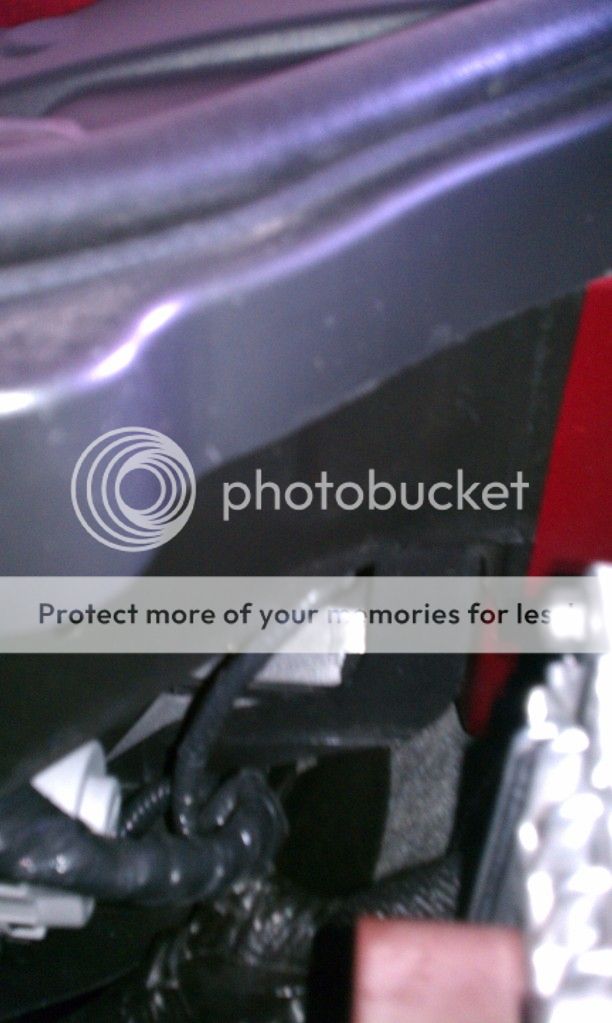

You can see here the small area you have to work with. You can also see the round rubber cover for the bulb. Remove that cover carefully and pull it out. This will expose the bulb. Pull the bulb plug off...then twist the locking mechanism to unlock the bulb from the housing. Pull out bulb and reverse the directions. Use caution when removing and replacing the bulbs. Do NOT touch the bulb glass. I suggest buying a set of nitrite gloves from XenonDepot to handle the bulbs.


Result


PASSENGER SIDE BULB

The passenger side is MUCH simplier.....but just as tight as the drivers side.

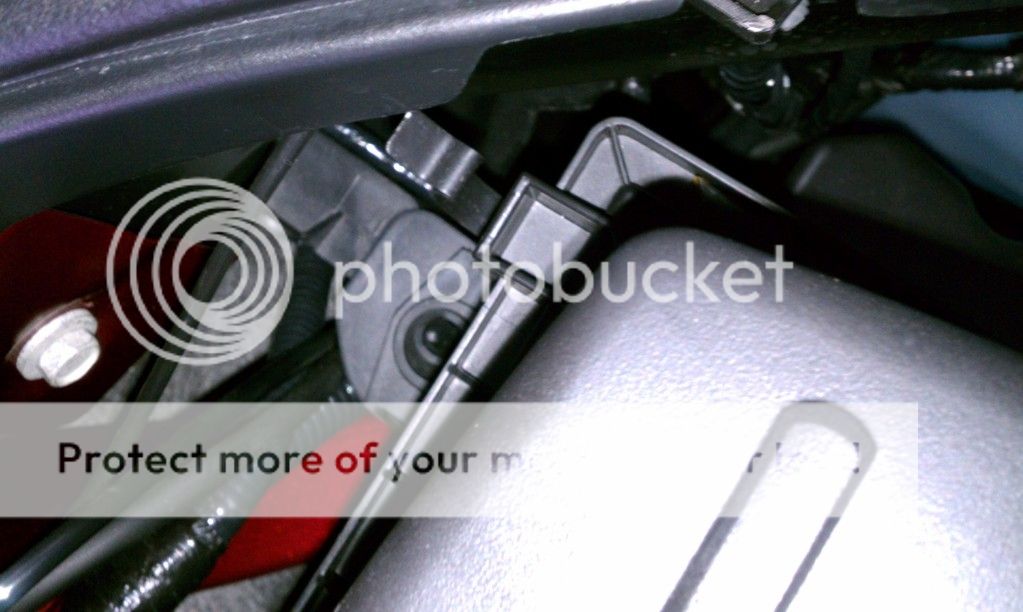

FIRST step is to remove the plugs from the PCM and push them aside, out of the way. You can see the pic below of the PCM. Simply flip the arms up and pull the plugs away. This will allow enough room to access the bulb.

Here is a shot of the bulb area

Your hand and forearm will fit into this area. Simply do the same as the drivers side and remove the bulb cover. Follow the same steps as the drivers side. Remove that cover carefully and pull it out. This will expose the bulb. Pull the bulb plug off...then twist the locking mechanism to unlock the bulb from the housing. Pull out bulb and reverse the directions. Use caution when removing and replacing the bulbs. Do NOT touch the bulb glass. I suggest buying a set of nitrite gloves from XenonDepot to handle the bulbs.

Reverse the above steps being sure the PCM plugs lock down! More pics are coming of the final results.
__________________

__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
2013 Audi A7 premium plus-phantom black sportback
2012 FIAT 500 Sport-daughters Mopar....LOL


Twitter-The_Jeep_Guy
Instagram-thejeep_guy



Reply With Quote
The Following User Says Thank You to Scottina06 For This Useful Post:
  #2
Old 09-28-2012, 09:33 AM
parry69's Avatar
Member

Join Date: Jul 2010
Posts: 264
Thanks: 1
Thanked 1 Time in 1 Post
Rep Power: 1632
parry69 is on a distinguished road
Re: HOW TO: Remove and replace your D1S headlight bulbs

great thread man
__________________

__________________
2012 Silver Jeep SRT8 - completely stock......and loving it

Gone.........but not forgotten
2010 Jeep SRT8 - too many mods to list
Reply With Quote
  #3
Old 09-28-2012, 09:44 AM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,125
Thanks: 729
Thanked 701 Times in 563 Posts
Rep Power: 7716596
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: HOW TO: Remove and replace your D1S headlight bulbs

no problem....lots of how to's coming!
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
2013 Audi A7 premium plus-phantom black sportback
2012 FIAT 500 Sport-daughters Mopar....LOL


Twitter-The_Jeep_Guy
Instagram-thejeep_guy



Reply With Quote
  #4
Old 09-28-2012, 10:15 AM
Mongoose9400's Avatar
Member
My Jeep: 2012 6.4L WK2

Join Date: Feb 2012
Location: Rio Rancho, NM
Posts: 829
Thanks: 0
Thanked 50 Times in 42 Posts
Rep Power: 0
Mongoose9400 is an unknown quantity at this point
Seems simple enough. Thanks for the how to. I haven't changed factory D1S bulbs before but figured it wasn't anything special. Seems the biggest problem is getting to them. With my bwoody the driver side should be just as easy as the passenger side.

What brand are the bulbs that XD sells?


Sent from my iPhone 5
__________________
Reply With Quote
  #5
Old 09-28-2012, 10:29 AM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,125
Thanks: 729
Thanked 701 Times in 563 Posts
Rep Power: 7716596
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: HOW TO: Remove and replace your D1S headlight bulbs

they are XenonDepot brand Xtreme bulbs made with Phllips glass. Be sure to contact Steve(XenonDepot) here on the forums for a much better deal than on his website.

D1S Xtreme HID Bulb | D1S HID Bulb | D1S OEM HID Bulb
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
2013 Audi A7 premium plus-phantom black sportback
2012 FIAT 500 Sport-daughters Mopar....LOL


Twitter-The_Jeep_Guy
Instagram-thejeep_guy



Reply With Quote
  #6
Old 09-28-2012, 10:48 AM
HYTEK's Avatar
Member
My Jeep: 1998 5.9L ZJ

Join Date: Aug 2012
Location: IL
Posts: 392
Thanks: 0
Thanked 6 Times in 5 Posts
Rep Power: 3934
HYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond repute
Which color did you go with? Any side by side pics with the stock bulbs?
__________________
Reply With Quote
  #7
Old 09-28-2012, 10:56 AM
Mongoose9400's Avatar
Member
My Jeep: 2012 6.4L WK2

Join Date: Feb 2012
Location: Rio Rancho, NM
Posts: 829
Thanks: 0
Thanked 50 Times in 42 Posts
Rep Power: 0
Mongoose9400 is an unknown quantity at this point
Re: HOW TO: Remove and replace your D1S headlight bulbs

Quote:
Originally Posted by Scottina06 View Post
they are XenonDepot brand Xtreme bulbs made with Phllips glass. Be sure to contact Steve(XenonDepot) here on the forums for a much better deal than on his website.

D1S Xtreme HID Bulb | D1S HID Bulb | D1S OEM HID Bulb
I already put my order in for my bulbs the other day. I went with these ones


__________________
Reply With Quote
  #8
Old 09-28-2012, 11:37 AM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,125
Thanks: 729
Thanked 701 Times in 563 Posts
Rep Power: 7716596
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: HOW TO: Remove and replace your D1S headlight bulbs

Quote:
Originally Posted by HYTEK View Post
Which color did you go with? Any side by side pics with the stock bulbs?

6000k

stock

6000k
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
2013 Audi A7 premium plus-phantom black sportback
2012 FIAT 500 Sport-daughters Mopar....LOL


Twitter-The_Jeep_Guy
Instagram-thejeep_guy



Reply With Quote
  #9
Old 09-28-2012, 06:33 PM
Member

Join Date: Jan 2011
Posts: 133
Thanks: 0
Thanked 2 Times in 2 Posts
Rep Power: 14421
jcarone has a reputation beyond reputejcarone has a reputation beyond reputejcarone has a reputation beyond reputejcarone has a reputation beyond reputejcarone has a reputation beyond reputejcarone has a reputation beyond reputejcarone has a reputation beyond reputejcarone has a reputation beyond reputejcarone has a reputation beyond reputejcarone has a reputation beyond reputejcarone has a reputation beyond repute
Garage
Re: HOW TO: Remove and replace your D1S headlight bulbs

Does this require Factory HIDs to swap the bulb? Ballasts?

I have a Laredo X with the factory bulbs - this would be a great upgrade if it will work.
__________________
Reply With Quote
  #10
Old 09-28-2012, 06:54 PM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,125
Thanks: 729
Thanked 701 Times in 563 Posts
Rep Power: 7716596
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Yes....this is for oem hid lamps
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
2013 Audi A7 premium plus-phantom black sportback
2012 FIAT 500 Sport-daughters Mopar....LOL


Twitter-The_Jeep_Guy
Instagram-thejeep_guy



Reply With Quote
  #11
Old 09-28-2012, 10:17 PM
HYTEK's Avatar
Member
My Jeep: 1998 5.9L ZJ

Join Date: Aug 2012
Location: IL
Posts: 392
Thanks: 0
Thanked 6 Times in 5 Posts
Rep Power: 3934
HYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond reputeHYTEK has a reputation beyond repute
Looks good Scott!
__________________
Reply With Quote
  #12
Old 09-29-2012, 04:40 PM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,125
Thanks: 729
Thanked 701 Times in 563 Posts
Rep Power: 7716596
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
5000k on 2006 vs. 6000k on 2013
