Receiver hitch adapter

What do you guys use to keep the adapter from slopping around in the receiver when towing? When there is no weight in trailer the adapter is always banging around when you hit a bump. Wondering if Jeep makes a better fit for the receiver? Thanks

Reply With Quote
Sponsored Links
Advertisement

  #2
Old 10-06-2014, 08:07 PM
Todd3.6's Avatar
Member
My Jeep: 2012 3.6L WK2

Join Date: Jul 2012
Location: Twin Cities, MN
Posts: 849
Thanks: 5
Thanked 82 Times in 71 Posts
Rep Power: 350796
Todd3.6 has a reputation beyond reputeTodd3.6 has a reputation beyond reputeTodd3.6 has a reputation beyond reputeTodd3.6 has a reputation beyond reputeTodd3.6 has a reputation beyond reputeTodd3.6 has a reputation beyond reputeTodd3.6 has a reputation beyond reputeTodd3.6 has a reputation beyond reputeTodd3.6 has a reputation beyond reputeTodd3.6 has a reputation beyond reputeTodd3.6 has a reputation beyond repute
Re: Receiver hitch adapter

You basically have two choices.

#1 - buy a ball mount that has a built in tightening device
QuietRide Aluminum Ball Mount w/Lock, 4-3/4" Rise, 6" Drop, 1-1/4" Hole, 10,000 lbs Softride Ball Mounts SR26041

#2 - buy a device to tighten your current mount
Stainless Steel Locking, Anti-Rattle Threaded Hitch Pin for 2" Trailer Hitches Softride Locks SR25219
Reply With Quote
  #3
Old 10-06-2014, 08:13 PM
Jim_in_PA's Avatar
Super Moderator

My Jeep: 2012 5.7L WK2

Join Date: Jul 2012
Location: SE PA (central Bucks County)
Posts: 4,923
Thanks: 919
Thanked 744 Times in 586 Posts
Rep Power: 112879
Jim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond repute
Garage
Re: Receiver hitch adapter

The JGC hitch receiver is slightly generous and I find that ball mount choice can make a difference. I actually have more than one ball mount.

The heavy cast ball mount I use with my horse trailer (2 5/16" ball) doesn't move, bang, wiggle or otherwise many any noise at all. It fits almost snugly in the receiver. It wasn't inexpensive and was purchased from Northern Tool.

The other ball mount that I use with my utility trailer (2" ball) was a typical "economy" purchase from one of the various box stores. I bought it years ago when I had another vehicle that also needed a 4" drop. On my Jeep, it bangs on the bumps and doesn't fit as snugly as it should. If I towed a lot, I'd replace it with another one of the heavy cast ball mounts as above!

There are various ways to quiet a ball mount including very thin stick on sheet rubber, etc.
__________________
2012 GC Overland Summit - Winter Chill with New Saddle interior. 5.7L HEMI V8 - Pirelli Scorpion Verde Plus "shoes" - LED fogs and DRLs



Day-job...Telecom Technical Sales
Avocations...Woodworking, Equestrian, Food, Photography
Reply With Quote
Sponsored Links
Advertisement

  #4
Old 10-06-2014, 08:15 PM
SNUKE's Avatar
Premium Member
My Jeep: 2014 3.0L WK2

Join Date: Jan 2013
Location: Sydney, Aus
Posts: 3,966
Thanks: 147
Thanked 584 Times in 453 Posts
Rep Power: 7660
SNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond repute
Garage
Re: Receiver hitch adapter

It can be difficult enough for some adapters that are manufactured a little larger than normal getting seized in there. If the tolerance were made tighter you would have even more issues when the metal expands or contracts depending on the temperature

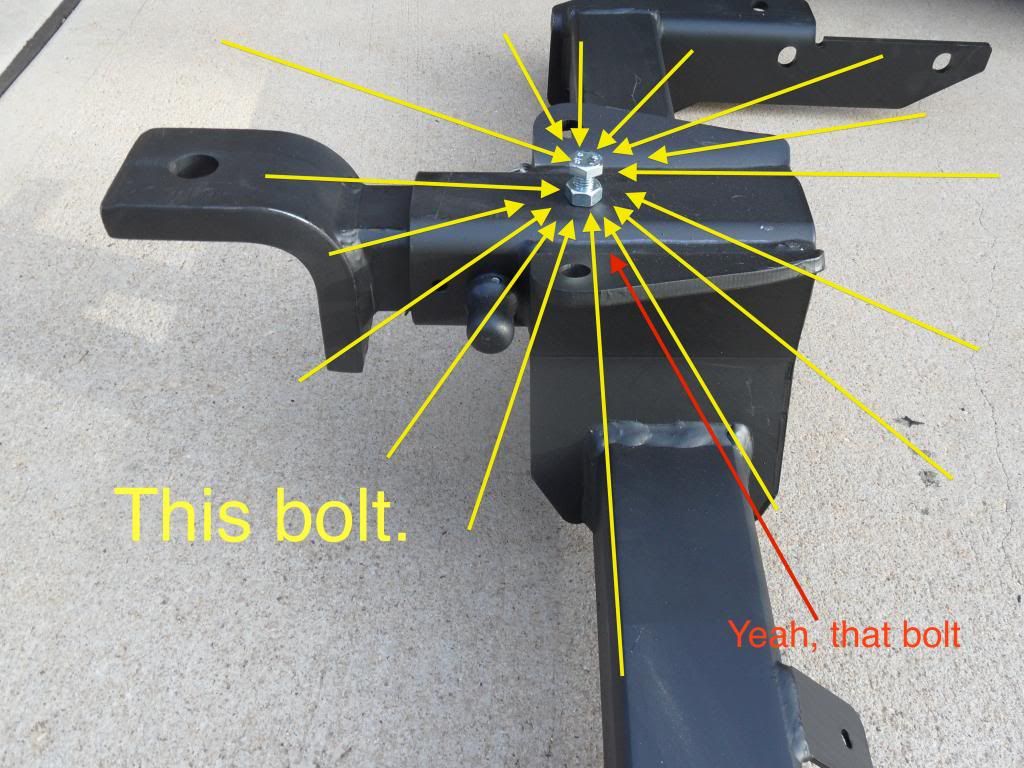

Doesn’t your hitch receiver have a bolt underneath it to remove the play?

This is an Aus spec receiver, so a little different to yours.

__________________
I'm just want it for the "shorter headlamps".

MY14 GC Limited, 3.0 CRD, Lux II, Granite Crystal, 18" Wheels, Tubular Side Steps.
Could I get my avatar much larger?
Ordered: July 7 2013 Delivered Nov 25th
Reply With Quote
  #5
Old 10-06-2014, 09:45 PM
Peter.T's Avatar
Premium Member
My Jeep: 2013 3.0L WK2

Join Date: Sep 2013
Location: Sunshine Coast Queensland Australia
Posts: 146
Thanks: 30
Thanked 73 Times in 38 Posts
Rep Power: 15815
Peter.T has a reputation beyond reputePeter.T has a reputation beyond reputePeter.T has a reputation beyond reputePeter.T has a reputation beyond reputePeter.T has a reputation beyond reputePeter.T has a reputation beyond reputePeter.T has a reputation beyond reputePeter.T has a reputation beyond reputePeter.T has a reputation beyond reputePeter.T has a reputation beyond reputePeter.T has a reputation beyond repute
Re: Receiver hitch adapter

Quote:
Originally Posted by SNUKE View Post
It can be difficult enough for some adapters that are manufactured a little larger than normal getting seized in there. If the tolerance were made tighter you would have even more issues when the metal expands or contracts depending on the temperature

Doesn’t your hitch receiver have a bolt underneath it to remove the play?

This is an Aus spec receiver, so a little different to yours.

In my experience these bolts are basically useless. After a few trips towing with the extra leverage on the shank the bolt either becomes loose or the threads burr over and they become impossible to move. I have seen the locking nuts welded onto the receiver but this tends to be very temporary.

I have tried stainless steel shims and these do work to a certain degree but probably the best solution is to make a couple of welds about 20mm long on the shank and then grind them off to give the shank a snug fit in the receiver.

Pete
Reply With Quote
  #6
Old 10-06-2014, 10:08 PM
padgett's Avatar
Premium Member

Join Date: Feb 2012
Location: Orlando
Posts: 1,883
Thanks: 0
Thanked 60 Times in 55 Posts
Rep Power: 82517
padgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond reputepadgett has a reputation beyond repute
Re: Receiver hitch adapter

I just use a wrap or two of racer tape.

This has 6 months, 8 trips (3500 lb camper and 6x12 tandem axle u-haul), dozen r&rs (stores next to jack when not towing), & about 1,000 miles onnit.
Attached Images
File Type: jpg hitchwrap.jpg (31.6 KB, 36 views)
Reply With Quote
  #7
Old 10-07-2014, 08:04 AM
Member

Join Date: Apr 2014
Posts: 16
Thanks: 1
Thanked 0 Times in 0 Posts
Rep Power: 1172
Rracing is on a distinguished road
Re: Receiver hitch adapter

Great ideas! Thanks for all the replies.
Reply With Quote
  #8
Old 10-07-2014, 06:12 PM
SNUKE's Avatar
Premium Member
My Jeep: 2014 3.0L WK2

Join Date: Jan 2013
Location: Sydney, Aus
Posts: 3,966
Thanks: 147
Thanked 584 Times in 453 Posts
Rep Power: 7660
SNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond reputeSNUKE has a reputation beyond repute
Garage
Re: Receiver hitch adapter

Quote:
Originally Posted by Peter.T View Post
In my experience these bolts are basically useless. After a few trips towing with the extra leverage on the shank the bolt either becomes loose or the threads burr over and they become impossible to move.
10 Months of this current one, with about 15-20 tow trips of 1.5-2 tonne and there is no signs of any issues with the bolt, and the adapter is still solid as hell.
This was the same as my Pajero which we had for 8 years and it never developed play or made it difficult to remove adapter.
__________________
I'm just want it for the "shorter headlamps".

MY14 GC Limited, 3.0 CRD, Lux II, Granite Crystal, 18" Wheels, Tubular Side Steps.
Could I get my avatar much larger?
Ordered: July 7 2013 Delivered Nov 25th
Reply With Quote
  #9
Old 10-07-2014, 07:01 PM
Jim_in_PA's Avatar
Super Moderator

My Jeep: 2012 5.7L WK2

Join Date: Jul 2012
Location: SE PA (central Bucks County)
Posts: 4,923
Thanks: 919
Thanked 744 Times in 586 Posts
Rep Power: 112879
Jim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond repute
Garage
Re: Receiver hitch adapter

Snuke, the challenge for the North American hitch receiver in the bumper to implement that bolt would be clearance to drill and tap for the bolt, especially on the top...

__________________
2012 GC Overland Summit - Winter Chill with New Saddle interior. 5.7L HEMI V8 - Pirelli Scorpion Verde Plus "shoes" - LED fogs and DRLs



Day-job...Telecom Technical Sales
Avocations...Woodworking, Equestrian, Food, Photography
Reply With Quote
  #10
Old 10-07-2014, 08:12 PM
Barboots's Avatar
Senior Member
My Jeep: 2014 3.0L WK2

Join Date: Aug 2013
Location: Perth, Western Australia
Posts: 2,493
Thanks: 143
Thanked 360 Times in 305 Posts
Rep Power: 42612
Barboots has disabled reputation
Re: Receiver hitch adapter

The bolt is in the bottom of the receiver Jim... Snuke's photo is upside down due to our location.

Doesn't that plastic shroud piece detach from the bumper pretty easily?

If I was drilling and tapping a system, I'd fit two bolts... one diagonally into each bottom corner of the receiver. This would stop movement in both directions very effectively.

For what it's worth, I believe that the bolt on the Aussie system flogs out due to sideways movement, which it is unable to properly control. Multi axle trailers apply erratic side force on the receiver due to their desire to roll straight. Unless I torque the crap out of the bolt, my dual axle boat trailer produces heaps of knocking at the hitch, whereas my single axle caravan produces no noise even when the bolt is only finger-tight.

Cheers,
Steve
__________________
2014 Overland CRD
Perth, Western Australia
Reply With Quote
  #11
Old 10-08-2014, 09:47 AM
Jim_in_PA's Avatar
Super Moderator

My Jeep: 2012 5.7L WK2

Join Date: Jul 2012
Location: SE PA (central Bucks County)
Posts: 4,923
Thanks: 919
Thanked 744 Times in 586 Posts
Rep Power: 112879
Jim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond reputeJim_in_PA has a reputation beyond repute
Garage
Re: Receiver hitch adapter

I missed the upside-down thing, Barboots... thanks for the clarification. That said, I'm not sure that removing the bumper cover is trivial since it's the size of the whole bumper.
__________________
2012 GC Overland Summit - Winter Chill with New Saddle interior. 5.7L HEMI V8 - Pirelli Scorpion Verde Plus "shoes" - LED fogs and DRLs



Day-job...Telecom Technical Sales
Avocations...Woodworking, Equestrian, Food, Photography
Reply With Quote
  #12
Old 10-09-2014, 06:44 PM
Shannon's Avatar
Premium Member
My Jeep: 2016 3.0L WK2

Join Date: May 2013
Location: Lakeville, MN
Posts: 1,602
Thanks: 234
Thanked 226 Times in 146 Posts
Rep Power: 11720
Shannon has a reputation beyond reputeShannon has a reputation beyond reputeShannon has a reputation beyond reputeShannon has a reputation beyond reputeShannon has a reputation beyond reputeShannon has a reputation beyond reputeShannon has a reputation beyond reputeShannon has a reputation beyond reputeShannon has a reputation beyond reputeShannon has a reputation beyond reputeShannon has a reputation beyond repute
Re: Receiver hitch adapter

I used a J pin locking mechanism. I had to drill one hole on the side for the j to fit into. There was plenty of room to do this. I still had a little up and down play, so I welded a strip down the ball mount, and filed it down so it slides in perfectly. When tightened, there is no play.
