removing 2014+ steering wheel

does anyone know where there is a DIY for Steering wheel removal for 2014 and up wk2? Thanks!

__________________
2017 White Knuckle Dodge Durango R/T
Reply With Quote
Sponsored Links
Advertisement

  #2
Old 04-06-2015, 11:02 PM
210hawkeye's Avatar
Member
My Jeep: 2012 5.7L WK2

Join Date: Oct 2013
Location: Central Wisconsin
Posts: 126
Thanks: 0
Thanked 8 Times in 8 Posts
Rep Power: 1478
210hawkeye is on a distinguished road
Garage
Re: removing 2014+ steering wheel

Why are you looking to replace the Steering Wheel?



Sent from my iPod touch using JeepGarage
Reply With Quote
  #3
Old 04-07-2015, 08:56 PM
howiestt's Avatar
Member
My Jeep: 2014 5.7L WK2

Join Date: Nov 2011
Location: Brooklyn
Posts: 212
Thanks: 30
Thanked 13 Times in 12 Posts
Rep Power: 2275
howiestt is on a distinguished road
Re: removing 2014+ steering wheel

changing to SRT wheel
__________________
2017 White Knuckle Dodge Durango R/T
Reply With Quote
Sponsored Links
Advertisement

  #4
Old 04-08-2015, 12:34 AM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 54,057
Thanks: 2,468
Thanked 2,835 Times in 1,760 Posts
Rep Power: 7791213
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Remove negative on battery.
The airbag is removed by using the holes on the back.of the wheel. You may not be able.to see them....but you can feel them. Then you need a flat bladed screw driver to.pop each side.of the airbag spring to.release it. Once released

..just unplus everything from.airbag. them youll see a huge torq bolt....remove and then use a steeringbwheel puller to pull wheel away from truck. You may have to.swap.some wires over etc.
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED" 1 of 1
2013 JKU Wrangler 10A-stormtrooper'ed, JW Speaker and more!
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #5
Old 04-08-2015, 06:14 PM
Premium Member

Join Date: Dec 2010
Location: Staten Island, NY
Posts: 256
Thanks: 0
Thanked 22 Times in 19 Posts
Rep Power: 2633
ufokillerz is on a distinguished road
Re: removing 2014+ steering wheel

any luck with this?
i actually have a 2014 srt wheel with all the wires and buttons and air bag. i have attempted to remove the large ass hex head screw. i am getting to the point where my screw head is stripping and i have gotten the thing to barely budge.
I was damn near ready to install it today... but the hex screw got me good. Had a nice beefy 10mm hex socket. and a nice 3/8" torque wrench. The only thing i dont have is a impact wrench..

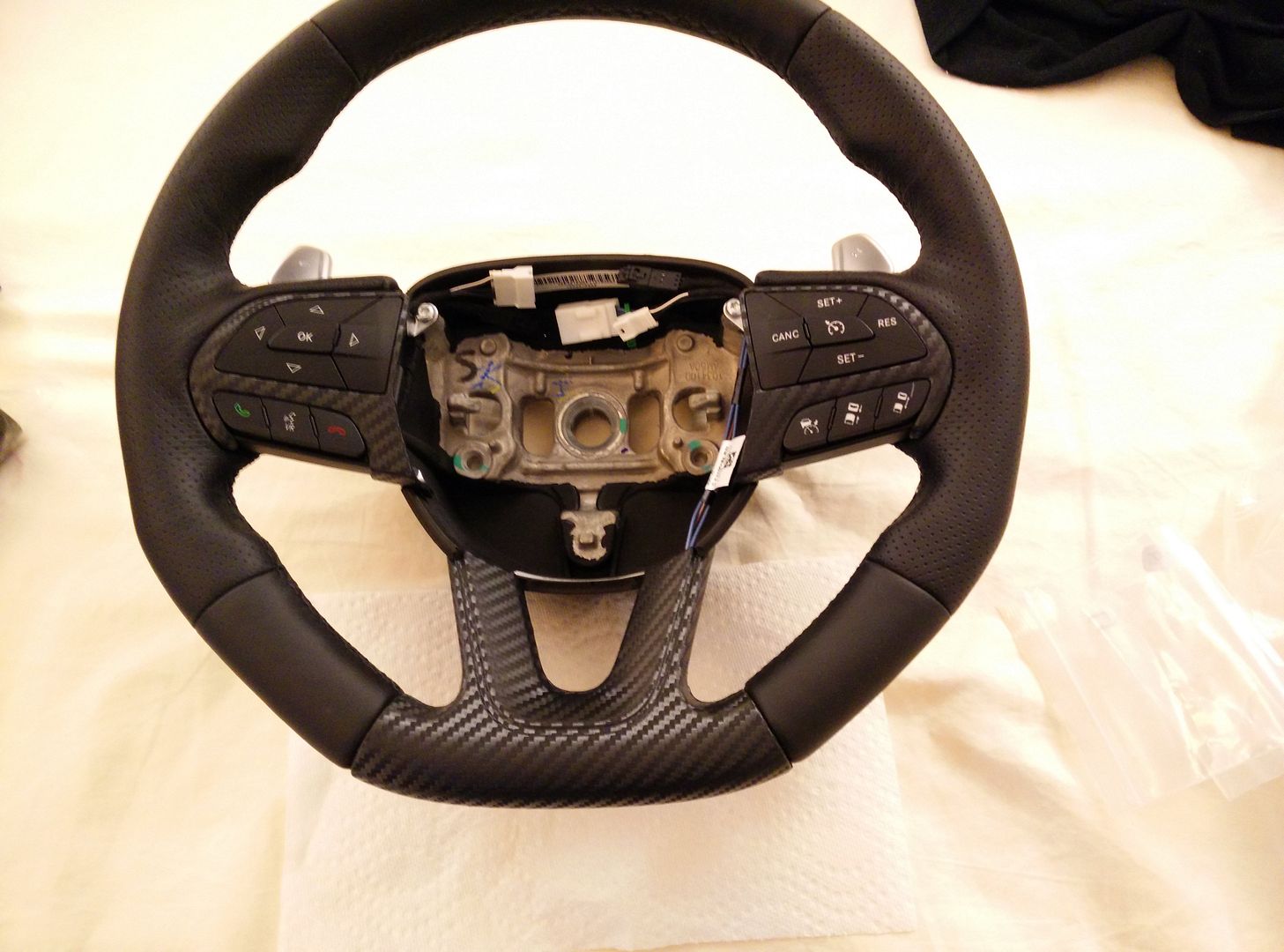

got it wrapped up nicely and ready to install too

round 3 for me tomorrow, fingers crossed. have a 1/2" impact wrench. 25" 1/2" breaker bar, and 10mm 1/2" hex. Lucky i bought a replacement screw in case i needed one.

i am just wondering if there was a possibility of some sort of screw somewhere being used to lock this large hex screw in.
__________________
Ripp Supercharged 2014 Durango R/T
420hp at the Wheels
SRT Brembo Brakes
SRT Spider Monkey Wheels W/Runflats
Reply With Quote
  #6
Old 04-09-2015, 10:11 AM
howiestt's Avatar
Member
My Jeep: 2014 5.7L WK2

Join Date: Nov 2011
Location: Brooklyn
Posts: 212
Thanks: 30
Thanked 13 Times in 12 Posts
Rep Power: 2275
howiestt is on a distinguished road
Re: removing 2014+ steering wheel

wow its that hard to remove the bolt huh? May just pay a shop to do it. It was pretty easy on my x5 when i swapped wheels, but it seems like a lot of trouble on the jeep....

@ufokillerz, nice wheel wrap! ill let you know when i get mine installed, if there are any tricks..
__________________
2017 White Knuckle Dodge Durango R/T
Reply With Quote
  #7
Old 04-09-2015, 10:23 AM
SilverBillet's Avatar
Senior Member

Join Date: Jan 2014
Posts: 2,099
Thanks: 2
Thanked 486 Times in 335 Posts
Rep Power: 32860
SilverBillet has a reputation beyond reputeSilverBillet has a reputation beyond reputeSilverBillet has a reputation beyond reputeSilverBillet has a reputation beyond reputeSilverBillet has a reputation beyond reputeSilverBillet has a reputation beyond reputeSilverBillet has a reputation beyond reputeSilverBillet has a reputation beyond reputeSilverBillet has a reputation beyond reputeSilverBillet has a reputation beyond reputeSilverBillet has a reputation beyond repute
Garage
Re: removing 2014+ steering wheel

Correct me if im wrong but I thought some functionality was lost when swapping to SRT wheel.
Reply With Quote
  #8
Old 04-09-2015, 12:09 PM
Premium Member

Join Date: Dec 2010
Location: Staten Island, NY
Posts: 256
Thanks: 0
Thanked 22 Times in 19 Posts
Rep Power: 2633
ufokillerz is on a distinguished road
Re: removing 2014+ steering wheel

Quote:
Originally Posted by howiestt View Post
wow its that hard to remove the bolt huh? May just pay a shop to do it. It was pretty easy on my x5 when i swapped wheels, but it seems like a lot of trouble on the jeep....

@ufokillerz, nice wheel wrap! ill let you know when i get mine installed, if there are any tricks..
i got it done today. my original screw was stripped by the factory. Was very hard to remove. I was wondering my my old wheel was a bit wobbly.


I think that if your original screw was installed correctly, its a breeze. Only takes maybe 10-15 mins to swap.
__________________
Ripp Supercharged 2014 Durango R/T
420hp at the Wheels
SRT Brembo Brakes
SRT Spider Monkey Wheels W/Runflats
Reply With Quote
  #9
Old 04-09-2015, 12:12 PM
Premium Member

Join Date: Dec 2010
Location: Staten Island, NY
Posts: 256
Thanks: 0
Thanked 22 Times in 19 Posts
Rep Power: 2633
ufokillerz is on a distinguished road
Re: removing 2014+ steering wheel

Quote:
Originally Posted by MOFSTEEL View Post
Correct me if im wrong but I thought some functionality was lost when swapping to SRT wheel.
i think you keep all functionality. I swapped into a Durango, so i might have some wiring differences i need to figure out.
My ACC/FCW system needs service again, i believe its from the rain and not related to steering wheel. Will test functionality when back.
Everything else works, paddles, left side of steering wheel controls, and all the buttons by the paddles.
My heated wheel does not seem to work, but maybe its due to the heat settings and it being somewhat warm out. The heated wheel was the biggest wiring difference for me which required buying the srt harness.
__________________
Ripp Supercharged 2014 Durango R/T
420hp at the Wheels
SRT Brembo Brakes
SRT Spider Monkey Wheels W/Runflats
Reply With Quote
  #10
Old 04-09-2015, 12:53 PM
howiestt's Avatar
Member
My Jeep: 2014 5.7L WK2

Join Date: Nov 2011
Location: Brooklyn
Posts: 212
Thanks: 30
Thanked 13 Times in 12 Posts
Rep Power: 2275
howiestt is on a distinguished road
Re: removing 2014+ steering wheel

yeah wheel heating harness is different, Nick (trelos) had this done a while back
__________________
2017 White Knuckle Dodge Durango R/T
Reply With Quote
  #11
Old 04-09-2015, 12:54 PM
howiestt's Avatar
Member
My Jeep: 2014 5.7L WK2

Join Date: Nov 2011
Location: Brooklyn
Posts: 212
Thanks: 30
Thanked 13 Times in 12 Posts
Rep Power: 2275
howiestt is on a distinguished road
Re: removing 2014+ steering wheel

ufokillerz, what did you have to do to make a harness for the heating? any pics of the mod? part #s?
__________________
2017 White Knuckle Dodge Durango R/T
Reply With Quote
  #12
Old 04-09-2015, 02:42 PM
Premium Member

Join Date: Dec 2010
Location: Staten Island, NY
Posts: 256
Thanks: 0
Thanked 22 Times in 19 Posts
Rep Power: 2633
ufokillerz is on a distinguished road
Re: removing 2014+ steering wheel

Quote:
Originally Posted by howiestt View Post
ufokillerz, what did you have to do to make a harness for the heating? any pics of the mod? part #s?
haven't done it yet. i need to find some wiring diagrams to figure it out. I just bought the SRT harness as that was the simplest thing for me to do. From pictures, i can tell that the regular WK2 wiring should be the same as my durango wiring. And the SRT does the heating element differently which requires a different plug for the heater.
I will have to get this figured out, but if you figure out before me, please do post! I'm guessing i will just have to work on the SRT harness a bit to figure it out, hopefully.

the srt harness should be plug and play, all the connectors needed are there. But i'm guessing somewhere the heating wiring is different.
__________________
Ripp Supercharged 2014 Durango R/T
420hp at the Wheels
SRT Brembo Brakes
SRT Spider Monkey Wheels W/Runflats
Reply With Quote
