Part # for Female Plug - SRT8 rear fogs

I am in the process of building my own wiring harness for the SRT8 rear fog lamps but I am having trouble finding the correct Delphi part number for the female plug that goes into the lamp socket. If anyone has constructed their own wiring harness and knows which female plug fits it I would appreciate the info.

Thanks in advance.





__________________

__________________

2006 Jeep Grand Cherokee Overland 5.7L, BT Catch Can, SRT Eibach Pro Kit, 20" SRT Factory Repros, SRT Front Bumper and Side Skirts, LED interior lighting, SRT aluminum interior trim, Shorty Billet Antenna, SRT intake
Reply With Quote
  #2
Old 01-18-2013, 10:52 PM
therock2's Avatar
Member
My Jeep: 2006 5.7L WK

Join Date: Feb 2010
Location: Colorado
Posts: 206
Thanks: 0
Thanked 1 Time in 1 Post
Rep Power: 2074
therock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond repute
Re: Part # for Female Plug - SRT8 rear fogs

I think I'm getting close. Just need a part # confirmation since I don't have one to try in the socket.

__________________

__________________

2006 Jeep Grand Cherokee Overland 5.7L, BT Catch Can, SRT Eibach Pro Kit, 20" SRT Factory Repros, SRT Front Bumper and Side Skirts, LED interior lighting, SRT aluminum interior trim, Shorty Billet Antenna, SRT intake
Reply With Quote
  #3
Old 01-18-2013, 11:13 PM
ItsAJeepThing's Avatar
Senior Member
My Jeep: 2009 3.7L WK

Join Date: Jun 2009
Location: BROOKLYN, NYC
Posts: 1,006
Thanks: 7
Thanked 12 Times in 12 Posts
Rep Power: 388311
ItsAJeepThing has a reputation beyond reputeItsAJeepThing has a reputation beyond reputeItsAJeepThing has a reputation beyond reputeItsAJeepThing has a reputation beyond reputeItsAJeepThing has a reputation beyond reputeItsAJeepThing has a reputation beyond reputeItsAJeepThing has a reputation beyond reputeItsAJeepThing has a reputation beyond reputeItsAJeepThing has a reputation beyond reputeItsAJeepThing has a reputation beyond reputeItsAJeepThing has a reputation beyond repute
Re: Part # for Female Plug - SRT8 rear fogs

Interesting. I would like to know the part # for that as well. Wouldnt mind making my own harness.
__________________
1999 Jeep Grand Cherokee Laredo I6 4.0 227k miles SOLD 10/13/11
2009 Jeep Grand Cherokee Limited V6 3.7 29k miles
SRT8 Front/Rear bumpers, SRT resonators/tips, Flowmaster Super 44 series muffler, KnN 77 series CAI, 8000k HIDs Lows/Fogs, Brilliant Black SRT Grill, 22" Gloss Black SRT Reps, 20% Tints, and a lot more to come =]


Reply With Quote
  #4
Old 01-27-2013, 09:55 AM
antsjeep's Avatar
Member
My Jeep: 2008 3.7L WK

Join Date: Feb 2010
Location: Long Island, NY
Posts: 762
Thanks: 0
Thanked 12 Times in 10 Posts
Rep Power: 8705
antsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond repute
Re: Part # for Female Plug - SRT8 rear fogs

Tail light solutions sell complete harnesses for rear fog conversions on all SRT8 WK's. They MIGHT be willing to sell just that plug. Guys name is Ken.

http://taillight.xglobal.net/wk1_gc_parts.htm

**EDIT** here is a pic of the actual plug they use for the rear fog harness BUT FOR '07-'10**


__________________
2008 WK Laredo 4x4
RC 2.5" Lift, Bilstein HD, Monroe LL, 265/70/17 General Grabber AT2, JK Moabs, 1.25" spacers, K&N 57 Series, PW Mod,
DDM 5k Lows, VLED 6K LED Fogs, Stillen Covers, 15% front tint, BA System, Infinity 3.5" dash, JL Audio 250/1 & StealthBox
Reply With Quote
  #5
Old 01-27-2013, 11:18 AM
therock2's Avatar
Member
My Jeep: 2006 5.7L WK

Join Date: Feb 2010
Location: Colorado
Posts: 206
Thanks: 0
Thanked 1 Time in 1 Post
Rep Power: 2074
therock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond repute
Re: Part # for Female Plug - SRT8 rear fogs

That's the plug I'm looking for! Any other photos of the end of it you can post? I need to see the shape of the end of the plug that goes into the lamp socket.
I have a great source for connector plugs.
Thanks.
__________________

2006 Jeep Grand Cherokee Overland 5.7L, BT Catch Can, SRT Eibach Pro Kit, 20" SRT Factory Repros, SRT Front Bumper and Side Skirts, LED interior lighting, SRT aluminum interior trim, Shorty Billet Antenna, SRT intake
Reply With Quote
  #6
Old 01-27-2013, 03:32 PM
antsjeep's Avatar
Member
My Jeep: 2008 3.7L WK

Join Date: Feb 2010
Location: Long Island, NY
Posts: 762
Thanks: 0
Thanked 12 Times in 10 Posts
Rep Power: 8705
antsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond reputeantsjeep has a reputation beyond repute
Re: Part # for Female Plug - SRT8 rear fogs

you'd have to look on their website under the install guides (PDF) and it will show a few more pics of that plug.
__________________
2008 WK Laredo 4x4
RC 2.5" Lift, Bilstein HD, Monroe LL, 265/70/17 General Grabber AT2, JK Moabs, 1.25" spacers, K&N 57 Series, PW Mod,
DDM 5k Lows, VLED 6K LED Fogs, Stillen Covers, 15% front tint, BA System, Infinity 3.5" dash, JL Audio 250/1 & StealthBox
Reply With Quote
  #7
Old 01-28-2013, 05:43 PM
therock2's Avatar
Member
My Jeep: 2006 5.7L WK

Join Date: Feb 2010
Location: Colorado
Posts: 206
Thanks: 0
Thanked 1 Time in 1 Post
Rep Power: 2074
therock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond repute
Re: Part # for Female Plug - SRT8 rear fogs

I'm getting closer to finding the correct plug thanks to the help from antsjeep.

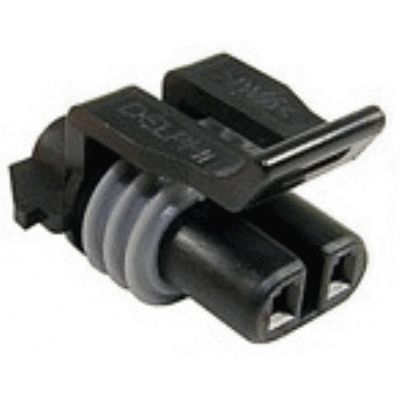

It may be this plug. I'm going to order a couple to try out. I'll let you know.

MPS150-2F
__________________

2006 Jeep Grand Cherokee Overland 5.7L, BT Catch Can, SRT Eibach Pro Kit, 20" SRT Factory Repros, SRT Front Bumper and Side Skirts, LED interior lighting, SRT aluminum interior trim, Shorty Billet Antenna, SRT intake
Reply With Quote
  #8
Old 02-18-2013, 12:03 AM
Member

Join Date: Feb 2011
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 1301
Verdade is on a distinguished road
Re: Part # for Female Plug - SRT8 rear fogs

Did you try them? How is the fit?


-
__________________
Reply With Quote
  #9
Old 02-18-2013, 12:17 AM
Hitchhiking
My Jeep: 2008 6.1L SRT8

Join Date: Nov 2011
Location: middleburg fl
Posts: 909
Thanks: 0
Thanked 10 Times in 10 Posts
Rep Power: 0
kennzz05 has a reputation beyond reputekennzz05 has a reputation beyond reputekennzz05 has a reputation beyond reputekennzz05 has a reputation beyond reputekennzz05 has a reputation beyond reputekennzz05 has a reputation beyond reputekennzz05 has a reputation beyond reputekennzz05 has a reputation beyond reputekennzz05 has a reputation beyond reputekennzz05 has a reputation beyond reputekennzz05 has a reputation beyond repute
Re: Part # for Female Plug - SRT8 rear fogs

i know this sounds tacky but couldnt you just solder wires on the end of those pins and make youre own plugs with some type of more common plugs and seal up youre solder work with heatshrink
__________________
Reply With Quote
  #10
Old 02-18-2013, 10:31 AM
therock2's Avatar
Member
My Jeep: 2006 5.7L WK

Join Date: Feb 2010
Location: Colorado
Posts: 206
Thanks: 0
Thanked 1 Time in 1 Post
Rep Power: 2074
therock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond reputetherock2 has a reputation beyond repute
Re: Part # for Female Plug - SRT8 rear fogs

Update. The second plug (gray and black) MPS150-2F is the correct plug. Snaps right on with a nice tight seal. The only problem is that there isn't a metal connector inside that makes contact with the metal pin inside the socket. I may just enlarge the hole at the end of the connector and pass the two wires through and solder the ends on to the pins and then slide the plug back into the socket. The biggest issue with the rear fog lamps that I've read is with water getting into the socket and corroding the whole assembly. At least with this sealed plug I can be assured that water won't get in (or as easily). I can then seal up the ends where the wires enter the plug with some silicone sealant for extra protection.

kennzz05, this is more along the lines of your idea. I'll be putting it all together in the next week or two so I'll keep you informed. I'm figuring about $25 in parts by the time I'm done.
__________________

2006 Jeep Grand Cherokee Overland 5.7L, BT Catch Can, SRT Eibach Pro Kit, 20" SRT Factory Repros, SRT Front Bumper and Side Skirts, LED interior lighting, SRT aluminum interior trim, Shorty Billet Antenna, SRT intake
Reply With Quote
  #11
Old 02-26-2013, 11:41 PM
Diboblo's Avatar
Member

Join Date: May 2011
Location: Riverside, California
Posts: 314
Thanks: 45
Thanked 22 Times in 17 Posts
Rep Power: 16875
Diboblo has a reputation beyond reputeDiboblo has a reputation beyond reputeDiboblo has a reputation beyond reputeDiboblo has a reputation beyond reputeDiboblo has a reputation beyond reputeDiboblo has a reputation beyond reputeDiboblo has a reputation beyond reputeDiboblo has a reputation beyond reputeDiboblo has a reputation beyond reputeDiboblo has a reputation beyond reputeDiboblo has a reputation beyond repute
Re: Part # for Female Plug - SRT8 rear fogs

Had a long conversation with Clint at The Electrical Depot about the connector for these fogs... Here's what we came up with:

Here are the part numbers to build the connectors you need for the lights:

12052641 Bag of 5 3.85 2 Way Metri-Pack Female Connector


12048086 Bag of 25 1.81 Cable Seals..... required


12048074 Bag of 25 3.21 18-16 Female Terminals

You'll also need the crimping tool, to make a good connection and allow the terminals to fit properly into the housing:



HT-11 1 @ $33.18 Crimp tool for termianl and cable seal

This is to make a complete connector as shown in post #7, which has been confirmed to fit, properly.

Parts can be found at:

theelectricaldepot.com

Hope this helps, guys!

Bob



__________________
Reply With Quote
  #12
Old 02-27-2013, 03:22 PM
CPT2010's Avatar
Senior Member
My Jeep: 2005 5.7L WK

Join Date: May 2010
Location: New Orleans
Posts: 1,198
Thanks: 0
Thanked 5 Times in 5 Posts
Rep Power: 2811
CPT2010 has a reputation beyond reputeCPT2010 has a reputation beyond reputeCPT2010 has a reputation beyond repute
Re: Part # for Female Plug - SRT8 rear fogs

What type of bulb fits in the rear fogs?
Mine didnt come with any and need to pick some up.

Thanks
__________________

__________________
2005 WK 5.7 Limited / AFE CAI / Powerstick exhaust / predator tuned / Gloss black viper rims / Tinted tails / 6K lows and fogs / SRT8 front bumper / custom side rails ;) / 5% tint all around / Custom stereo / pioneer 4300dvd / neon accent lighting / Green/white halo's

Coming soon- 180 thermostat./ or a jeep srt8
