Cool How to-2008 OEM Jeep Grand Cherokee HID headlights on an 05-07

Just finished what I should have done in the first place. I used the 08 stock D1S bulbs and ballasts in my 08 headlight assembly retrofit. Believe it or not...if you buy the 08 assemblies and they come with the bulbs...all you need to make them work in a 05-07 WK....is a HID relay harness!(you can get them for $19.95 fron dxhid.com) I also used liquid tape(awesome stuff), electrical tape, heat shrink sleeves and plastic ties.

I have many pics below...so if you have any questions...please include the pic #. But...this is very, very easy.....and if I can do it...anyone can.

#1-this is the back of the 08 drivers lamp. The power and ground for the ballast is circled in red with the arrow pointing...

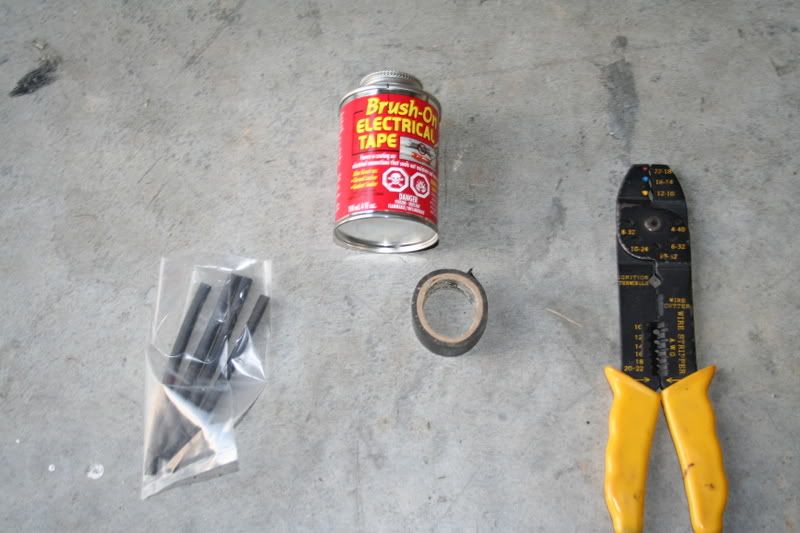

#2-tools and supplies needed

#3-d1s bulb plugged in

#4-d1s bulb installed-

#5-on the passenger side lamp...there are 8-10 wires going into the lamp. Just pull the rubber stopper out and trace the wires going to the ballast. On my lamp...they happened to be black(ground) and dark grey(power). the drivers side just has two wires going into the rubber stopper...they are also grey and black.

#6-In these pics....I stripped the wires and connected the relay harness to the lamp. On my harness I had to cut the plug off that went to the HID bulb(9006 kit) and then I wired the green to the power and the black to the ground...which then I connected to the fender grounding location. I used the liquid tape on the open wires and then the heat shrink tape on top of that. I then plugged the relay harness into the 9006 plug from the truck harness and routed the relay harness to the positive on the battery. the drivers side is the same procedure.


__________________

__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2013 JKU 10th anniversary-white
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #2
Old 05-29-2009, 11:23 PM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,975
Thanks: 854
Thanked 872 Times in 645 Posts
Rep Power: 7717579
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: 2008 OEM HID headlights on an 05-07

pics coming guys!
__________________

__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2013 JKU 10th anniversary-white
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #3
Old 06-25-2009, 10:50 AM
streetmike's Avatar
Member

Join Date: Jun 2009
Location: MI
Posts: 47
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 1934
streetmike is on a distinguished road
Re: 2008 OEM Jeep Grand Cherokee HID headlights on an 05-07

Isn't there a gap though when installed on the older wk's?
__________________
Reply With Quote
  #4
Old 06-25-2009, 11:49 AM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,975
Thanks: 854
Thanked 872 Times in 645 Posts
Rep Power: 7717579
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: 2008 OEM Jeep Grand Cherokee HID headlights on an 05-07

yes there is.....BUT I made some custom "humps" as I like to call them and had them painted to match. I am now in the process of adding the 08-09 SRT bumper. But others i have helped with this have painted the bottom of the lamp to match and used vinyl to over the gap. The stillen covers are also a way to cover thje gap.
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2013 JKU 10th anniversary-white
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #5
Old 06-25-2009, 11:54 AM
White WK Swagga's Avatar
Senior Member
My Jeep: 2009 3.7L WK

Join Date: May 2009
Location: East WishAN*ggaWoods, NY
Posts: 14,384
Thanks: 8
Thanked 5 Times in 5 Posts
Rep Power: 16534
White WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond repute
Re: 2008 OEM Jeep Grand Cherokee HID headlights on an 05-07

Looks good Scott. The finished product will look sick!!! Are you going to leave the chrome molding trim on your truck or have it painted? I know a lot of guys have or want them painted but I like the OEM chrome accents trim.
__________________
The fallen......

09 WK Limited, 3.7 w/ Nav (MYGIG) W/ ipod, Single Kicker 12" CVX sub-ZX750 amp, 20" chrome SRT reps,front & reat SRT sway bars, V-LED interior & license plate, LED cargo light, Dual LED turn bulbs, painted headlight reflector covers, 5k HID lows, 3.5k/5k fogs, K&N Drop in filter, Shorty antenna, Tinted Tails & 3rd brake light, debadged.....
Reply With Quote
  #6
Old 06-25-2009, 11:57 AM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,975
Thanks: 854
Thanked 872 Times in 645 Posts
Rep Power: 7717579
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: 2008 OEM Jeep Grand Cherokee HID headlights on an 05-07

I havent decided yet...that little piece of chrome is like $150....and I couldnt get my old one off....LOL
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2013 JKU 10th anniversary-white
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #7
Old 06-25-2009, 12:03 PM
B.P.O.D's Avatar
RockNrolla/JG Founder

My Jeep: 2008 3.7L WK

Join Date: May 2009
Location: Bergen County, NJ / Bushkill, PA
Posts: 14,644
Thanks: 3
Thanked 9 Times in 8 Posts
Rep Power: 16666
B.P.O.D has disabled reputation
Send a message via AIM to B.P.O.D
Re: 2008 OEM Jeep Grand Cherokee HID headlights on an 05-07

how do you like the liquid electric tape??? i was thinking about it but just couldnt get my self to get it!
__________________
Irfan "Showing off is the fool's idea of glory."
can you beat me in a fight??? http://dreamps.mybrute.com
member of Black, Tri-State, 6 cylinder club 08 Brilliant Black Laredo (JG 3.7L Squad)- k+n 63-1545,magnaflow 10436,mygig(ren), HID's 6k lows, 6k+3k fogs,dual turn leds,led brows,v-led interior leds, cargo led strip, reverse hids, 92 led brake lights, tinted tails,custom powder coated mesh grill, srt sways, 15% tinted windows,illuminated visors,shorty antenna, HH Class III, cargo liner, thule snowboard rack,kayak rack, bike rack

Future mods - color matched side mirrors, black srt reps

My 1-step correction writeup

How To - LED BROW

Reply With Quote
  #8
Old 06-25-2009, 12:05 PM
White WK Swagga's Avatar
Senior Member
My Jeep: 2009 3.7L WK

Join Date: May 2009
Location: East WishAN*ggaWoods, NY
Posts: 14,384
Thanks: 8
Thanked 5 Times in 5 Posts
Rep Power: 16534
White WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond repute
Re: 2008 OEM Jeep Grand Cherokee HID headlights on an 05-07

Yeah I like the chrome trim in the front. Sux you can't get it off tho... I want to get the overland trim in the front for my truck.
__________________
The fallen......

09 WK Limited, 3.7 w/ Nav (MYGIG) W/ ipod, Single Kicker 12" CVX sub-ZX750 amp, 20" chrome SRT reps,front & reat SRT sway bars, V-LED interior & license plate, LED cargo light, Dual LED turn bulbs, painted headlight reflector covers, 5k HID lows, 3.5k/5k fogs, K&N Drop in filter, Shorty antenna, Tinted Tails & 3rd brake light, debadged.....
Reply With Quote
  #9
Old 07-05-2009, 09:04 AM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,975
Thanks: 854
Thanked 872 Times in 645 Posts
Rep Power: 7717579
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: 2008 OEM Jeep Grand Cherokee HID headlights on an 05-07

yeah...I ended up ordering anew chrome piece and i think I'll leave it chrome so the whole front of the Jeep isnt red
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2013 JKU 10th anniversary-white
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #10
Old 07-05-2009, 09:04 AM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,975
Thanks: 854
Thanked 872 Times in 645 Posts
Rep Power: 7717579
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: 2008 OEM Jeep Grand Cherokee HID headlights on an 05-07

Quote:
Originally Posted by B.P.O.D View Post
how do you like the liquid electric tape??? i was thinking about it but just couldnt get my self to get it!
so easy to use and dries fast-----
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2013 JKU 10th anniversary-white
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #11
Old 08-18-2009, 11:08 PM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,975
Thanks: 854
Thanked 872 Times in 645 Posts
Rep Power: 7717579
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: 2008 OEM Jeep Grand Cherokee HID headlights on an 05-07

bump for tman
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2013 JKU 10th anniversary-white
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #12
Old 08-19-2009, 09:06 PM
tman4024's Avatar
Lehigh Mountain Hawk
My Jeep: 2008 5.7L WK

Join Date: May 2009
Posts: 1,662
Thanks: 0
Thanked 3 Times in 3 Posts
Rep Power: 3614
tman4024 has a reputation beyond reputetman4024 has a reputation beyond reputetman4024 has a reputation beyond repute
Send a message via AIM to tman4024
Re: 2008 OEM Jeep Grand Cherokee HID headlights on an 05-07

Are the ballasts in the headlight assembly itself?
