How To: Half Shaft Replacement

Ok here is the DIY instructions to remove/replace half-axles. 3 hours should do it (2-3 beers?) It sounds imposing but really isn't any more difficult than brakes or shocks.

REMOVAL

1. Jack up car, chock and remove wheel.

2. Remove brake caliper, and support to avoid damage to the hydraulic line.

3. Remove rotor (take out the inner o-ring first).

4. Remove hub nut (36mm, may need PB blaster and a breaker bar).



(Hub with wheel, caliper and rotor removed)

5. Remove wheel speed sensor from the hub (hex wrench).

6. Remove hub bolts (3) and tap out the hub.

7. Disconnect the upper control arm from the ball joint.

8. Disconnect the outer tie rod.



(half axle just prior to removal)

9. remove stabilizer link.

10. Disconnect the shock clevis bolt from lower control arm (the fork on the shock.

11. At this point take a crow bar etc for leverage and pop out the half-axle from the front differential.

12. Maneuver the shock clevis away from the axle and slide the axle out.

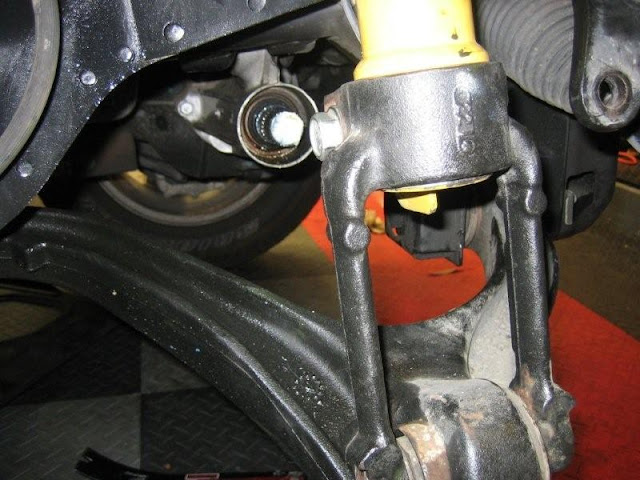

(all out)


(old half axle-Can you guess where the pinpoint hole is? lol)



View of the front dif splines (and my pry bar)

INSTALLATION:

1. Slide the new axle in, bringing it under the shock clevis. Engage it into the differential turning it a bit with constant pressure until it pops in. It shouldn't rotate when engaged. Remember to use a little axle grease on both ends.

2. Install shock clevis bolt (125 ft-lb)

3. Install upper control arm to ball joint (55)

4. Install tie rod end (35)

5. Install stabilizer link (100 upper, 85 lower)

6. Install half shaft hub (and brake shield) gradually tightening the 3 bolts to 100.

7. Install hub nut (100).

8. Install wheel speed sensor.

9. Install rotor and caliper (125)

10. Install wheel (95)

I recommend wheel alignment afterward. In addition consider suspension upgrades such as shocks,springs, sway bar and stabilizer link while you've got your rig in pieces.

Have fun!
__________________

__________________
Reply With Quote
  #2
Old 10-10-2009, 08:26 PM
Robert Palmer's Avatar
Rock N' Roll's Sophisticate/JG Co-Founder


My Jeep: 2010 6.1L SRT8

Join Date: May 2009
Location: Downtown Manhattan
Posts: 10,265
Thanks: 9
Thanked 56 Times in 48 Posts
Rep Power: 112624
Robert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond repute
Re: Half Shaft Replacement

WOW! Great writeup!


Thank You!
__________________

__________________
-Joe-



Silver
2010 Jeep Grand Cherokee SRT-8
Reply With Quote
  #3
Old 10-10-2009, 08:27 PM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,729
Thanks: 816
Thanked 796 Times in 616 Posts
Rep Power: 7717293
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: Half Shaft Replacement

awesome write up Scotty! +rep from me
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2013 JKU 10th anniversary-white
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #4
Old 10-10-2009, 08:40 PM
Chaoul1's Avatar
The Original

My Jeep: 2010 6.1L WK

Join Date: May 2009
Location: Fairfax, Virginia
Posts: 6,913
Thanks: 2
Thanked 24 Times in 24 Posts
Rep Power: 63325
Chaoul1 has a reputation beyond reputeChaoul1 has a reputation beyond reputeChaoul1 has a reputation beyond reputeChaoul1 has a reputation beyond reputeChaoul1 has a reputation beyond reputeChaoul1 has a reputation beyond reputeChaoul1 has a reputation beyond reputeChaoul1 has a reputation beyond reputeChaoul1 has a reputation beyond reputeChaoul1 has a reputation beyond reputeChaoul1 has a reputation beyond repute
Re: Half Shaft Replacement

Nice write up!
__________________
-Paul-
2010 Jeep Grand Cherokee SRT8

PaulsProfessional Automotive Detailing

PPAD's Custom Headlights

Contact for both DetailingPPADscustomwork@yahoo.com
Reply With Quote
  #5
Old 10-11-2009, 06:40 AM
Long Live the Graphite Ghost


Join Date: May 2009
Posts: 13,394
Thanks: 54
Thanked 131 Times in 113 Posts
Rep Power: 542539
robpp has disabled reputation
Re: Half Shaft Replacement

beans from me too.

great write up.....
__________________
Reply With Quote
  #6
Old 06-05-2011, 11:22 AM
New Member

Join Date: Jun 2011
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
gjxj is on a distinguished road
Re: How To: Half Shaft Replacement

Hello, first a small suggestion - this fine thread ought to state what the vehicle is!
(Maybe some admin can add to the title)
Second, is there a similar how to for a live axle (XJ) u-joint shaft removal?
__________________
Reply With Quote
  #7
Old 06-05-2011, 12:19 PM
SvenskaJeepGuy's Avatar
Let's Roll
My Jeep: 2006 4.7L WK

Join Date: Dec 2009
Location: Scranton PA
Posts: 13,069
Thanks: 137
Thanked 159 Times in 149 Posts
Rep Power: 1255288
SvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond repute
Garage
Re: How To: Half Shaft Replacement

Quote:
Originally Posted by gjxj View Post
Hello, first a small suggestion - this fine thread ought to state what the vehicle is!
(Maybe some admin can add to the title)
Second, is there a similar how to for a live axle (XJ) u-joint shaft removal?
almost every how to thread on this site is for the WK
__________________
Reply With Quote
  #8
Old 08-01-2011, 10:56 PM
mrtosh's Avatar
Member
My Jeep: 2005 5.7L WK

Join Date: Mar 2011
Location: Woodbury, mn
Posts: 765
Thanks: 0
Thanked 26 Times in 26 Posts
Rep Power: 92864
mrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond repute
Re: How To: Half Shaft Replacement

What brand axle did you replace the stock one with? Cardone, eBay, or stock? How's it holding up?
__________________
Reply With Quote
  #9
Old 08-02-2011, 12:43 PM
SvenskaJeepGuy's Avatar
Let's Roll
My Jeep: 2006 4.7L WK

Join Date: Dec 2009
Location: Scranton PA
Posts: 13,069
Thanks: 137
Thanked 159 Times in 149 Posts
Rep Power: 1255288
SvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond reputeSvenskaJeepGuy has a reputation beyond repute
Garage
Re: How To: Half Shaft Replacement

mine is going to the dealer for a half shaft replacement. i had a mechanic replace the boot and it still leaked so they were going to replace the axle and couldnt get it out from my dif.
__________________
Reply With Quote
  #10
Old 01-17-2012, 01:24 PM
Member

Join Date: Aug 2009
Posts: 134
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 2017
wkearney99 has a reputation beyond reputewkearney99 has a reputation beyond reputewkearney99 has a reputation beyond reputewkearney99 has a reputation beyond reputewkearney99 has a reputation beyond repute
Re: How To: Half Shaft Replacement

Man, thanks! You just saved me a seriously interrupted job. I have damn near every socket size EXCEPT for 36mm. Good thing I read this before pulling the wheel off. But not before I'd gotten everything else together, donned the warm clothes and put the left front up on a jackstand. Now, off to find the socket for tomorrow's task...
__________________
Reply With Quote
  #11
Old 01-17-2012, 05:15 PM
Member

Join Date: Aug 2009
Posts: 134
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 2017
wkearney99 has a reputation beyond reputewkearney99 has a reputation beyond reputewkearney99 has a reputation beyond reputewkearney99 has a reputation beyond reputewkearney99 has a reputation beyond repute
Re: How To: Half Shaft Replacement

Is there some trick to getting the lower clevis bolt out? Damned thing just WILL NOT come loose. I take it there are threads on both ends of the bolt? As in, some that thread it into one side of the clevis fork and then the other side has the bolt to hold it? I've tried using a long ratchet arm and even an electric hammer driver and have had absolutely no luck getting that bolt out.

I wouldn't need to remove it if the damned thing was just a 1/2" wider. For that would allow the half-shaft to slide through the gap. But noooooooooooooo! I could disassemble the old one to get it out, but that wouldn't help me with putting the fresh new, whole half-shaft back into it.

ARRRRRGGHHH!!

And to make matters worse the head on that clevis bolt is getting a little rounded from my efforts.

So, what's my option here? I suppose I could drop the whole lower arm and go begging at a local shop. But what're my other choices? I don't know what hardness this bolt is, so sawing through it seems like a less-than-ideal proposition. Heat would surely cook the bushing in there. Ideas?

This would've been a relatively quick job if not for this danged clevis bolt.
__________________
Reply With Quote
  #12
Old 01-17-2012, 06:07 PM
mrtosh's Avatar
Member
My Jeep: 2005 5.7L WK

Join Date: Mar 2011
Location: Woodbury, mn
Posts: 765
Thanks: 0
Thanked 26 Times in 26 Posts
Rep Power: 92864
mrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond reputemrtosh has a reputation beyond repute
Re: How To: Half Shaft Replacement

The clevis bolt is a major pita and holds up a lot of people. Try some freeze off penetrant and alternating with heat. It will come. It's only thread on the one end. You can also bend the lock tab for the bolt and then hit it with an impact gun while hitting the end of the bolt (preferably with the nut on a few threads) with a hammer. It'll bust loose.
