Re: How To: Install a mesh grill on a 08 WK

Quote:
Originally Posted by B.P.O.D View Post
more pics davy
__________________

__________________


PAUL
SEPT2013MEET
APRIL2013MEET
My Garage
My Album
Reply With Quote
  #410
Old 02-24-2011, 01:54 PM
DAVY27's Avatar
Premium Member
Photobucket

Join Date: Jun 2009
Location: City that Never Sleeps
Posts: 9,046
Thanks: 394
Thanked 134 Times in 128 Posts
Rep Power: 1659906
DAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond repute
Garage
Send a message via AIM to DAVY27
Re: How To: Install a mesh grill on a 08 WK

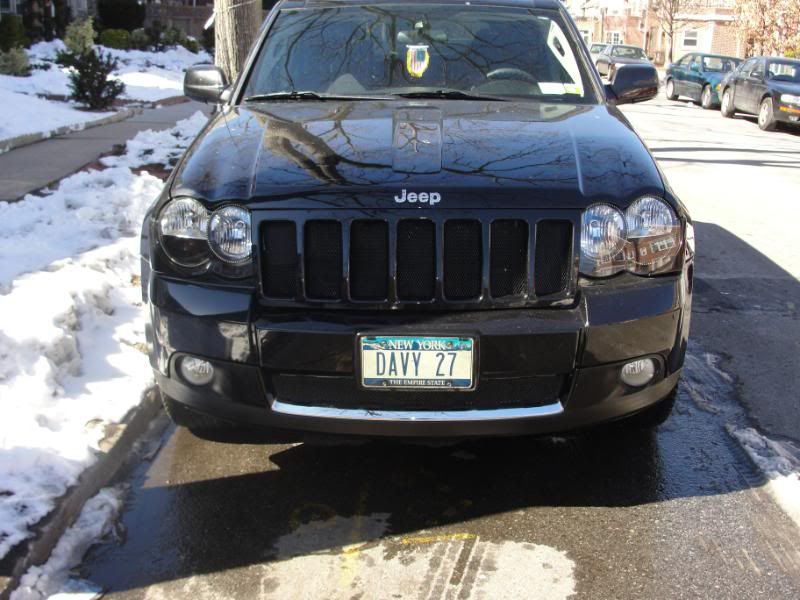

lol, thanks fellas! nothing major, just wanted to get rid of the "smilie" look the overland trim have against the black grill. Simple task, tape off area i didnt want paint, sand, basecoat and clearcoat. Hardest part was getting the look of the trim to "curve" in with the tape. ill try to get some today from diff angles.
__________________

__________________

2009 Jeep Grand Cherokee SRT Design
SRT Exterior,Magnaflow 14590 w/ SRT resonators,V2 CF Medic Hood,Injen Powerflow Intake,Flying Ryan Ported TB,Custom Painted Halo Headlights,HID lows/fogs,SRT Springs,Stillens,Gloss Black SRT Reps,Mopar Spoiler, Custom Painted Moldings with Snakeskin green GC letterings, Mopar Stripe,Tinted LED tails/rear fogs, TLS Harness,Switchbacks, Stage6 5" Tips,Custom Door Handle Leds,5% Tint,Altec Plate,HID Reverse,Mopar Front Emblem/ Rear Logo,Powerwire,Interior Leds,RGB LED cupholders,Mygig,Weathertech Mats,LXHarness Leds,Rear Cargo Light Mod,Lockpic V4,GlossBlack Vinyl Interior Pieces
Reply With Quote
  #411
Old 02-24-2011, 02:07 PM
MasterWK's Avatar
Senior Member
My Jeep: 2010 5.7L WK

Join Date: Jan 2011
Location: Denver, Colorado
Posts: 1,141
Thanks: 3
Thanked 6 Times in 6 Posts
Rep Power: 2453
MasterWK has a reputation beyond repute
Re: How To: Install a mesh grill on a 08 WK

Wow that came out really nice.
__________________
Reply With Quote
  #412
Old 02-25-2011, 10:14 AM
Megatron's Avatar
Super Moderator

My Jeep: 2007 WK

Join Date: May 2009
Location: Brooklyn, NY
Posts: 12,186
Thanks: 179
Thanked 123 Times in 115 Posts
Rep Power: 2899107
Megatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond repute
Garage
Re: How To: Install a mesh grill on a 08 WK

Quote:
Originally Posted by DAVY27 View Post
Brad- painted the vertical sides. what do you think?

Dave, I was looking at the startech site earlier, What do you think about this? LED strip near bottom fog. If you can get the same looking one, I think it will look fresh.

__________________


PAUL
SEPT2013MEET
APRIL2013MEET
My Garage
My Album
Reply With Quote
  #413
Old 03-02-2011, 09:53 AM
DAVY27's Avatar
Premium Member
Photobucket

Join Date: Jun 2009
Location: City that Never Sleeps
Posts: 9,046
Thanks: 394
Thanked 134 Times in 128 Posts
Rep Power: 1659906
DAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond repute
Garage
Send a message via AIM to DAVY27
Re: How To: Install a mesh grill on a 08 WK

hmmm...not a fan on those. love to see someone do it tho. My halos(sometimes) and fogs are my drls lol
__________________

2009 Jeep Grand Cherokee SRT Design
SRT Exterior,Magnaflow 14590 w/ SRT resonators,V2 CF Medic Hood,Injen Powerflow Intake,Flying Ryan Ported TB,Custom Painted Halo Headlights,HID lows/fogs,SRT Springs,Stillens,Gloss Black SRT Reps,Mopar Spoiler, Custom Painted Moldings with Snakeskin green GC letterings, Mopar Stripe,Tinted LED tails/rear fogs, TLS Harness,Switchbacks, Stage6 5" Tips,Custom Door Handle Leds,5% Tint,Altec Plate,HID Reverse,Mopar Front Emblem/ Rear Logo,Powerwire,Interior Leds,RGB LED cupholders,Mygig,Weathertech Mats,LXHarness Leds,Rear Cargo Light Mod,Lockpic V4,GlossBlack Vinyl Interior Pieces
Reply With Quote
  #414
Old 03-02-2011, 10:02 AM
Megatron's Avatar
Super Moderator

My Jeep: 2007 WK

Join Date: May 2009
Location: Brooklyn, NY
Posts: 12,186
Thanks: 179
Thanked 123 Times in 115 Posts
Rep Power: 2899107
Megatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond repute
Garage
Re: How To: Install a mesh grill on a 08 WK

All right, Scratch that idea! haha
__________________


PAUL
SEPT2013MEET
APRIL2013MEET
My Garage
My Album
Reply With Quote
  #415
Old 03-04-2011, 12:32 AM
Member

Join Date: Jan 2010
Posts: 96
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 1775
nick.jeff is on a distinguished road
Tried to replicate the '11 Summit grill on my '05 Limited. Diamond openings are a bit smaller (~3/4") but I'm still pleased overall with how it turned out. Mesh is aluminum woven wire, diamond pattern.
Attached Images
File Type: jpg ImageUploadedByTapatalk1299216718.085078.jpg (392.1 KB, 114 views)
File Type: jpg ImageUploadedByTapatalk1299216761.797605.jpg (462.7 KB, 118 views)
__________________
Reply With Quote
  #416
Old 03-04-2011, 12:49 AM
DAVY27's Avatar
Premium Member
Photobucket

Join Date: Jun 2009
Location: City that Never Sleeps
Posts: 9,046
Thanks: 394
Thanked 134 Times in 128 Posts
Rep Power: 1659906
DAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond repute
Garage
Send a message via AIM to DAVY27
Re: How To: Install a mesh grill on a 08 WK

that turned out great Nick!
__________________

2009 Jeep Grand Cherokee SRT Design
SRT Exterior,Magnaflow 14590 w/ SRT resonators,V2 CF Medic Hood,Injen Powerflow Intake,Flying Ryan Ported TB,Custom Painted Halo Headlights,HID lows/fogs,SRT Springs,Stillens,Gloss Black SRT Reps,Mopar Spoiler, Custom Painted Moldings with Snakeskin green GC letterings, Mopar Stripe,Tinted LED tails/rear fogs, TLS Harness,Switchbacks, Stage6 5" Tips,Custom Door Handle Leds,5% Tint,Altec Plate,HID Reverse,Mopar Front Emblem/ Rear Logo,Powerwire,Interior Leds,RGB LED cupholders,Mygig,Weathertech Mats,LXHarness Leds,Rear Cargo Light Mod,Lockpic V4,GlossBlack Vinyl Interior Pieces
Reply With Quote
  #417
Old 03-04-2011, 01:27 AM
08Hemi's Avatar
Senior Member
My Jeep: 2008 5.7L WK

Join Date: Jun 2009
Location: Santa Barbara, CA
Posts: 4,296
Thanks: 0
Thanked 25 Times in 30 Posts
Rep Power: 330367
08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute
Re: How To: Install a mesh grill on a 08 WK

^^ X2 looks great and is a very similar look to the summit! where did you get the mesh? price? did you finish/paint at all? thanks for the pics
__________________
Reply With Quote
  #418
Old 03-04-2011, 03:52 PM
Member

Join Date: Jan 2010
Posts: 96
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 1775
nick.jeff is on a distinguished road
It is just a straight aluminum wire woven 12"x48" piece of mesh from
CustomCarGrills.com. I thought about doing a clear coat finish for a protective layer but Matt from CCG assured me it wouldn't rust so I left it alone. Cost me $59 shipped, but Matt is offering me a partial refund if I submit a write-up and pictures so I'll be doing that later today. I told him there might be some interest from this forum so I'll ask him about discounts and/or group-buys when I send him the write-up. I had about a 12"x12" left over piece along with some scrap but unfortunately not enough to do the lower valance as I am thinking about doing as well. Here's another picture in the "daylight" (gloomy rainy overcast) as it seems like the sun hasn't been out here for months.
Attached Images
File Type: jpg ImageUploadedByTapatalk1299271989.195660.jpg (455.3 KB, 59 views)
__________________
Reply With Quote
  #419
Old 03-04-2011, 03:55 PM
08Hemi's Avatar
Senior Member
My Jeep: 2008 5.7L WK

Join Date: Jun 2009
Location: Santa Barbara, CA
Posts: 4,296
Thanks: 0
Thanked 25 Times in 30 Posts
Rep Power: 330367
08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute08Hemi has a reputation beyond repute
Re: How To: Install a mesh grill on a 08 WK

really looks good...and my bad I think you posted that CCG co earlier (or someone else did)...and thats not too bad on the price...although my 10+ foot roll was less than $10, but you get what you pay for and mine is def cheap haha
__________________
Reply With Quote
  #420
Old 03-08-2011, 08:54 PM
moparBG's Avatar
Member
My Jeep: 2008 4.7L WK

Join Date: Jan 2011
Location: North East Ohio
Posts: 121
Thanks: 0
Thanked 2 Times in 2 Posts
Rep Power: 1422
moparBG is on a distinguished road
Re: How To: Install a mesh grill on a 08 WK

Its about time that I contributed to the information that I have found so valuable. Big thanks to 08Hemi for all the guidance. You will see your writeup in the background pictured below.

What I started with:

08Hemi- Imitation is the greatest form of flatery

Measuring out an approx piece of cardboard to make a template. You can see the mesh in the background. It came from McNichols, $58 shipped for a 3'x4' piece of Aluminum woven wire mesh. 2 squares per inch.

Quick cardboard template. To begin with, I anticipated using those tabs sticking up that are part of the chrome. Later saw that they served no purpose, other than to get in my way and to be one more thing to trim the mesh around. Later cut them off...

**Edit- Do not cut off the black plastic pieces on the bottom. These hold the entire gille on the jeep. I am refering to the chrome tabs you see sticking out of the cardboard on the top**

Cut out the mesh per the template. Did it on a 45 degree angle for the desired diamond patern. Notice I had to use the tool box for weight because the mesh wanted to roll bck up from shipping.

Let the mesh sit overnight under a lot of weight. The toolbox is probably about 75lbs.

For cutting out the old plastic grille I used a dremel. Not your typical rotary dremel. It worked perfectly.

Guess what this is for? JB Weld. About $5 from Lowe's or Home Depot

I was concerned about the potential of the mesh not lying flat on the concave grille. Used the JB weld to secure some stainless bolts. then used stainless fender washers and nylon locking nuts.

Another pic with all of the bolts glued in:

Just hit the 10 picture max. The results below...
__________________

__________________
2008 Grand Cherokee Limited, 4.7L- K&N CAI, Custom Mesh Grille, Magnaflow Cat Back, Mopar Body Kit, 22" Chrome SRT Factory Reproductions, Vreds, Bwoody Sway Bar links, SRT front and rear sway bar, SRT Bilsteins, WK Eibachs
Reply With Quote
