  #13
Old 07-01-2013, 07:42 PM
Premium Member
My Jeep: 2012 3.0L WK2

Join Date: Dec 2011
Location: Gold Coast Australia
Posts: 628
Thanks: 1
Thanked 52 Times in 49 Posts
Rep Power: 34341
John47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond repute
Re: The Towing thread

My Tekonsha P3 is in the cubby in front of the console, out of sight and out of the way - suits us. I don't need to be looking at it all the time.
Others have fitted them
- below the fuel door latch and between the air bag door and the drivers door, (very tight for a P3)
- below the steering column,
- on top of the dash on the right hand side.
Depends on how handy the installer is, and personal preferences as far as access to the controller and your tolerance for working around it.
Some have used the Redarc remote head unit, with the knob under the fuel latch and the controller body hidden, looks neat but that controller isn't proportioanl and doesn't provide the braking control that a quality proportional type does.
There are plenty of photos around but most are buried in threads on here.
John
__________________

__________________
2012 Laredo CRD
Bright Silver with Quadralift & front recovery hook - (that has been used unfortunately)
Mopar towbar
Reply With Quote
  #14
Old 07-02-2013, 03:40 AM
lt4vette's Avatar
Premium Member
My Jeep: 2014 3.0L WK2

Join Date: May 2013
Location: On a farm 200km north of Sydney Australia
Posts: 260
Thanks: 92
Thanked 12 Times in 11 Posts
Rep Power: 724
lt4vette is on a distinguished road
Re: The Towing thread

Hi,
I can't find an answer to the question to the question Auscop raises as quoted below. The response implies the “receiver hitch” is part of the Trailer Tow Group, but the “towbar” is not. I have always thought that the hitch was another name for the towbar.
From the brochure for the 2013 JGC, it would seem that indeed the hitch is (or at least was for 2013) included in the tow package:
Towing Capability

The Trailer Tow Group includes a Class IV receiver hitch, trailer tow wiring harness and Trailer Sway Control(1) (TSC). The all-new Jeep Grand Cherokee offers trailer tow capability of up to 2,268 kg on models equipped with the Pentastar™ V6 engine(2). Equip your Grand Cherokee with the 3.0-litre CRD diesel engine or legendary 5.7-litre HEMI® engine and you're ready for loads of up to 3,500 kg(2).( http://www.jeep.com.au/features-a-specs/capability/jeep-grand-cherokee-towing ).


I am trying to find out:
  1. Is a hitch different to a tow bar, and what does that mean in this context?
  2. Does the Trailer Tow Group include a hitch, towbar, or both?
  3. Does the 2014 Overland with ORAII include a Trailer Tow Group?

Can anyone shed light on this? I have done various forum searches, but haven't found anything.
Thanks,
Russell
“Quote:
Originally Posted by auscop
The question I still seem to not be able to get answered is does the Overland CRD come standard with the trailer tow pack. By what I saw on the US site and on my build sheet I thought it did. But I saw a bunch of people ordering it with their Overland on the bulk buy group??

REPLY: I think QuadraLift package includes Trailer Tow Grp (7 & 4 pins wiring harness + class IV receiver hitch). Dealer charges extra for tow bar/ball and electric trailer brake.”





__________________

__________________
2014 JGC Overland Cherry Red Off Road Adventure Package, ARB colour coded bar, 265/65/18 BFG's
Reply With Quote
  #15
Old 07-02-2013, 04:16 AM
Member
My Jeep: 2014

Join Date: Jun 2013
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 429
RobbieD is on a distinguished road
Re: The Towing thread

Hi, got an email from my dealer today, they are expecting my beautiful Bright White Laredo CRD to arrive Friday or Monday -yay yay yay!!!!
I have a towing question (forgive me, just a non mechanical girl) I am getting a tow bar fitted by the dealer before I pick it up and I'm not sure if I should get Jeep to fit an electric brake controller, a GSL brand? for around $650 or I should get an auto elec to remove the Primus IQ controller from my current car and fit to the JGC? I'm hoping someone knows which would be the best quality electric brake controller to have for towing my small caravan. I figure there will be no tears if Jeep do the installation?
Thanks so much in advance
Robbie
__________________
Reply With Quote
  #16
Old 07-02-2013, 05:27 AM
Premium Member
My Jeep: 2012 3.0L WK2

Join Date: Dec 2011
Location: Gold Coast Australia
Posts: 628
Thanks: 1
Thanked 52 Times in 49 Posts
Rep Power: 34341
John47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond reputeJohn47 has a reputation beyond repute
Re: The Towing thread

Hi Robbie......considering that the GSL is available retail for $105 12V Electric Trailer Brake Controller GSL Remote Head Will Work ON LOW Voltage | eBay
I guess you have part of your question answered. Unfortunately you will find in this and other Jeep forums that dealers generally DON"T get a rap for looking after their customers.
If you go to plan B and have an autoelec remove your Primus and refit I believe you would be well in front. If you are familiar with it and it works presently, there is no reason it will be different with your new Jeep.
Have the installer take the feed for the brake switch from the trailer plug stop light wiring, and there should be no issues or conflict with the vehicle. Mine is wired that way and in 18 months we've clocked up over 30,000k towing - no conflict and works perfectly.
If you want to fit the best quality then that would be the well respected Tekonsha P3 - a set and forget controller that you won't regret purchasing.
A P3 can be wired direct from the battery via a circuit breaker (they go to "sleep" when no movement is detected), and earthed anywhere convenient. Very easy to install - even DIY.
Good luck - and you will be wrapped in your new CRD Laredo!!
John
__________________
2012 Laredo CRD
Bright Silver with Quadralift & front recovery hook - (that has been used unfortunately)
Mopar towbar
Reply With Quote
  #17
Old 07-02-2013, 05:33 AM
Member
My Jeep: 2014

Join Date: Jun 2013
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 429
RobbieD is on a distinguished road
Re: The Towing thread

John, you are a LEGEND!!! Robbie
__________________
Reply With Quote
  #18
Old 07-02-2013, 06:17 AM
allypally's Avatar
Premium Member
My Jeep: 2012 3.0L WK2

Join Date: Aug 2011
Location: NW Sydney
Posts: 2,142
Thanks: 23
Thanked 122 Times in 102 Posts
Rep Power: 55516
allypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond repute
Re: The Towing thread

it4vette, I will try to answer your questions.
First of all, the US towbar and hitch is not compliant with Australian regulations, so it is not factory supplied on cars destined for ANZ.
The wiring, which is in the US cars, used for a simple Brake Controller fitting is also not added to our cars.
The towbar, which is the bar that gets bolted to the chassis is supplied by Best Bars in NZ and sold as a Mopar accessory. The Hitch, is the part which slides into the towbar and incorporates the Towball.
If you order a Towbar from the dealer, as part of your purchase, they will install it and supply a hitch and towball, as well as a 7 pin flat socket. The towpack is not standard on any of the models.
__________________
MY12 Overland CRD
Cherry Red
Saddle Interior.
Front Recovery Hook.
Reply With Quote
The Following User Says Thank You to allypally For This Useful Post:
  #19
Old 07-02-2013, 06:25 AM
allypally's Avatar
Premium Member
My Jeep: 2012 3.0L WK2

Join Date: Aug 2011
Location: NW Sydney
Posts: 2,142
Thanks: 23
Thanked 122 Times in 102 Posts
Rep Power: 55516
allypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond reputeallypally has a reputation beyond repute
Re: The Towing thread

Quote:
Originally Posted by mtech View Post
For the minority that it affects, HR have stated that theirs is also not compatible with the SRT model. I was leaning that way first because of ability to use different tongues, recovery hooks, etc but no go.

I also heard somewhere that the brake controller must not obstruct the knee airbag, do we have any info or how are people getting around this?
As John47 rightfully explained, the locations most popular with mounting a brake controller are
1. In the cubby below the aircon controls. You need to pull the facia off and half of the console. Looks a daunting operation, but not that bad, especially once you have seen it done.
2. Below the fuel release button. If you use a Redarc, there is plenty of room. A P3 will just fit.
3. On the left side of the steering column next to the airbag.

Both items 1, and 3, are close to the airbag, but should just miss it. Also, both of these locations might mean you need to drill holes in the dash.
I am installing a P3 below the fuel release, but to mount it, I am attaching it to a 3mm piece of Perspex, and I will then stick it with either Velcro or double sided tape.
__________________
MY12 Overland CRD
Cherry Red
Saddle Interior.
Front Recovery Hook.
Reply With Quote
  #20
Old 07-02-2013, 07:13 PM
mtech's Avatar
Premium Member

Join Date: May 2013
Location: Melbourne, Aust
Posts: 28
Thanks: 1
Thanked 0 Times in 0 Posts
Rep Power: 488
mtech is on a distinguished road
Re: The Towing thread

Thanks for the replies, will investigate when I actually have the car to see.

I have seen the photos and instructions of a P3 in the cubby but was not leaning this way as the MY14 has all the ports in there that I don't really want to block.
__________________
waiting for MY14 Deep Cherry Red SRT to arrive
Reply With Quote
  #21
Old 07-03-2013, 02:14 AM
Matty470's Avatar
Premium Member
My Jeep: 2012 3.0L WK2

Join Date: Mar 2012
Location: Melb, AUS
Posts: 329
Thanks: 12
Thanked 14 Times in 13 Posts
Rep Power: 2422
Matty470 has a reputation beyond reputeMatty470 has a reputation beyond reputeMatty470 has a reputation beyond reputeMatty470 has a reputation beyond reputeMatty470 has a reputation beyond reputeMatty470 has a reputation beyond reputeMatty470 has a reputation beyond reputeMatty470 has a reputation beyond reputeMatty470 has a reputation beyond reputeMatty470 has a reputation beyond reputeMatty470 has a reputation beyond repute
Re: The Towing thread

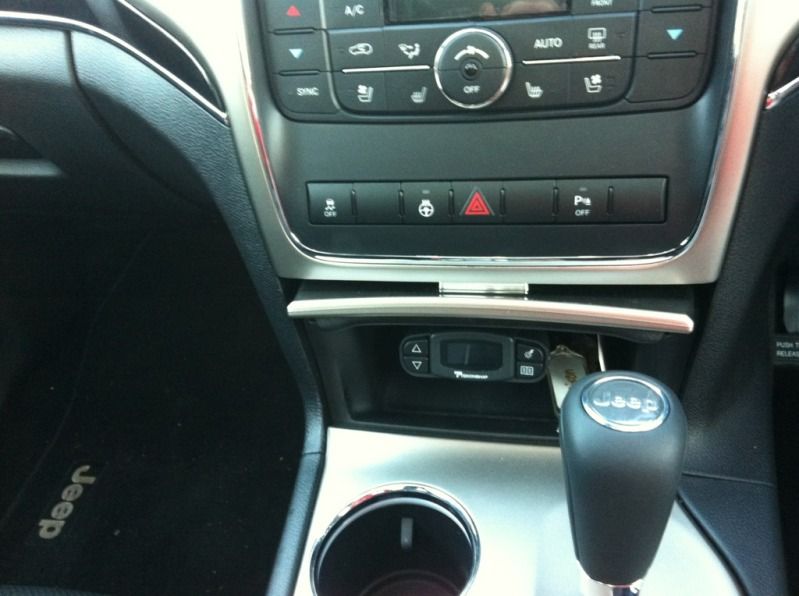

As others have said, my personal preference for the location of the brake controller (P3) is in the centre cubby.

I had my local auto elec instal it after I took them the trim removal instructions off wk2jeeps.com.

My other option was going to be on the RHS of the instrument cluster on top of the dash but it would require either drilling into the leather or sticking something to it. In the end I'm glad it is where it is.
__________________
MY12 Mineral Grey Overland CRD.
Reply With Quote
  #22
Old 07-03-2013, 03:20 AM
Butts_Oz's Avatar
Premium Member
My Jeep: 2014 3.0L WK2

Join Date: Mar 2013
Location: Brisbane, QLD
Posts: 199
Thanks: 6
Thanked 14 Times in 10 Posts
Rep Power: 1041
Butts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond repute
Re: The Towing thread

Quote:
Originally Posted by Matty470 View Post
As others have said, my personal preference for the location of the brake controller (P3) is in the centre cubby.
I had my local auto elec instal it after I took them the trim removal instructions off wk2jeeps.com.

My other option was going to be on the RHS of the instrument cluster on top of the dash but it would require either drilling into the leather or sticking something to it. In the end I'm glad it is where it is.
After looking at the location of the media options in the Overland, I can't see the P3 fitting in the cubby location. I'm looking for an alternative to get around the air bags as well. If someone out there is fitting the P3 in their MY14, please let me know your solution.
__________________
Reply With Quote
  #23
Old 07-03-2013, 03:20 AM
Member

Join Date: Jun 2013
Posts: 80
Thanks: 0
Thanked 4 Times in 3 Posts
Rep Power: 515
Buster01 is on a distinguished road
Re: The Towing thread

I have had 2 dealers tell me the elec brakes are different for the my14. No box? Just a button? Does that make sense? Way beyond my level of comprehension I am afraid.
1 quoted $550. The other said to get an auto elec to do it.
__________________
Reply With Quote
  #24
Old 07-03-2013, 03:28 AM
Butts_Oz's Avatar
Premium Member
My Jeep: 2014 3.0L WK2

Join Date: Mar 2013
Location: Brisbane, QLD
Posts: 199
Thanks: 6
Thanked 14 Times in 10 Posts
Rep Power: 1041
Butts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond reputeButts_Oz has a reputation beyond repute
I've been quoted for the P3 to be fitted and an Anderson plug for $495 by an auto electrician. My dealer wanted $700 for just a Redarc. Whilst the aesthetics of the Redarc make this a viable option, it simply is not as good as the P3.
__________________
