Re: LEDs came today!

Quote:
Originally Posted by Gus9890 View Post
Any of y'all do your gauge cluster yet? Y'all got me motivated to start doing my interior LEDs lol. Ordered LEDs to upgrade the 103's in cool white and a blue PC74 (for high beam indicator) to start with so I can see how it looks with my white face gauges. Anyone know anything about the ones in the controls on the doors (for windows, etc)?
I don't think it's possible to change those.
__________________

__________________
Reply With Quote
  #62
Old 03-31-2012, 12:20 PM
Gus9890's Avatar
Premium Member
My Jeep: 2001 4.0L WJ

Join Date: Apr 2011
Location: Amelia Island, FL
Posts: 4,473
Thanks: 38
Thanked 48 Times in 47 Posts
Rep Power: 408141
Gus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond repute
Re: LEDs came today!

Probably too small, I know on some platforms you can, but not sure about WJ's
__________________

__________________
2001 Silverstone Metallic WJ Limited:
Gen III Clear/Chrome Projector/CCFL Halos/LEDs, 8K HIDs, 8K HID Projector/Halo fogs, Clear/Chrome Tail Lights and 3rd Brake Light with LEDS, Diamond Mesh Upper and Lower Fascia, Spectre CAI, Breather Filter, Cabin Air Filter, Low-Temp Thermostat, Jet Stage 1 Chip, MagnaFlow Exhaust with Resonator Tip, Shorty Antenna, Front/Back De-badged
Reply With Quote
  #63
Old 03-31-2012, 12:22 PM
CameronG's Avatar
Member
My Jeep: 2000 4.7L WJ

Join Date: Nov 2011
Location: S. Illinois
Posts: 164
Thanks: 23
Thanked 11 Times in 11 Posts
Rep Power: 147576
CameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond repute
Re: LEDs came today!

I haven't tried mine yet, but I imagine it's possible. Just take apart the control box and solder a new tiny LED in there. Might not be too easy to work with though.
__________________
Current: Gen 3 Projectors | Light Bar | Hella 500's | Shorty Antenna
Future: LED Interior & Exterior | SRT Reps | '04 FE Conversion
Reply With Quote
  #64
Old 03-31-2012, 11:11 PM
Gus9890's Avatar
Premium Member
My Jeep: 2001 4.0L WJ

Join Date: Apr 2011
Location: Amelia Island, FL
Posts: 4,473
Thanks: 38
Thanked 48 Times in 47 Posts
Rep Power: 408141
Gus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond repute
Re: LEDs came today!

That's what I'm thinkin and it just may be a PITA. After I get the easy stuff done I'll tackle the doors.
__________________
2001 Silverstone Metallic WJ Limited:
Gen III Clear/Chrome Projector/CCFL Halos/LEDs, 8K HIDs, 8K HID Projector/Halo fogs, Clear/Chrome Tail Lights and 3rd Brake Light with LEDS, Diamond Mesh Upper and Lower Fascia, Spectre CAI, Breather Filter, Cabin Air Filter, Low-Temp Thermostat, Jet Stage 1 Chip, MagnaFlow Exhaust with Resonator Tip, Shorty Antenna, Front/Back De-badged
Reply With Quote
  #65
Old 03-31-2012, 11:44 PM
CameronG's Avatar
Member
My Jeep: 2000 4.7L WJ

Join Date: Nov 2011
Location: S. Illinois
Posts: 164
Thanks: 23
Thanked 11 Times in 11 Posts
Rep Power: 147576
CameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond repute
Re: LEDs came today!

I think I'll tackle this project tomorrow while I have my panels off anyway. I'll let you know how it goes.
__________________
Current: Gen 3 Projectors | Light Bar | Hella 500's | Shorty Antenna
Future: LED Interior & Exterior | SRT Reps | '04 FE Conversion
Reply With Quote
  #66
Old 04-01-2012, 09:19 AM
Gus9890's Avatar
Premium Member
My Jeep: 2001 4.0L WJ

Join Date: Apr 2011
Location: Amelia Island, FL
Posts: 4,473
Thanks: 38
Thanked 48 Times in 47 Posts
Rep Power: 408141
Gus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond repute
Re: LEDs came today!

Cool!
__________________
2001 Silverstone Metallic WJ Limited:
Gen III Clear/Chrome Projector/CCFL Halos/LEDs, 8K HIDs, 8K HID Projector/Halo fogs, Clear/Chrome Tail Lights and 3rd Brake Light with LEDS, Diamond Mesh Upper and Lower Fascia, Spectre CAI, Breather Filter, Cabin Air Filter, Low-Temp Thermostat, Jet Stage 1 Chip, MagnaFlow Exhaust with Resonator Tip, Shorty Antenna, Front/Back De-badged
Reply With Quote
  #67
Old 04-01-2012, 09:19 PM
CameronG's Avatar
Member
My Jeep: 2000 4.7L WJ

Join Date: Nov 2011
Location: S. Illinois
Posts: 164
Thanks: 23
Thanked 11 Times in 11 Posts
Rep Power: 147576
CameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond repute
Re: LEDs came today!

Hope it doesn't bother anyone that I put this here. I took it apart today. I didn't have time to buy the new LED's, but here's how to do it. It's pretty self explanatory, but I figured I'd throw the photos in anyway. All photos are from the rear driver's door, but this will apply to all. When you get to the driver's door with all the mirror buttons and stuff, it will come apart slightly different, but it's simple.

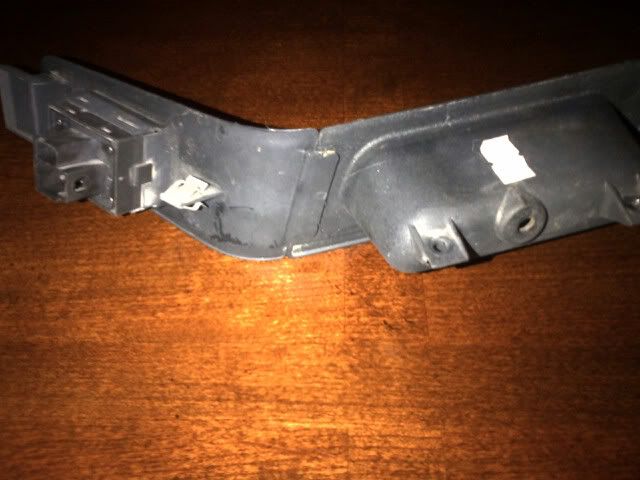

After removing the switches from the door, you end up with this:

-
Backside (switch is on the left):

-

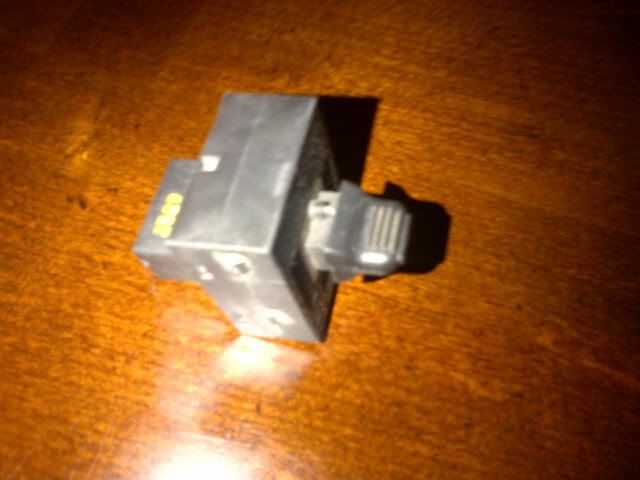

Push the pins holding the switch in, and pull out to remove it and get this:

-

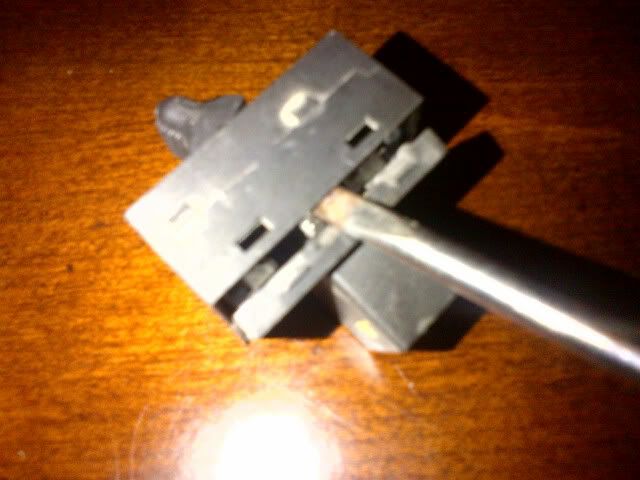

Carefully bend the plastic surrounding the inner piece of the switch away from the tabs holding it in, and remove this piece as well.

-

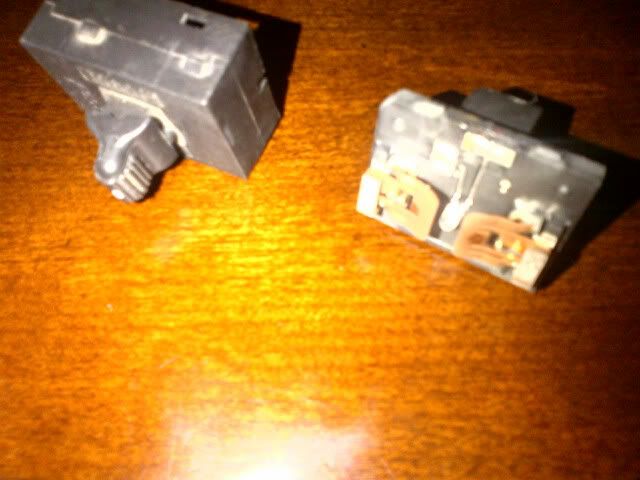

Here it is apart:

-
The bulb is sticking up here, just remove it and solder the new LED that you want.


Then snap all the pieces together, install into your doors, and enjoy! Sorry the photos are so awful, camera and playbook were dead, so they're from my BB.
__________________
Current: Gen 3 Projectors | Light Bar | Hella 500's | Shorty Antenna
Future: LED Interior & Exterior | SRT Reps | '04 FE Conversion
Reply With Quote
The Following User Says Thank You to CameronG For This Useful Post:
  #68
Old 04-01-2012, 11:52 PM
Gus9890's Avatar
Premium Member
My Jeep: 2001 4.0L WJ

Join Date: Apr 2011
Location: Amelia Island, FL
Posts: 4,473
Thanks: 38
Thanked 48 Times in 47 Posts
Rep Power: 408141
Gus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond repute
Re: LEDs came today!

Great information, I think we all can use that! Thanks!!
__________________
2001 Silverstone Metallic WJ Limited:
Gen III Clear/Chrome Projector/CCFL Halos/LEDs, 8K HIDs, 8K HID Projector/Halo fogs, Clear/Chrome Tail Lights and 3rd Brake Light with LEDS, Diamond Mesh Upper and Lower Fascia, Spectre CAI, Breather Filter, Cabin Air Filter, Low-Temp Thermostat, Jet Stage 1 Chip, MagnaFlow Exhaust with Resonator Tip, Shorty Antenna, Front/Back De-badged
Reply With Quote
  #69
Old 04-02-2012, 06:12 AM
Senior Member

Join Date: Feb 2011
Posts: 3,143
Thanks: 73
Thanked 44 Times in 36 Posts
Rep Power: 534011
Amelie has a reputation beyond reputeAmelie has a reputation beyond reputeAmelie has a reputation beyond reputeAmelie has a reputation beyond reputeAmelie has a reputation beyond reputeAmelie has a reputation beyond reputeAmelie has a reputation beyond reputeAmelie has a reputation beyond reputeAmelie has a reputation beyond reputeAmelie has a reputation beyond reputeAmelie has a reputation beyond repute
Re: LEDs came today!

That's very interesting! Now I just need to learn how to properly solder things
__________________
Reply With Quote
  #70
Old 04-02-2012, 02:03 PM
CameronG's Avatar
Member
My Jeep: 2000 4.7L WJ

Join Date: Nov 2011
Location: S. Illinois
Posts: 164
Thanks: 23
Thanked 11 Times in 11 Posts
Rep Power: 147576
CameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond reputeCameronG has a reputation beyond repute
Re: LEDs came today!

Quote:
Originally Posted by Gus9890 View Post
Great information, I think we all can use that! Thanks!!
Thanks, I figured that since everyone (including me) thought that it would be too hard I'd let everyone know it's really not hard at all. It only takes about an hour to remove everything, change the colors, and put the four doors panels back on.

Quote:
Originally Posted by Amelie View Post
That's very interesting! Now I just need to learn how to properly solder things
It's not hard to learn how to solder correctly. Take a few practice rounds on some spare parts laying around, and you'll get the hang of everything.
__________________
Current: Gen 3 Projectors | Light Bar | Hella 500's | Shorty Antenna
Future: LED Interior & Exterior | SRT Reps | '04 FE Conversion
Reply With Quote
  #71
Old 04-03-2012, 10:59 PM
Gus9890's Avatar
Premium Member
My Jeep: 2001 4.0L WJ

Join Date: Apr 2011
Location: Amelia Island, FL
Posts: 4,473
Thanks: 38
Thanked 48 Times in 47 Posts
Rep Power: 408141
Gus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond reputeGus9890 has a reputation beyond repute
Re: LEDs came today!

I found a couple sites for that may be interesting to y'all for glow gauge needles (which look pretty wicked, especially if you add your own style with the gauge cluster bulbs) and the second one doesn't have much on it for WJ's but maybe worth checkin out:

http://www.importintelligence.com/inneki.html

http://www.mimousa.com/products/Defa...97-2001&clev=0
__________________
2001 Silverstone Metallic WJ Limited:
Gen III Clear/Chrome Projector/CCFL Halos/LEDs, 8K HIDs, 8K HID Projector/Halo fogs, Clear/Chrome Tail Lights and 3rd Brake Light with LEDS, Diamond Mesh Upper and Lower Fascia, Spectre CAI, Breather Filter, Cabin Air Filter, Low-Temp Thermostat, Jet Stage 1 Chip, MagnaFlow Exhaust with Resonator Tip, Shorty Antenna, Front/Back De-badged
Reply With Quote
  #72
Old 04-13-2012, 04:47 AM
Member
My Jeep: 2001 4.0L WJ

Join Date: Apr 2012
Posts: 36
Thanks: 0
Thanked 1 Time in 1 Post
Rep Power: 939
hellboar is on a distinguished road
Re: LEDs came today!

Between this and the cluster thread I see me spending some cash on many LEDs in my near future. Noticed the visor lights on page 3 or so, can anyone provide info on this bulb? My wjjeeps bulb printout has limited information about the stock bulb. Just trying to figure out replacement options, hope this thread is a relevant place to ask.
