Rear Brake Help!

Hey guys! I have a squeak coming from my driver's side rear wheel area. I just replaced the brake pads. I can hear two squeaks at once: one squeak goes with the revolutions of the tires that starts at 10 MPH and continues until the engine noise drones it out. The second squeak happens when the brakes are first applied, but quietens as the vehicle comes to a stop. This is driving me crazy! Please help me out. Thank you in advanced.
__________________

__________________
Reply With Quote
  #2
Old 01-19-2012, 06:42 PM
cheapjeep's Avatar
Amber Instigator
My Jeep: 1997 2.5L TJ

Join Date: Sep 2010
Location: Vintondale Pa.
Posts: 3,101
Thanks: 97
Thanked 68 Times in 64 Posts
Rep Power: 331897
cheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond repute
Garage
Re: Rear Brake Help!

Make sure you didn't bend that alignment spring that runs below the caliper and it is rubbing on the rotor.
__________________

__________________
Dave'04 Overland,I don't even remember what I did to it anymore.

Quote:
Originally Posted by TJXJWJ View Post
OK, fine...I'll admit...some amber lamps are good, and necessary.
Reply With Quote
  #3
Old 01-19-2012, 07:44 PM
Member
My Jeep: 2000 4.7L WJ

Join Date: Dec 2011
Location: Cedar Bluff, Alabama
Posts: 36
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 1035
janisonh is on a distinguished road
Re: Rear Brake Help!

What's that? I have no clue what to look for or what to do.
__________________
Reply With Quote
  #4
Old 01-19-2012, 09:19 PM
cheapjeep's Avatar
Amber Instigator
My Jeep: 1997 2.5L TJ

Join Date: Sep 2010
Location: Vintondale Pa.
Posts: 3,101
Thanks: 97
Thanked 68 Times in 64 Posts
Rep Power: 331897
cheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond repute
Garage
Re: Rear Brake Help!

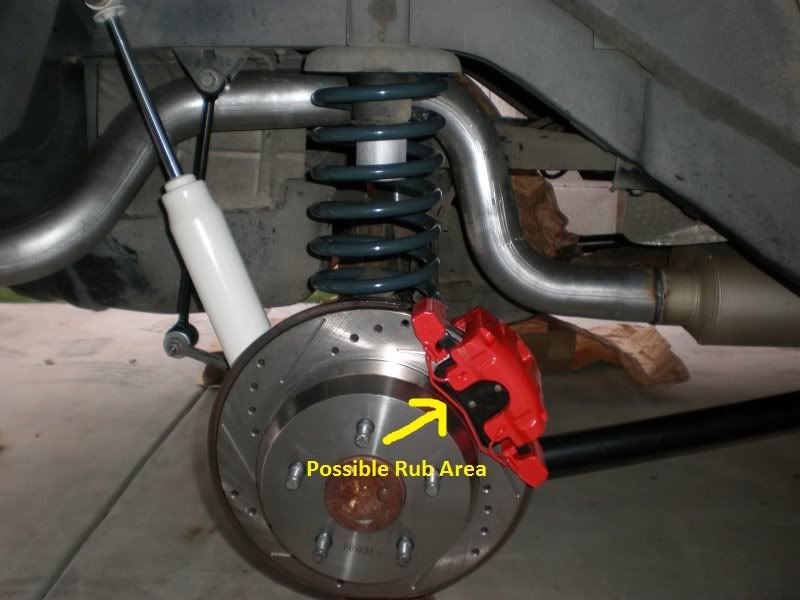

Sometimes this wire spring thing gets bent or misaligned and as you can see its very close to the rotor hat so it doesn't take much to make it rub.

__________________
Dave'04 Overland,I don't even remember what I did to it anymore.

Quote:
Originally Posted by TJXJWJ View Post
OK, fine...I'll admit...some amber lamps are good, and necessary.
Reply With Quote
  #5
Old 01-20-2012, 09:55 AM
Frango100's Avatar
Premium Member

My Jeep: 2004 4.7L WJ

Join Date: Dec 2009
Location: Brazil
Posts: 4,801
Thanks: 9
Thanked 75 Times in 70 Posts
Rep Power: 525731
Frango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond repute
Re: Rear Brake Help!

Did you also lubricate the caliper sliding pins when changing the pads? Dry pins will slow down or prevent the caliper from releasing properly and could cause some noises.
Does the sound change when applying the brakes?
__________________
Frank

JEEP Grand Cherokee 4.7 Lmtd 2004
HID 8000K in low and fog / Quad Squad member
Monroe Reflex shocks / Pirelli Scorpion ATR 245/65/17 - Transgo reprogramming shiftkit.

VW Beetle 2.0 TSI 2013
My new toy
Reply With Quote
  #6
Old 01-20-2012, 09:59 AM
Frango100's Avatar
Premium Member

My Jeep: 2004 4.7L WJ

Join Date: Dec 2009
Location: Brazil
Posts: 4,801
Thanks: 9
Thanked 75 Times in 70 Posts
Rep Power: 525731
Frango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond repute
Re: Rear Brake Help!

Quote:
Originally Posted by cheapjeep View Post
Sometimes this wire spring thing gets bent or misaligned and as you can see its very close to the rotor hat so it doesn't take much to make it rub.

He Dave, did you change your lower control arms? Where the bushings shot?
Im missing some GREEN in this picture...............
__________________
Frank

JEEP Grand Cherokee 4.7 Lmtd 2004
HID 8000K in low and fog / Quad Squad member
Monroe Reflex shocks / Pirelli Scorpion ATR 245/65/17 - Transgo reprogramming shiftkit.

VW Beetle 2.0 TSI 2013
My new toy
Reply With Quote
  #7
Old 01-20-2012, 11:44 AM
cheapjeep's Avatar
Amber Instigator
My Jeep: 1997 2.5L TJ

Join Date: Sep 2010
Location: Vintondale Pa.
Posts: 3,101
Thanks: 97
Thanked 68 Times in 64 Posts
Rep Power: 331897
cheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond repute
Garage
Re: Rear Brake Help!

Quote:
Originally Posted by Frango100 View Post
He Dave, did you change your lower control arms? Where the bushings shot?
Im missing some GREEN in this picture...............
No buddy that's not mine.It's the only pic I could that clearly shows that spring and to the OP also check the rotor splash shield. It is easy to accidentally bend it also while working on brakes.Frank I had to change the rear lowers on the '99 last year. I got the whole arms for a little more than the bushings. Do you need them?
__________________
Dave'04 Overland,I don't even remember what I did to it anymore.

Quote:
Originally Posted by TJXJWJ View Post
OK, fine...I'll admit...some amber lamps are good, and necessary.
Reply With Quote
  #8
Old 01-20-2012, 11:53 AM
cheapjeep's Avatar
Amber Instigator
My Jeep: 1997 2.5L TJ

Join Date: Sep 2010
Location: Vintondale Pa.
Posts: 3,101
Thanks: 97
Thanked 68 Times in 64 Posts
Rep Power: 331897
cheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond reputecheapjeep has a reputation beyond repute
Garage
Re: Rear Brake Help!

And yes Green still rocks! I found the rear control arm link.http://www.shopjeepparts.com/rear-lo...ee-p-9131.html Their prices are really good here and good service.
__________________
Dave'04 Overland,I don't even remember what I did to it anymore.

Quote:
Originally Posted by TJXJWJ View Post
OK, fine...I'll admit...some amber lamps are good, and necessary.
Reply With Quote
  #9
Old 01-20-2012, 01:41 PM
Frango100's Avatar
Premium Member

My Jeep: 2004 4.7L WJ

Join Date: Dec 2009
Location: Brazil
Posts: 4,801
Thanks: 9
Thanked 75 Times in 70 Posts
Rep Power: 525731
Frango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond repute
Re: Rear Brake Help!

Thanks Dave, but the bushings are still fine. I have to check the front suspension, because i feel that there is some play overthere. Not that strange, with all the potholes and millions of oversized speedbumps we have overhere
__________________
Frank

JEEP Grand Cherokee 4.7 Lmtd 2004
HID 8000K in low and fog / Quad Squad member
Monroe Reflex shocks / Pirelli Scorpion ATR 245/65/17 - Transgo reprogramming shiftkit.

VW Beetle 2.0 TSI 2013
My new toy
Reply With Quote
  #10
Old 01-20-2012, 06:18 PM
Member
My Jeep: 2000 4.7L WJ

Join Date: Dec 2011
Location: Cedar Bluff, Alabama
Posts: 36
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 1035
janisonh is on a distinguished road
Re: Rear Brake Help!

Which bolts need to be lubricated and with what? If that clip is bent, how do you reccoment keeping it from rubbing?
__________________
Reply With Quote
  #11
Old 01-20-2012, 08:42 PM
Frango100's Avatar
Premium Member

My Jeep: 2004 4.7L WJ

Join Date: Dec 2009
Location: Brazil
Posts: 4,801
Thanks: 9
Thanked 75 Times in 70 Posts
Rep Power: 525731
Frango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond reputeFrango100 has a reputation beyond repute
Re: Rear Brake Help!

At figure 19 you will see the 2 caliper sliding pins. These pins should be lubricated once in a while to keep the caliper free to slide without binding. A little high temperature grease will do, dont use too much that it will come out and foul the brake pads. This is also valid for the front caliper sliding pins.
Attached Files
File Type: pdf rear brake caliper.pdf (89.7 KB, 12 views)
__________________

__________________
Frank

JEEP Grand Cherokee 4.7 Lmtd 2004
HID 8000K in low and fog / Quad Squad member
Monroe Reflex shocks / Pirelli Scorpion ATR 245/65/17 - Transgo reprogramming shiftkit.

VW Beetle 2.0 TSI 2013
My new toy
