Re: WK 10" Enclosure Dimensions

Quote:
Originally Posted by LTrainGC View Post
My subs have a 6 1/8" mounting depth. Mounting hole needs to be 11 11/16". Overall diameter + the mounting ring is 12 11/16".

I think I'd just add like 1 or 1.25" to the top (red) and bottom (blue) pieces, and make the whole thing about 1.5" taller.

Looking up what kind of volume my subs need now.

Found it - recommended volume for a sealed box is .85 ft^3. Does that double with two subs?
Yeah, definitely watch out for mounting depth. The vent pole (on the back of the subs magnet) needs about 1-1.5 inches of breathing room.

Yes, volume doubles with adding another. You may want to consider extending the enclosure outwards, but then you'd have to account for the angle of the floor changing to flat (from incline) - that would kinda suck.

Quote:
Originally Posted by Chris View Post
about freakin damn time! LOL kidding..

Thanks for the info's Matt, I too am going to copy it exactly. You used MDF 3/4'' correct? How much do you recall it cost at home depot/lowes?

Maybe you could add some more info for us that are going to be first time box builders in the near future! Like.. what material is used to seal the seams on the inside, and what I am really interested in is about the install of the speaker wire terminals and the install of those. Can those be had from say, radio shack?
haha, no prob Chris!

Yes, I used 3/4 MDF - it's about 20-30 bucks for a sheet at the local hardware store. I think Lowes sells quarter sheets, so that may be easier for some to work with.

Yeah, I'll add some more info to the original post about consteruction for sure! I'll probably get to it tomorrow. I'll let ya know when it's been added.
__________________

__________________
Reply With Quote
  #14
Old 06-29-2009, 08:51 PM
LTrainGC's Avatar
Senior Member
My Jeep: 2013 5.7L WK2

Join Date: May 2009
Location: St. Petersburg, FL
Posts: 2,202
Thanks: 0
Thanked 4 Times in 4 Posts
Rep Power: 4246
LTrainGC has a reputation beyond reputeLTrainGC has a reputation beyond reputeLTrainGC has a reputation beyond reputeLTrainGC has a reputation beyond repute
Re: WK 10" Enclosure Dimensions

Do you happen to know the max height of the box without interfering with the cargo cover? Even if I have to ditch the cargo cover I'm not that concerned - that is how I'm rolling now.
__________________

__________________
2013 WK2 Overland HEMI 4x4
Bright White / New Saddle
Reply With Quote
  #15
Old 06-29-2009, 08:56 PM
Matt's Avatar
Senior Member
My Jeep: 2006 5.7L WK

Join Date: May 2009
Location: 34.076513,-118.429573
Posts: 9,269
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 11678
Matt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond repute
Re: WK 10" Enclosure Dimensions

Quote:
Originally Posted by LTrainGC View Post
Do you happen to know the max height of the box without interfering with the cargo cover? Even if I have to ditch the cargo cover I'm not that concerned - that is how I'm rolling now.
I want to say 13 inches max before 1/8" of carpeting.
__________________
Reply With Quote
  #16
Old 06-29-2009, 08:59 PM
LTrainGC's Avatar
Senior Member
My Jeep: 2013 5.7L WK2

Join Date: May 2009
Location: St. Petersburg, FL
Posts: 2,202
Thanks: 0
Thanked 4 Times in 4 Posts
Rep Power: 4246
LTrainGC has a reputation beyond reputeLTrainGC has a reputation beyond reputeLTrainGC has a reputation beyond reputeLTrainGC has a reputation beyond repute
Re: WK 10" Enclosure Dimensions

I'm gonna get to drawing tomorrow night with some graph paper... I'm thinking I'm gonna have to bring the box out to the edge of the cargo tray to have enough depth.
__________________
2013 WK2 Overland HEMI 4x4
Bright White / New Saddle
Reply With Quote
  #17
Old 06-29-2009, 09:02 PM
Matt's Avatar
Senior Member
My Jeep: 2006 5.7L WK

Join Date: May 2009
Location: 34.076513,-118.429573
Posts: 9,269
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 11678
Matt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond repute
Re: WK 10" Enclosure Dimensions

Quote:
Originally Posted by LTrainGC View Post
I'm gonna get to drawing tomorrow night with some graph paper... I'm thinking I'm gonna have to bring the box out to the edge of the cargo tray to have enough depth.

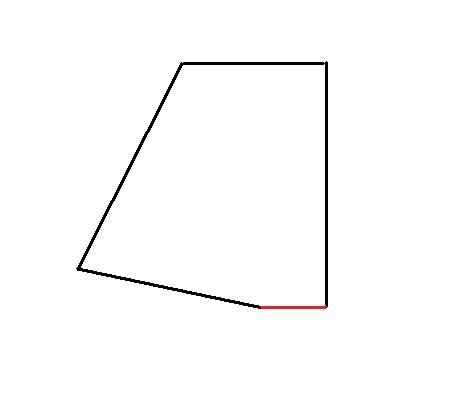

This is where you'll have to re-figure some of the calculations (see red line)
