LPG install on 5.7 Hemi / 06 Overland

When I decided to convert my GC 06 Overland to a dual fuel system, I found little information on the web and it was not always consistent and some claimed that the HEMI could not be converted. Anyway, I wanted to share my experience and impressions but bottom line up front is that the 5.7/6.1 HEMI can be converted with pretty much any Vapor Sequential Injection (VSI) system.

Few in the US will be familiar with LPG but it stands for Liquid Petroleum Gas and is a generic name for a mixture of propane and butane.
I did this conversion for purely economical reasons. I am based in Kosovo and travel frequently to the Former Yugoslav Republic of Macedonia, Serbia, Montenegro, Hungary and Greece. Gasoline is at about $6 /gallon while LPG is between $2.2 and $3.

I had a LPG system on my 96 Cherokee 4.0 and did not experience any mechanical or reliability issues with it. However, that was a carburator conversion and systems for that have been around since the sixties. You loose a lot of power and LPG consumption can be as much as 25% higher when compared to gasoline but it was dirt cheap and I got my investment back in no time.

For the 5.7 HEMI I used a VSI system. In short, you put a tank in the trunk or in lieu of the spare wheel and a fuel line brings the LPG, in its liquid form, to a reducer in which the fuel is warmed and changes to its gas form before being sent to a filter which feeds an LPG injector rail which distributes the LPG to the inlet manifold. There are a bunch a valves and tubing involved as well.

Here's a schematic of the complete system:
]


The point here is that the LPG is fed to the engine the same way as gasoline and the system has its own fuel mapping ECU which functions in a master-slave configuration with the car's system. In other words its a fully integrated system. This is supposed to ensure that there is no (or at least less) loss of power and that the consumption surplus while on LPG is closer than that of gasoline.

The way it works is that you have a switch to turn the system on and off. For all practical purposes you can leave the system on and never turn it off because the way it works is that the car starts on gasoline and once the engine reaches a certain temperature/cycle it switches automatically to LPG.
That is really about it for the system itself. It took three guys 7 hours to install.


I will eventually time some 0-60 but from a subjective standpoint I did not feel any difference. I took two friends, both car enthusiasts and V8 drivers for a run. We did the first test run on gasoline. I left the car on gasoline but told them that I had switched to LPG for comparison and we did the same run. Both claim to have noticed a slight drop in power. We did the run a third time where I switched to LPG but telling them that I put it back on gasoline. This time they claim to have noticed a slight increase in power.

I burn between 10 and 15 % more LPG than gasoline which brings me at anywhere between 18 – 20 liters (LPG)/ 100 Km depending on route and driving style . The system cost me EUR 1,600 installed and I will be making that money back in under a year.

Some pics now:


/IMG]

The cap next to the trailer hitch is the LPG filling outlet.



The tank. It has a capacity of 73 liters but these tanks cannot be filled over 80% capacity as a security measure so its 58 liters/ 15 gallons effective and that gives me roughly 300 Km/185 miles autonomy.

]

This would be the system switch. You got to make an effort to see it from the driver seat and its invisible to all passengers. The orange light tells me that the system is on, the green one that the car is on LPG and the red one that the LPG tank is almost empty.



You can see the system's ECO right next to the battery. Most of the components are on the top left (passenger) side of the engine bay.



On this one, you can see the two reducers. The first one at the forefront (with coper screw in middle) and the second one is less visible. Yes, this V-8 system works as a dual 4 cylinder one which is necessary on cars that have this kind of power output.


]

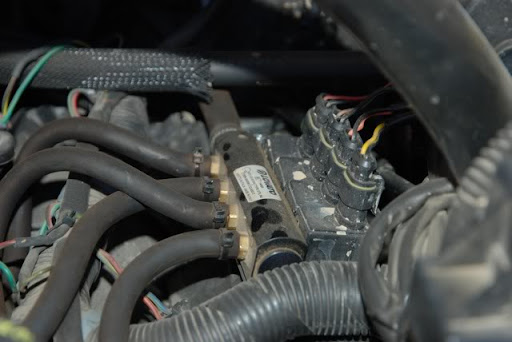

Here's the LPG injection rail.



And here you can see the LPG tubing feeding directly in the inlet manifold.
Attached Images
File Type: jpg LPG WK Install 1.jpg (94.6 KB, 4 views)
File Type: jpg LPG WK Install 2.jpg (35.2 KB, 1 views)
File Type: jpg LPG WK Install 3.jpg (57.9 KB, 1 views)
File Type: jpg LPG WK Install 4.jpg (22.9 KB, 1 views)
File Type: jpg LPG WK Install 5.jpg (81.5 KB, 1 views)
File Type: jpg LPG WK Install 6.jpg (61.4 KB, 2 views)
File Type: jpg LPG WK Install 7.jpg (41.6 KB, 1 views)
File Type: jpg LPG WK Install 8.jpg (86.9 KB, 2 views)
__________________

__________________
Reply With Quote
  #2
Old 10-18-2009, 06:08 PM
Robert Palmer's Avatar
Rock N' Roll's Sophisticate/JG Co-Founder


My Jeep: 2010 6.1L SRT8

Join Date: May 2009
Location: Downtown Manhattan
Posts: 10,265
Thanks: 9
Thanked 56 Times in 48 Posts
Rep Power: 112626
Robert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond repute
Re: LPG install on 5.7 Hemi / 06 Overland

Nice writeup!!!


Now clean that engine bay.
__________________

__________________
-Joe-



Silver
2010 Jeep Grand Cherokee SRT-8
Reply With Quote
  #3
Old 10-18-2009, 06:10 PM
Marlin's Avatar
"The Aussie"

My Jeep: 1981 5.7L CJ

Join Date: May 2009
Location: Licmye Bawlls
Posts: 9,362
Thanks: 65
Thanked 16 Times in 15 Posts
Rep Power: 80935
Marlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond repute
Re: LPG install on 5.7 Hemi / 06 Overland

Mate, absolutely superb writeup! You should be a journo!
As you know, I'm very familiar with LPG here in Australia as it's very common, all taxis and many private cars use the system.
No doubt your info will be of great interest to our US friends

And just so you know, you're getting a big bunch of + rep from me!
__________________
Reply With Quote
  #4
Old 10-18-2009, 08:14 PM
HEMIBeast's Avatar
Senior Member

Join Date: Sep 2009
Location: MA
Posts: 3,248
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 5229
HEMIBeast has a reputation beyond reputeHEMIBeast has a reputation beyond reputeHEMIBeast has a reputation beyond reputeHEMIBeast has a reputation beyond reputeHEMIBeast has a reputation beyond reputeHEMIBeast has a reputation beyond reputeHEMIBeast has a reputation beyond reputeHEMIBeast has a reputation beyond repute
Re: LPG install on 5.7 Hemi / 06 Overland

Quote:
Originally Posted by Elvis Presley View Post
Nice writeup!!!


Now clean that engine bay.

X2!!
__________________
JEEP GC Limited 5.7
[SIGPIC][/SIGPIC]
180°Tstat,Flyin Ryan ported throttle body,Bwoody CAI,MHP CMR Tune Predator 7137,Billet tech catch can,Dynomax muffler, AR Headers,5" blk tips,CF Rammedic Hood,SRT8 Exterior,SRT8 Rails,SRT8 Grille,Custom headlight covers,Tinted Tails (Red03SilSS),Tinted windows, painted mirror covers, Painted & Shaved door Molding,Mopar Rear spoiler,painted black calipers,Black housing headlights with LED Halo's & controller,8000K H.I.D,Reverse H.I.D,20" Black SRT8 rep wheels,Falken Ziex 275/45/20,Addco Front Sway bar,SRT8 Rear sway bar,H&R Springs,SRT8 shocks,Leather Armrest,SRT8 pedals,SRT8 Shift knob,Colored cupholder,2 pod A pillar w/ Gauges,etc..
Parts awaiting install Spartan Cam, 09 Intake manifold, etc.
Reply With Quote
  #5
Old 10-18-2009, 08:20 PM
Robert Palmer's Avatar
Rock N' Roll's Sophisticate/JG Co-Founder


My Jeep: 2010 6.1L SRT8

Join Date: May 2009
Location: Downtown Manhattan
Posts: 10,265
Thanks: 9
Thanked 56 Times in 48 Posts
Rep Power: 112626
Robert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond reputeRobert Palmer has a reputation beyond repute
Re: LPG install on 5.7 Hemi / 06 Overland

And the undercarriage too while you are at it.
__________________
-Joe-



Silver
2010 Jeep Grand Cherokee SRT-8
Reply With Quote
  #6
Old 10-18-2009, 08:24 PM
Marlin's Avatar
"The Aussie"

My Jeep: 1981 5.7L CJ

Join Date: May 2009
Location: Licmye Bawlls
Posts: 9,362
Thanks: 65
Thanked 16 Times in 15 Posts
Rep Power: 80935
Marlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond repute
Re: LPG install on 5.7 Hemi / 06 Overland

An interesting fact guys;

LPG actually has a MUCH higher octane rating than commercially available petroleum
It has been used to some success on high performance applications, but the limiting factor is usually the additional weight of an LPG system. 50lbs is alot for a race car, but NOT for a jeep.

LPG's octane is typically in the range of 110 to 112, and would be particulary useful if teamed with a high compression or forced induction engine..........
__________________
Reply With Quote
  #7
Old 10-19-2009, 12:58 AM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,749
Thanks: 825
Thanked 804 Times in 620 Posts
Rep Power: 7717315
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: LPG install on 5.7 Hemi / 06 Overland

yeah....yeah ....yeah...we know all about propane injection....wanker
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2013 JKU 10th anniversary-white
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #8
Old 10-19-2009, 01:59 AM
Marlin's Avatar
"The Aussie"

My Jeep: 1981 5.7L CJ

Join Date: May 2009
Location: Licmye Bawlls
Posts: 9,362
Thanks: 65
Thanked 16 Times in 15 Posts
Rep Power: 80935
Marlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond repute
Re: LPG install on 5.7 Hemi / 06 Overland

Nothin to do with propane injection cocksucker.
__________________
Reply With Quote
  #9
Old 10-19-2009, 02:22 AM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,749
Thanks: 825
Thanked 804 Times in 620 Posts
Rep Power: 7717315
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: LPG install on 5.7 Hemi / 06 Overland

propane injection on turboed vehicles....nuttsucker
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2013 JKU 10th anniversary-white
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #10
Old 10-19-2009, 02:26 AM
Marlin's Avatar
"The Aussie"

My Jeep: 1981 5.7L CJ

Join Date: May 2009
Location: Licmye Bawlls
Posts: 9,362
Thanks: 65
Thanked 16 Times in 15 Posts
Rep Power: 80935
Marlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond reputeMarlin has a reputation beyond repute
Re: LPG install on 5.7 Hemi / 06 Overland

Talk about goin off on a tangent! I'm talking about 100% LPGas fueled, NOT Propane injection you arse clown.
It's totally different.
Now get back into the kids section where you belong you massive-headed knuckle dragger.
__________________
Reply With Quote
  #11
Old 10-19-2009, 02:29 AM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,749
Thanks: 825
Thanked 804 Times in 620 Posts
Rep Power: 7717315
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: LPG install on 5.7 Hemi / 06 Overland

Quote:
Originally Posted by Marlin View Post
An interesting fact guys;

LPG's octane is typically in the range of 110 to 112, and would be particulary useful if teamed with a high compression or forced induction engine..........

ermmmm........
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2013 JKU 10th anniversary-white
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #12
Old 10-19-2009, 02:29 PM
rvtifer's Avatar
Member

Join Date: Sep 2009
Location: Kosovo
Posts: 593
Thanks: 0
Thanked 2 Times in 2 Posts
Rep Power: 2400
rvtifer has a reputation beyond reputervtifer has a reputation beyond reputervtifer has a reputation beyond repute
Re: LPG install on 5.7 Hemi / 06 Overland

Quote:
Originally Posted by Elvis Presley View Post
Nice writeup!!!

Now clean that engine bay.
Thanks and yeah, I was expecting to be told to go clean her up.


Quote:
Originally Posted by Elvis Presley View Post
And the undercarriage too while you are at it.
I know but its not easy to find a place to do it here and there is so, so much dust that the engine bay stays clean for no longer than a day's worth driving.

Quote:
Originally Posted by HEMIBeast View Post
X2!!
So any news about your predator ? Hope you get it up and running soon, its a blast and you will love it.
__________________
